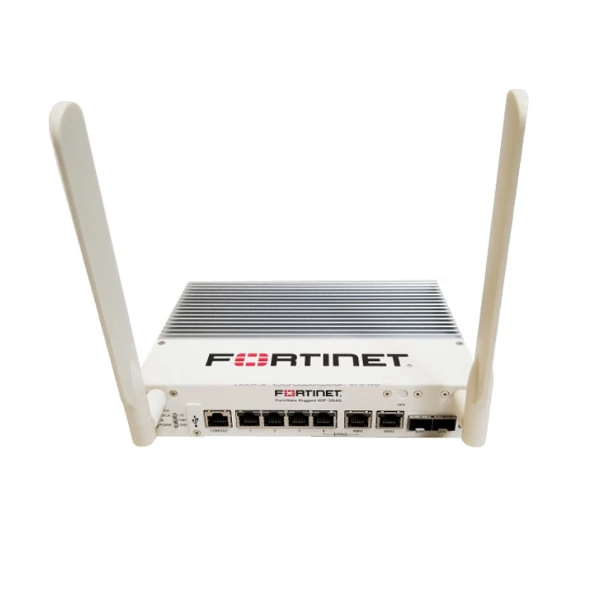

Fortinet FortiGate Rugged 60F-3G4G (FGR-60F-3G4G) – Thiết bị tường lửa
Liên hệ
- 4 x GE RJ45 Switch ports
- 2 x Shared Media pairs (Including 2 x GE RJ45 ports, 2 x SFP slots)
- 1x RJ45 by-pass can be set up between WAN1 and PORT4
- DB9 Serial, embedded 3G/4G/LTE wireless wan module
Mô tả
Thuộc Tính
Description
Fortinet FortiGate Rugged 60F-3G4G (FGR-60F-3G4G) là thiết bị tường lửa Ruggedized, 4 x GE RJ45 Switch ports, 2 x Shared Media pairs (Including 2 x GE RJ45 ports, 2 x SFP slots). 1x RJ45 by-pass can be set up between WAN1 and PORT4. DB9 Serial, embedded 3G/4G/LTE wireless wan module
Xem thêm: FortiGate_Rugged_Series_ Datasheet
Thông số kỹ thuật của Fortinet FortiGate Rugged 60F-3G4G (FGR-60F-3G4G) – Thiết bị tường lửa

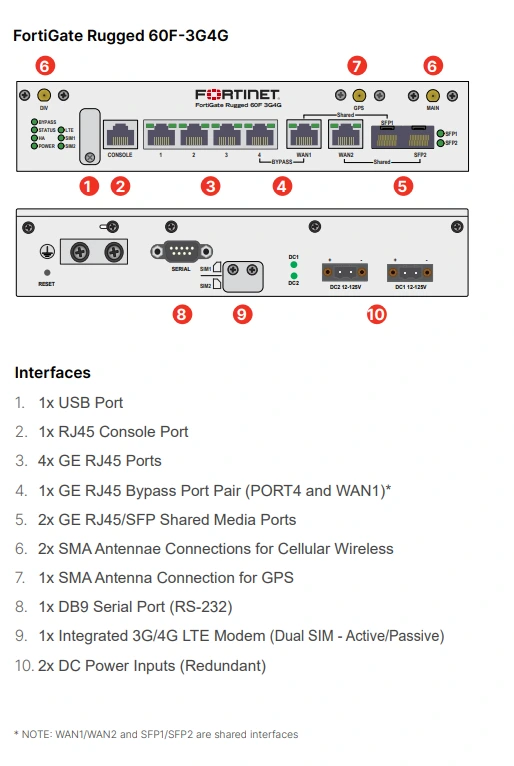

| Interfaces and Modules | ||
| GE RJ45 Interfaces | 4 | |
| Bypass GE RJ45 Port Pair | 1 | |
| GE RJ45/SFP Shared Media Pairs | 2 | |
| DB9 Serial Interface | 1 | |
| USB (Client / Server) | 1 | |
| RJ45 Console Port | 1 | |
| Cellular Modem | 3G4G / LTE | |
| System Performance and Capacity | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 6/6/5.95 Gbps | |
| Firewall Latency (64 byte UDP) | 3.10 μs | |
| Firewall Throughput (Packets Per Second) | 8.9 Mpps | |
| Concurrent Sessions (TCP) | 600,000 | |
| New Sessions/Second (TCP) | 19,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 3.5 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 500 | |
| SSL-VPN Throughput | 400 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum) | 100 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 460 Mbps | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 70,000 | |
| Application Control Throughput (HTTP 64K) | 1.3 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches | 16 | |
| Maximum Number of FortiAPs (Total / Tunnel) | 30 / 10 | |
| Maximum Number of FortiTokens | 500 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 950 Mbps | |
| NGFW Throughput | 550 Mbps | |
| Threat Protection Throughput | 500 Mbps | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.68 x 8.50 x 6.50 | |
| Height x Width x Length (mm) | 42.7 x 216 x 165 | |
| Form Factor | Desktop/DIN/Wall Mount | |
| Weight | 3.85 lbs (1.75 kg) | |
| IP Rating | IP20 | |
| Power Supply | Terminal block, supports negative (+12V to +125V DC) and positive ground (-12V to -125V DC) sources, cables are not included. | |
| Power Consumption (Average / Maximum) | 17 W / 24W | |
| Maximum Current | 12V DC / 2A | |
| Heat Dissipation | 82 BTU/h | |
| Operating Environment and Certifications | ||
| Operating Temperature | --40–167°F (-40–75°C) | |
| Storage Temperature | -40–167°F (-40–75°C) | |
| Humidity | 20–90% non-condensing | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB | |
| Industry Certifications | IEC 61850-3 and IEEE 1613 Certified | |
