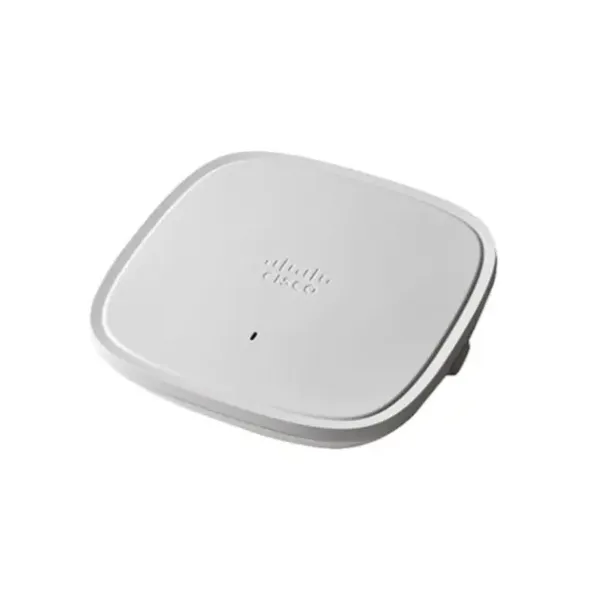

Cisco C9105AXI-EWC-S – Bộ phát Wifi

Model

C9105AXI-EWC-S

Description

- Cisco Catalyst 9105AX Access Point: Indoor environments, with internal antennas, Embedded Wireless Controller

Software

- Cisco Unified Wireless Network Software Release 8.10.MR3 or later
- Cisco IOS® XE Software Release 17.3.1, or later

Supported wireless LAN controllers

- Cisco Catalyst 9800 Series Wireless Controllers
- Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities

- 2x2 MIMO with two spatial streams
- Maximal Ratio Combining (MRC)
- 802.11n and 802.11a/g
- 20- and 40-MHz channels
- PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
- Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
- 802.11 Dynamic Frequency Selection (DFS)
- Cyclic Shift Diversity (CSD) support

802.11ac

- 2x2 downlink MU-MIMO with two spatial streams
- MRC
- 802.11ac beamforming
- 20-, 40-, 80- MHz channels
- PHY data rates up to 866.7 Mbps (80 MHz with 5GHz)
- Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 DFS
- CSD support
- WPA3 support

802.11ax

- 2x2 uplink/downlink MU-MIMO with two spatial streams
- Uplink/downlink OFDMA
- TWT
- BSS coloring
- MRC
- 802.11ax beamforming
- 20-, 40-, 80- channels
- PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz)
- Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 DFS
- CSD support
- WPA3 support

Integrated antenna

- 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
- 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth

Interfaces

- 1 x 10/100/1000 Base-T (Ethernet) Uplink Interface
- Management console port (RJ-45)

Indicators

- Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

- Access point (without mounting brackets): 150 x 150 x 30 mm

Weight

- 329.5g

Input power requirements

- 802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE®)
- Cisco power injector, AIR-PWRINJ6=
- 802.3af PoE
- Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Environmental

- Non operating (storage) temperature: -30° to 70°C
- Non operating (storage) altitude test: 25˚C, 4600 m
- Operating temperature: 0° to 50°C
- Operating humidity: 10% to 90% (noncondensing)
- Operating altitude test: 40˚C, 3000 m
Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 2x2 to 1x1 on the 2.4 GHz radio.

Available transmitpower settings (Max/Min)

- 2.4 GHz
 ◦ 20 dBm (100 mW)
 ◦ -7 dBm (0.2 mW)

- 5 GHz
 ◦ 20 dBm (100 mW)
 ◦ -7 dBm (0.2 mW)
