Camera Logitech ConferenceCam CC3000e

Hệ thống yêu cầu

• Windows 7 or 8 (Note: Win 7 today would be HD through MJPG. Driver for H.264 is TBD)
• Mac OS X 10.7 or higher
• Google Chromebook version 29.0.1547.70, Platform 4319.79.0
• With:
  • 2.4 GHz Intel® Core 2 Duo processor
  • 2 GB RAM or more
  • Hard drive space for recorded videos
  • USB 2.0 port (USB 3.0 ready)
• Note: For Full HD Support, please check with your software application provider for system requirements.

Learn more about best practices for use with software clients.

Drivers/Software Downloads

Microsoft® Lync™ 2013: Control of remote camera
Skype: Call answer/end/flash, caller ID
Cisco Jabber™: Call answer/end/ flash, caller ID
Other: Diagnostic tool (if needed)
Firmware upgradeable software (when and if needed)Select the applicable product to download software on our support site.

Application Compatibility

UVC/plug and play compatible across all other apps

Certifications

Microsoft® Lync™ 2013, Cisco Jabber™, WebEx®, Skype™

Thông tin bảo hành

2-year limited hardware warranty

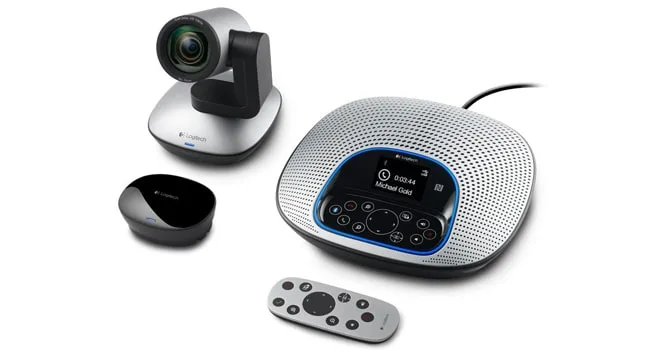

Phụ kiện kèm theo

• Speakerphone
• Camera
• Remote control
• Powered hub
• Wall/table mount
• Two 16-foot cables for speakerphone/hub and camera/hub connection
• USB cable for hub/PC connection
• Adhesive solution for hub mounting
• Power adapter
• Quick-start guide

Part Number

• PN 960-000982

Tính năng đặc biệt

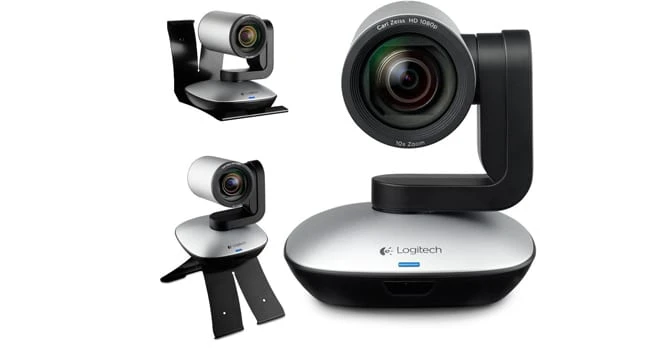

Camera

• Smooth motorized pan, tilt and zoom, controlled from remote or console
• 260° pan, 130° tilt
• 10X lossless zoom
• 90° field of view
• Full HD 1080p 30fps
• H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Camera “Home” preset key
• Far-end control (PTZ) of ConferenceCam products
• ZEISS® optics with autofocus
• Kensington security slot
• LED to confirm video streaming
• Standard tripod thread

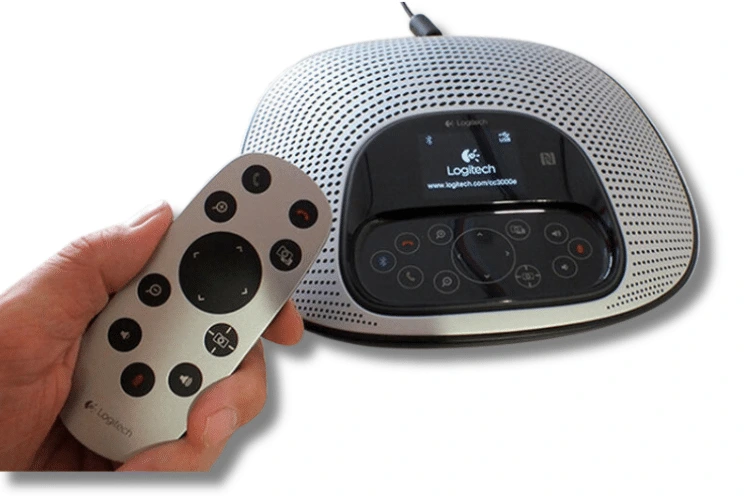

Loa

• Integrated full duplex speakerphone with echo and noise cancellation
• Supports stereo or mono PC audio
• Bluetooth® and NFC enabled
• LCD for caller ID, call duration and other functional response
• LEDs for speakerphone streaming, mute, hold, and Bluetooth®
• Touch controls for call answer/end, volume and mute, Bluetooth® pairing – plus camera PTZ, “home” preset and far-end control
• Microphones (Tx)
  • Two omni-directional microphones supporting 20-foot diameter range
  • Frequency response: 100Hz – 7.75KHz
  • Sensitivity: -28dB +/-3dB
  • Distortion: <1% @ 1KHz at 65dB
• Speakers (Rx)
  • Frequency response: 120Hz – 10KHz
  • Sensitivity: 83dBSPL +/-3dB at 1W/1M
  • Max output: 95dBSPL
  • Distortion: <5% from 200Hz
• Kensington security slot

Remote Control

• Dockable
• 10-foot range

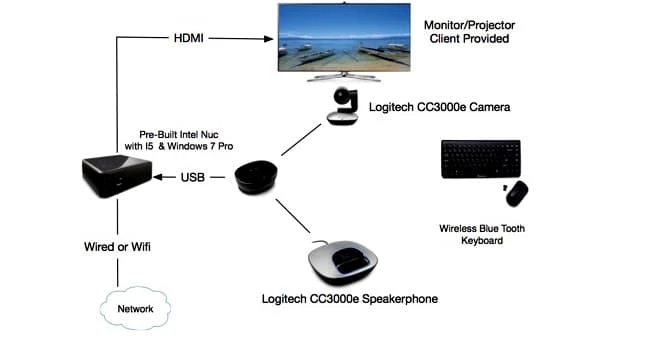

Hub/Cables

• Central mountable hub for connection of all components
• Included adhesive solution for under-table mounting
• Two 16-foot cables for connection between hub and camera/speakerphone
• One 10-foot USB cable for connection to PC/Mac
• AC Power adapter

Mount

• Dual purpose mount for wall placement or for elevating camera on table

Compliance and Tools

• USB 2.0 compliant
• UVC-compliant video and audio for broad application compatibility
• Optimized for Microsoft® Lync™ 2013, Cisco Jabber™ and WebEx® compatible, Skype™ certified
• Downloadable diagnostic tool
• Field upgradeable firmware tool
• Downloadable app plug-ins for advanced feature support

Product Dimensions

Camera

Width: 5.12 in (130 mm)
Height: 5.12 in (130 mm)
Depth: 5.91 in (150 mm)

Speakerphone

Width: 9.45 in x (240 mm)
Height: 9.45 in (240 mm)
Depth: 2.68 in (68 mm)

Hub

Width: 3.74 in (95 mm)
Height: 2.91 in (74 mm)
Depth: 1.34 in (34 mm)

Remote

Width: 1.97 in (50 mm)
Height: 4.72 in (120 mm)
Depth: 0.36 in (9.8 mm)

Wall/Table Mount

Width: 8.27 in (210 mm)
Height: 4.72 in (120 mm)
Depth: 3.90 in (99 mm)

Trọng lượng



Camera

20.81 oz (590 g)

Speakerphone

28.57 oz (810 g)

Hub

1.76 oz (50 g)

Remote

1.69 oz (48 g)

Wall/Table Mount

8.99 oz (255 g)
