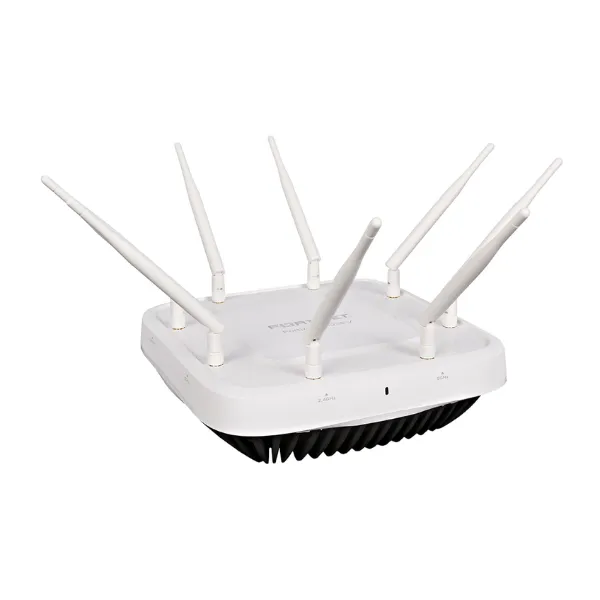

Fortinet FortiAP U423EV (FAP-U423EV) – Bộ phát wifi
Liên hệ
- 802.11ac Wave 2
- Đài phát thanh kép 2,4 & 5 GHz
- 8 ăng-ten bên ngoài
- 4×4 MU-MIMO
- Lên tới 600 Mbps + 3.466 Mbps
Mô tả
Thuộc Tính
Description
Fortinet FortiAP U423EV (FAP-U423EV) là Bộ phát wifi không dây trong nhà đa năng với 2 x cổng GE RJ45, 802.11 a/b/g/n/ac WAVE 2, băng tần kép đồng thời (2.4GHz/5GHz), 4×4 MIMO, ăng-ten bên ngoài. Sản phẩm có bộ giá treo trần/tường đi kèm.
- 802.11ac Wave 2 | Đài phát thanh kép 2,4 & 5 GHz | 8 ăng-ten bên ngoài
- 4×4 MU-MIMO | Lên tới 600 Mbps + 3.466 Mbps
Xem thêm:FortiAP_U_Series datasheet
Thông số kỹ thuật của Fortinet FortiAP U423EV (FAP-U423EV) – Bộ phát wifi
| Hardware | |
| Hardware Type | Indoor Universal AP |
| Number of Radios | 2 |
| Number of Antennas | 8 RP-SMA External and 1 Bluetooth/BLE Internal |
| Peak Antenna Gain | 3 dBi for 2.4 GHz, 3 dBi for 5 GHz |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Frequency of Radio 1 | 2.4 GHz b/g/n 20/40 MHz (64 QAM) |
| Frequency of Radio 2 | 5 GHz a/n/ac 20/40/80/160 MHz (256 QAM) MU-MIMO 3 simultaneous devices |
| Maximum Data Rate | Radio 1: up to 600 Mbps |
| Radio 2: up to 1,733 Mbps | |
| Tx/Rx Streams | 4x4 MIMO 4 spatial stream |
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
| Ethernet Ports | 2x GE RJ45 |
| USB Port | 1x Type A |
| Serial Console Port | 1 RS-232 x RJ45 |
| Power over Ethernet (PoE) | Dual redundant PoE power ports with support for IEEE 802.3at (2x2 @ 17 dBm with 802.3af; USB disabled) |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power | 2.4 GHz: 28 dBm / 630 mW (4 chains combined) |
| 5 GHz: 26 dBm / 398 mW (4 chains combined) | |
| Physical Security | Kensington Lock |
| IEEE Specifications | 802.11a, 802.11ac, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.3at, 802.3az |
| Wireless Mesh Capable | Yes |
| FortiPresence Capable | Yes |
| Modes of Operation | WLC 8.2 (min.), FortiGate, (FortiCloud – Future) |
| SSID Types Supported | Local-Bridge, Tunnel & Mesh (when managed by FortiGate) |
| FortiDeploy and FortiCloud Key | Yes |
| Per Radio Client Capacity | Up to 256 |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| 802.11ac MU-MIMO Wave 2 | Yes |
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| WME Multimedia Extensions | Yes (4 priority queues for voice, video, data and background traffic) |
| Wireless Monitoring Capabilities | |
| Frequencies scanned | 2.4 and 5 GHz |
| Background scan with client access on 2.4 and 5 GHz | Yes |
| Full-time scan as dedicated monitor | Yes |
| Packet sniffer mode | Yes |
| Spectrum analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 8.46 x 8.46 x 2.2 inches (215 x 215 x 56 mm) |
| Weight | 3.4 lb (1.53 kg) |
| Package (shipping) Weight | 5.36 lb (2.43 kg) |
| Mounting Options | Ceiling, T-Rail and Wall |
| Included Accessories | Ceiling, T-Rail and wall mount kit and 8 dipole antennas (AC power adapter sold separately) |
| Environment | |
| Power Supply | Adapter input: 100–240V, 50/60Hz, 0.9A Maximum output: 12V DC, 3A |
| Power Consumption (Average / Maximum) | 24.5 W max power draw in 802.3at mode and 12.5 W max power draw when supplied with 802.3af mode (operates in 2x2 mode) |
