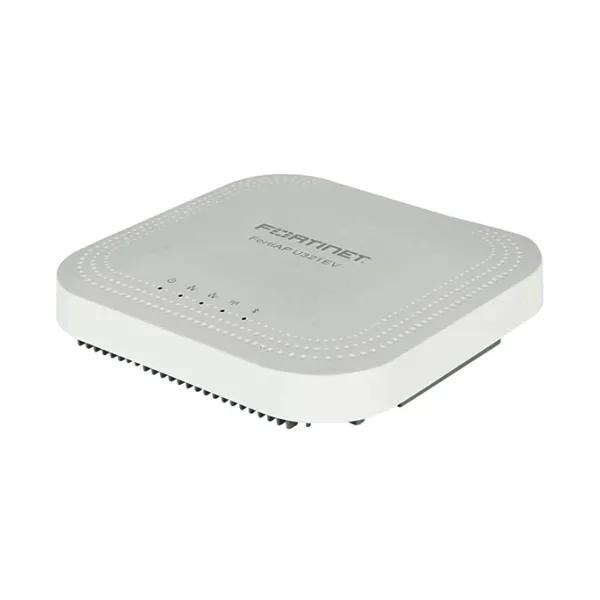

Fortinet FortiAP U321EV (FAP-U321EV) – Bộ phát wifi
Liên hệ
- 802.11ac Wade 2
- Đài phát thanh kép 2,4 & 5 GHz
- 6 Ăng-ten bên trong
- 3×3 MU-MIMO
- Lên tới 450 Mbps + 2.600 Mbps
Mô tả
Thuộc Tính
Description
Fortinet FortiAP U321EV (FAP-U321EV) là bộ phát wifi hỗ trợ chuẩn 802.11ac Wave 2 mới nhất, với tốc độ dữ liệu tối đa lên tới 2,6 Gbps. Các tính năng bổ sung bao gồm định dạng chùm truyền rõ ràng 802.11ac (TxBF), đài BLE tích hợp MU-MIMO cho các dịch vụ định vị và hơn thế nữa
- 802.11ac Wade 2 | Đài phát thanh kép 2,4 & 5 GHz | 6 Ăng-ten bên trong
- 3×3 MU-MIMO | Lên tới 450 Mbps + 2.600 Mbps
Xem thêm: FortiAP_U_Series datasheet
Thông số kỹ thuật của Fortinet FortiAP U321EV (FAP-U321EV) – Bộ phát wifi
| Hardware | |
| Hardware Type | Indoor Universal AP |
| Number of Radios | 2 |
| Number of Antennas | 6 Internal plus 1 Bluetooth |
| Peak Antenna Gain | 4.5 dBi for 2.4 GHz, 6.5 dBi for 5 GHz with 30 degree downtilt for ceiling mount |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Frequency of Radio 1 | 2.4 GHz b/g/n (3x3:3 stream) 20/40 MHz (64 QAM) |
| Frequency of Radio 2 | 5 GHz a/n/ac (3x3:3 stream) 20/40/80 MHz (256 QAM) MU-MIMO 2 simultanous devices |
| Maximum Data Rate | Radio 1: up to 450 Mbps Radio 2: up to 1,300 Mbps |
| Tx/Rx Streams | 3x3 MIMO 3 spatial stream |
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
| Ethernet Ports | 2x GE RJ45 |
| USB Port | 1x Type A |
| Serial Console Port | 1 RS-232 x RJ45 |
| Power over Ethernet (PoE) | Dual redundant PoE power ports with support for IEEE 802.3at |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power | 2.4 GHz: 26 dBm / 398 mW (3 chains combined) |
| 5 GHz: 24 dBm / 250 mW (3 chains combined) | |
| Physical Security | Kensington Lock |
| IEEE Specifications | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.11ac, 802.3at, 802.3az, 802.3ad |
| Wireless Mesh Capable | Yes |
| FortiPresence Capable | Yes |
| Modes of Operation | WLC 8.3.3 (min.), FortiGate, (FortiCloud – Future) |
| SSID Types Supported | Local-Bridge, Tunnel & Mesh (when managed by FortiGate) |
| FortiDeploy and FortiCloud Key | Yes |
| Per Radio Client Capacity | Up to 256 |
| LED Off Mode | Yes |
| Advanced 802.11 Features | |
| 802.11ac MU-MIMO Wave 2 | Yes |
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| WME Multimedia Extensions | Yes (4 priority queues for voice, video, data and background traffic) |
| Wireless Monitoring Capabilities | |
| Frequencies scanned | 2.4 and 5 GHz |
| Background scan with client access on 2.4 and 5 GHz | Yes |
| Full-time scan as dedicated monitor | Yes |
| Packet sniffer mode | Yes |
| Spectrum analyzer | Yes |
| Dimensions | |
| Length x Width x Height | 8.58 x 8.58 x 1.69 inches (218 x 218 x 43 mm) |
| Weight | 2.24 lb (1016.5 g) |
| Package (shipping) Weight | 3.73 lb (1694 g) |
| Mounting Options | Wall, T-Rail & Ceiling Mounting |
| Included Accessories | Ceiling, T-Rail and wall mount kit (AC power adapter sold separately) |
| Environment | |
| Power Supply | Adapter input: 100–240V, 50/60Hz, 0.9A Maximum output: 12V DC, 3A |
| Power Consumption (Average / Maximum) | 15 W when supplied by 802.3at power and 12.8 W when supplied with 802.3af power (TX power limited to 20 dBm) |
