Mã sản phẩm |

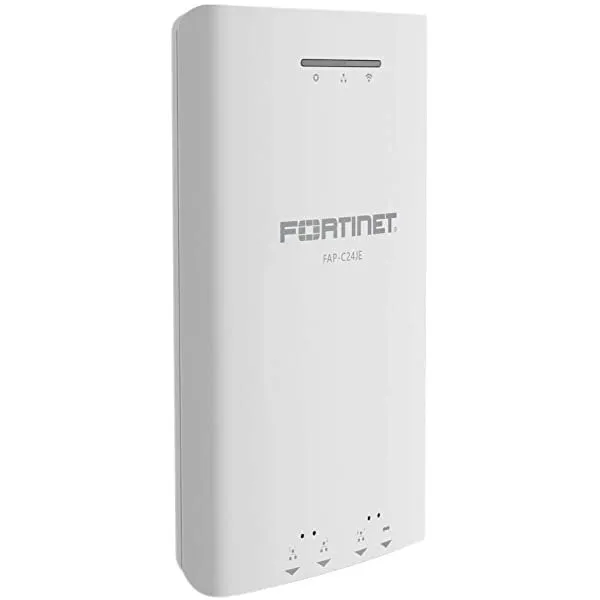

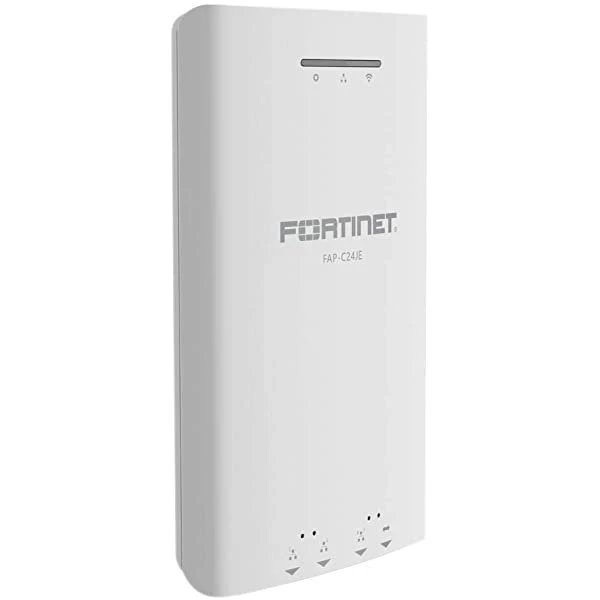

FAP-C24JE |
Hardware |
Hardware Type |
Indoor Wall Plate AP |
Number of Radios |
2 |
Number of Antennas |
4 internal |
Peak Antenna Gain |
1.5 dBi for 2.4 GHz, 2 dBi for 5 GHz |
Frequency Bands (GHz) |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
Frequency of Radio 1 |
2.4 GHz b/g/n (2x2:2 stream) 20/40 Mhz (256 QAM) |
Frequency of Radio 2 |
5 GHz a/n/ac (2x2:2 stream) 20/40/80/160 MHz (256 QAM) |
Maximum Data Rate |
Radio 1: up to 300 Mbps, Radio 2: up to 867 Mbps |
Interfaces |
6x 10/100/1000 Base-T RJ45 Ports (1x 802.3at PoE (PD),
1x 802.3af PoE (PSE), 2x Non-PoE Ports, 1x Pass-through in,
1x Pass-through out, 1x RS-232 RJ45 Serial Port |
Serial Console Port |
1x RJ45 RS232 |
Power over Ethernet (PoE) |
1x PoE RJ45 port
If powered by 802.3af (15.4 W) Max PSE Output = 4 W
If powered by 802.3at (25.5 W) Max PSE Output = 15.4 W |
Simultaneous SSIDs |
16 capable |
EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
User/Device Authentication |
WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist |
Maximum Tx Power |
20 dBm (100 mW)* |
Physical Security |
No |
IEEE Specifications |
802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.11ac, 802.3at, 802.3az |
Support Local-Authentication SSID using Open or WPA2-Personal Security |
Yes |
Support 64-digit Hexadecimal Passphrase for WPA2-Personal Security |
Yes |
Support Captive-portal SSID |
Yes |
Support Local-Standalone SSID when Managed by FortiCloud (in Bridge mode only) |
Yes |
FortiPresence Capable |
No |
Wireless Mesh Capable |
No |
Management Systems |
FortiGate or FortiCloud |
SSID Types Supported |
Local-Bridge, Tunnel |
FortiDeploy & FortiCloud Key |
Yes |
Per Radio Client Capacity |
Up to 64 |
LED Off Mode |
Yes |
Advanced 802.11 Features |
802.11ac Wave 2 MU-MIMO |
Yes |
Transmit Beam Forming (TxBF) |
Yes |
Low-Density Parity Check (LDPC) Encoding |
Yes |
Maximum Ratio Combining (MRC) |
Yes |
A-MPDU and A-MSDU Packet Aggregation |
Yes |
MIMO Power Save |
Yes |
Short Guard Interval |
Yes |
Wireless Monitoring Capabilities |
Frequencies Scanned |
N/A |
Background Scan with Client Access on 2.4 and 5 GHz |
No |
Full-time Scan as Dedicated Monitor |
No |
Full-time scan with client access |
No |
Packet sniffer mode |
No |
Spectrum analyzer |
No |
Dimensions |
Diameter x Height |
6.69 x 4.04 x 1.08 inches (AP size)
170 x 102.5 x 27.5 mm (AP size) |
Weight |
1.3 lb (0.6 kg) |
Package (shipping) Weight |
1.6 lb (0.74 kg) |
Mounting Options |
Wall |
Included Accessories |
Wall mount bracket |
Environment |
Power Supply |
PoE 802.3af (15.4 W)
Option: 12V/2A AC adapter (not provided) |
Humidity |
5–90% non condensing |
Operating Temperature |
32–104°F (0–40°C) |
Storage Temperature |
-4–158°F (-20–70°C) |
Directives |
Low Voltage Directive • RoHS |
UL2043 Plenum Material |
No |
Mean Time Between Failures |
>10 Years |
UL2043 Plenum Material |
N/A |
Certifications |
SRRC (China) |
Yes |
Warranty |
Limited Lifetime Warranty |
Yes |
