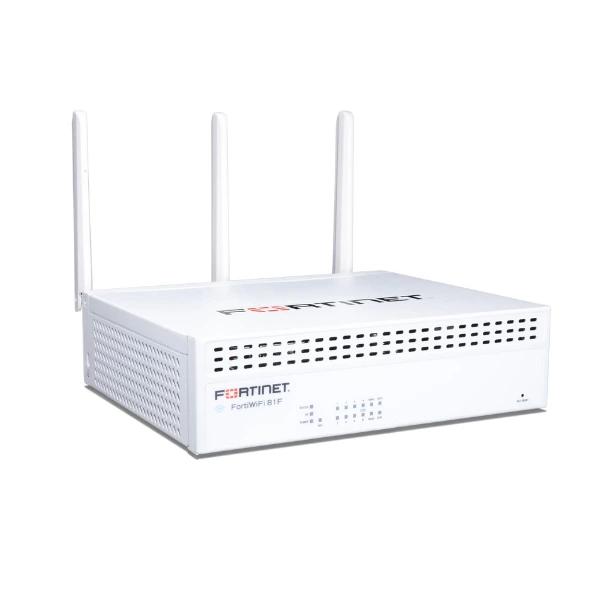

Fortinet FortiWiFi 81F-2R (FWF-81F-2R) – Thiết bị tường lửa
Liên hệ
- Firewall Throughput: 10.0 Gbps
- SSL VPN Throughput: 950 Mbps
- Max Concurrent Connections: 1.5M
- Max WiFi Speed: 1.2Gbps @5Ghz

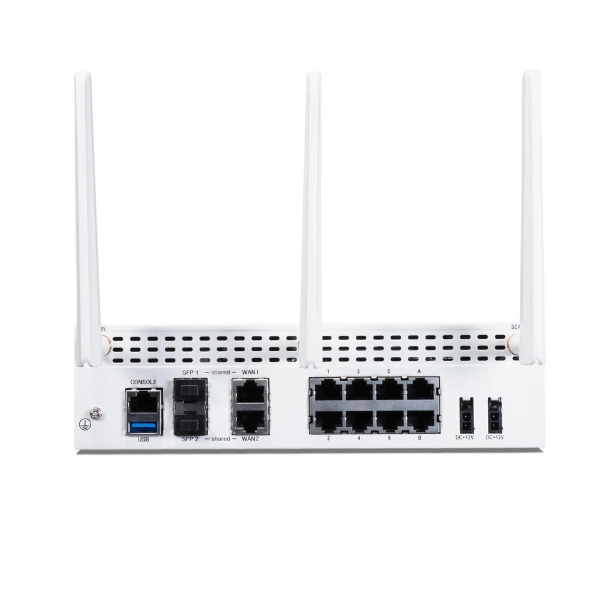

- Hardware: 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports, dual WiFi radio, 128GB SSD
Mô tả
Thuộc Tính
Description
Fortinet FortiWiFi 81F-2R (FWF-81F-2R) là thiết bị tường lửa với
- Firewall Throughput: 10.0 Gbps
- SSL VPN Throughput: 950 Mbps
- Max Concurrent Connections: 1.5M
- Max WiFi Speed: 1.2Gbps @5Ghz
Hardware: 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports, dual WiFi radio, 128GB SSD
Xem thêm: Fortigate Fortiwifi 80F Series Datasheet
Thông số kỹ thuật của Fortinet FortiWiFi 81F-2R (FWF-81F-2R) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Internal Ports | 6 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| GE RJ45 PoE/+ Ports | - |
| GE RJ45 PoE/+ FortiLink Ports (Default) | - |
| Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration) | - |
| Wireless Interface | Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio |
| USB Ports 3.0 | 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| Radio Specifications | 1x 128 GB SSD |
| Multiple User (MU) MIMO | 2x2 |
| Maximum Wi-Fi Speeds | 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz |
| Maximum Tx Power | 23 dBm @ 2.4 GHz, 22 dBm @ 5 GHz |
| Antenna Gain | 4.5dBi @ 2.4Ghz, 5.5dBi @ 5GHz |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/7 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, HTTP) | 715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 100,000 |
| Application Control Throughput (HTTP 64K) | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 2.4 x 8.5 x 7.0 |
| Height x Width x Length (mm) | 60 x 216 x 178 |
| Weight | 3.3 lbs (1.5 kg) |
| Form Factor | Desktop / Wall Mount / Rack Tray |
| Operating Environment and Certifications | |
| Input Rating | 12V DC, 5A (dual redundancy optional) |
| Power Required (Redundancy Optional) |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Maximum Current | 115VAC/0.42A, 230VAC/0.21A |
| Total Available PoE Power Budget | - |
| Power Consumption (Average / Maximum) | 24.79 W / 30.29 W |
| Heat Dissipation | 103.29 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 24.14 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
