Fortinet FortiWifi 61F (FWF-61F) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng 11-60 người dùng
- Threat Protection Throughput: 700 Mbps
- Site-to-Site VPN Tunnels: 200
- 700,000 phiên đồng thời
- Internal Storage: 1x 128 GB SSD
- Có phần cứng Wifi (802.11 a/b/g/n/ac-W2)
Mô tả
Thuộc Tính
Description
Fortinet FortiWifi 61F (FWF-61F) là thiết bị tường lửa dành cho mạng 11-60 người dùng với Threat Protection Throughput: 700 Mbps, Site-to-Site VPN Tunnels: 200, 700,000 phiên đồng thời và Internal Storage: 1x 128 GB SSD

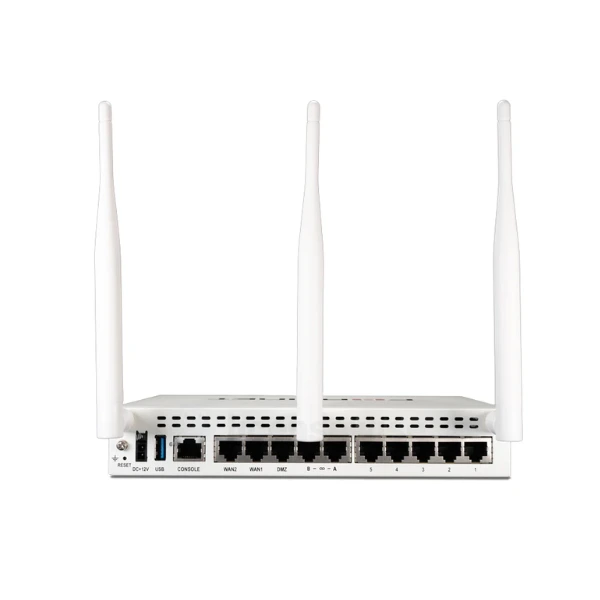

Phần cứng: 10 cổng GE RJ45 (bao gồm 7x Cổng trong, 2x Cổng WAN, 1x Cổng DMZ), Wifi (802.11 a/b/g/n/ac-W2), bộ nhớ trong SSD 128GB
Xem thêm: fortigate-fortiwifi-60f-series-datasheet
Thông số kỹ thuật của Fortinet FortiWifi 61F (FWF-61F) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45 WAN / DMZ Ports | 2 / 1 |
| GE RJ45 Internal Ports | 5 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| Wireless Interface | Single Radio (2.4GHz/5GHz) 802.11 a/b/g/n/ac-W2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 1 x 128 GB SSD |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
| Firewall Latency (64 byte, UDP) | 3.3 μs |
| Firewall Throughput (Packet per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Sec (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users | 200 |
| SSL Inspection Throughput (IPS, HTTP) | 630 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput | 1.8 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 38.5 x 216 x 160 mm |
| Weight | 2.23 lbs (1.01 kg) |
| Form Factor | Desktop |
| Radio Specifications | |
| Multiple User (MU) MIMO | 3x3 |
| Maximum Wi-Fi Speeds | 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz |
| Maximum Tx Power | 20 dBm |
| Antenna Gain | 3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz |
| Operating Environment and Certifications | |
| Power Rating | 12Vdc, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
| Maximum Current | 100Vac/1.0A 240Vac/0.6A |
| Power Consumption (Average / Maximum) | 17.5 W / 19.0 W |
| Heat Dissipation | 64.8 BTU/hr |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
