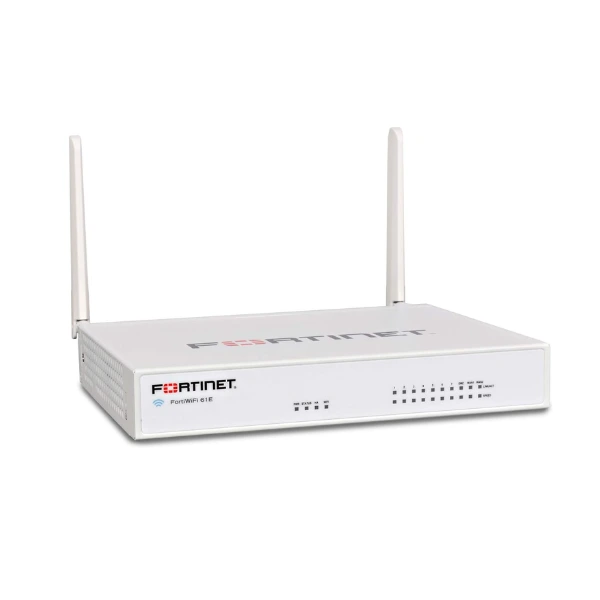

Fortinet FortiWifi 61E (FWF-61E) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng 11-60 người dùng
- Threat Protection Throughput: 200 Mbps
- Site-to-Site VPN Tunnels: 100
- 1.3 triệu phiên đồng thời
- Internal Storage: 1x 128 GB SSD
- Có Wifi (802.11a/b/g/n/ac)
Mô tả
Thuộc Tính
Description
Fortinet FortiWifi 61E (FWF-61E) là thiết bị tường lửa dành cho mạng 11-60 người dùng với Threat Protection Throughput: 200 Mbps, Site-to-Site VPN Tunnels: 100, 1.3 triệu phiên đồng thời và Internal Storage: 1x 128 GB SSD

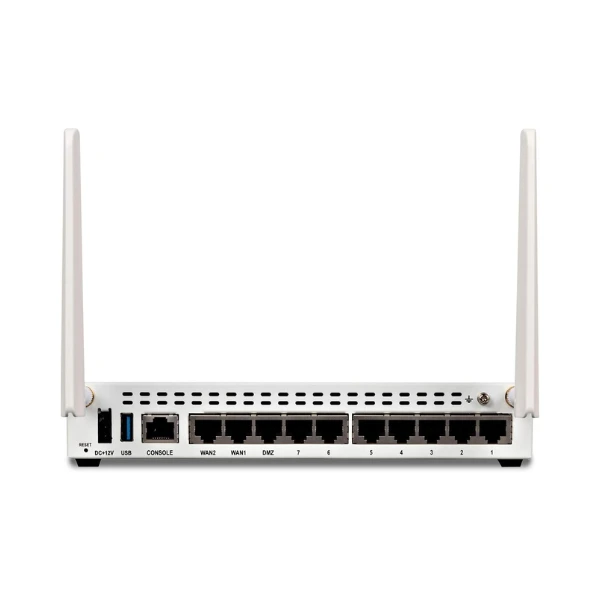

Phần cứng: 10 cổng GE RJ45 (bao gồm 7x Cổng nội bộ, 2x cổng WAN, 1x cổng DMZ), Wifi (802.11a/b/g/n/ac), bộ nhớ trong SSD 128 GB. FortiAP được quản lý tối đa (Tổng cộng / Đường hầm) 30/10
Xem thêm: FG-FW-60E SERIES-DATASHEET
Thông số kỹ thuật của Fortinet FortiWifi 61E (FWF-61E) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45 WAN / DMZ Ports | 2 / 1 |
| GE RJ45 Internal Ports | 7 |
| GE RJ45 PoE/+ Ports | - |
| Wireless Interface | 802.11 a/b/g/n/ac |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 128 |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 3 / 3 / 3 Gbps |
| Firewall Latency (64 byte UDP packets) | 3 μs |
| Firewall Throughput (Packets Per Second) | 4.5 Mpps |
| Concurrent Sessions (TCP) | 1.3 Million |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) 1 | 2 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 150 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 100 |
| SSL Inspection Throughput (IPS, HTTP) 3 | 175 Mbps |
| Application Control Throughput (HTTP 64K) 2 | 650 Mbps |
| CAPWAP Throughput (HTTP 64K) | 890 Mbps |
| Virtual Domains (Default / Maximum) | 10/10 |
| Maximum Number of Switches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 30 / 10 |
| Maximum Number of FortiTokens | 100 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| System Performance — Optimal Traffic Mix | |
| IPS Throughput 2 | 1,400 Mbps |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 400 Mbps |
| NGFW Throughput 2,4 | 250 Mbps |
| Threat Protection Throughput 2,5 | 200 Mbps |
| Dimensions | |
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 38 x 216 x 160 |
| Weight | 1.9 lbs (0.9 kg) |
| Form Factor | Desktop |
| Operating Environment and Certifications | |
| Power Required | 100–240V AC, 50–60 Hz |
| Maximum Current | 115V AC / 0.9A, 230V AC / 0.6A |
| Total Available PoE Power Budget* | N/A |
| Power Consumption (Average / Maximum) | 13 / 16 W |
| Heat Dissipation | 55 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level Fanless | 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
