Fortinet FortiWifi 60F (FWF-60F) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng 11-60 người dùng
- Threat Protection Throughput: 700 Mbps
- Site-to-Site VPN Tunnels: 200
- 700,000 phiên đồng thời

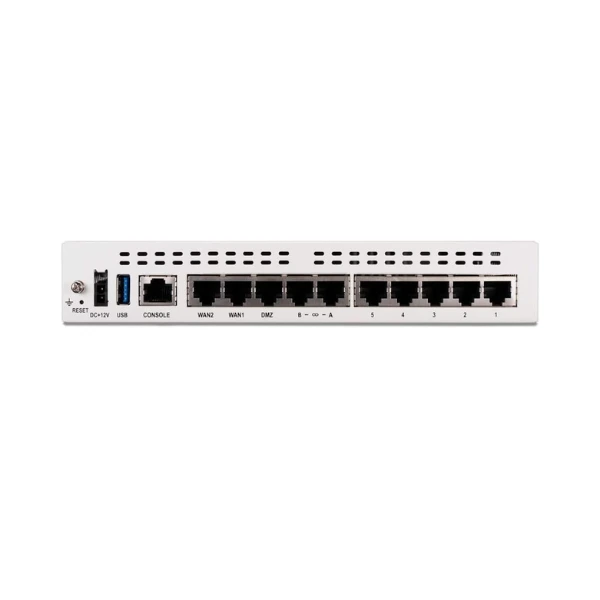

- Phần cứng: 10 x cổng GE RJ45 (bao gồm 7 x Cổng trong, 2 x Cổng WAN, 1 x Cổng DMZ), Wifi (802.11 a/b/g/n/ac-W2).
Mô tả
Thuộc Tính
Description
Fortinet FortiWifi 60F (FWF-60F) là thiết bị tường lửa dành cho mạng 11-60 người dùng với Threat Protection Throughput: 700 Mbps, Site-to-Site VPN Tunnels: 200, 700,000 phiên đồng thời.
Phần cứng: 10 x cổng GE RJ45 (bao gồm 7 x Cổng trong, 2 x Cổng WAN, 1 x Cổng DMZ), Wifi (802.11 a/b/g/n/ac-W2).
Xem thêm: fortigate-fortiwifi-60f-series-datasheet
Thông số kỹ thuật của Fortinet FortiWifi 60F (FWF-60F) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45 WAN / DMZ Ports | 2 / 1 |
| GE RJ45 Internal Ports | 7 |
| GE RJ45 FortiLink Ports | 2 |
| Wireless Interface | 802.11 a/b/g/n/ac-W2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | – |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10 / 10 / 6 Gbps |
| Firewall Latency (64 byte UDP packets) | 4 μs |
| Firewall Throughput (Packets Per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg, HTTPs) | 630 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) | 1.8 Mbps |
| CAPWAP Throughput (HTTP 64K) | 8 Gbps |
| Virtual Domains (Default / Maximum) | 10/10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 38 x 216 x 160 |
| Weight | 2.23 lbs (1.01 kg) |
| Form Factor | Desktop |
| Operating Environment and Certifications | |
| Input Rating | 12Vdc, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
| Maximum Current | 100V AC / 0.2A, 240V AC / 0.1A |
| Power Consumption (Average / Maximum) | 17.2W / 18.7W |
| Heat Dissipation | 63.8 BTU/hr |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level Fanless | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
| Radio Specifications | |
| Multiple (MU) MIMO | 3x3 |
| Maximum Wi-Fi Speeds | 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz |
| Maximum Tx Power | 20 dBm |
| Antenna Gain | 3.5 dBi @ 5GHz, 5 dBi @ 2.4 GHz |
