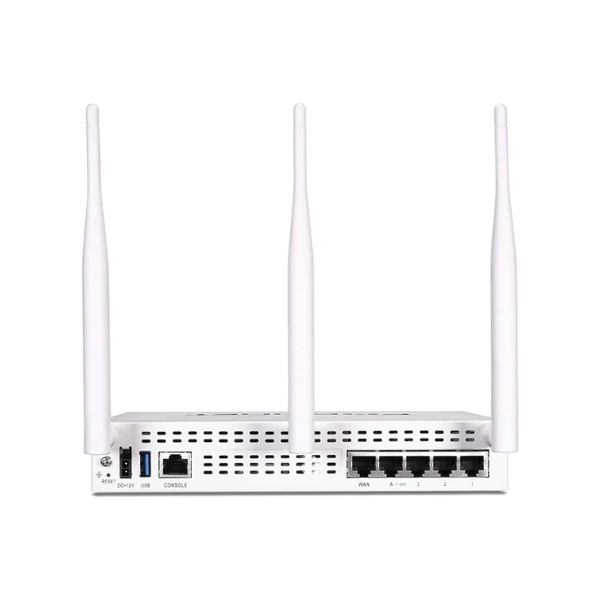

Fortinet Fortiwifi 40F (FWF-40F) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng từ 1-30 người dùng.
- Wifi (802.11a/b/g/n/ac-W2)
- Threat Protection Throughput: 600 Mbps
- Site-to-Site VPN Tunnels: 250
- Concurrent Sessions: 700,000
Mô tả
Thuộc Tính
Description
Fortinet Fortiwifi 40F (FWF-40F) là thiết bị tường lửa dành cho 1-30 người dùng với Threat Protection Throughput: 600 Mbps, Site-to-Site VPN Tunnels: 250, 700,000 phiên đồng thời
Phần cứng: 5 x cổng GE RJ45 (bao gồm 4 x Cổng trong, 1 x Cổng WAN), Wifi (802.11a/b/g/n/ac-W2)
Xem thêm: fortigate-fortiwifi-40f-series-datasheet
Thông số kỹ thuật của Fortinet Fortiwifi 40F (FWF-40F) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45 WAN / DMZ Ports | 1 |
| GE RJ45 Internal Ports | 3 |
| GE RJ45 FortiLink Ports | 1 |
| GE RJ45 PoE/+ Ports | - |
| Wireless Interface | 802.11 a/b/g/n/ac-W2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | – |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 1 Gbps |
| NGFW Throughput | 800 Mbps |
| Threat Protection Throughput | 600 Mbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5 / 5 / 5 Gbps |
| Firewall Latency (64 byte UDP packets) | 4 μs |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 4,4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 490 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg, HTTPs) | 310 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 320 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) | 990 Mbps |
| CAPWAP Throughput (HTTP 64K) | 3.5 Gbps |
| Virtual Domains (Default / Maximum) | 10/10 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 100 |
| Maximum Number of Registered FortiClients | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 38 x 216 x 160 |
| Weight | 2.2 lbs (1 kg) |
| Form Factor | Desktop |
| Operating Environment and Certifications | |
| Input Rating | 12Vdc, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
| Maximum Current | 100V AC / 0.2A, 240V AC / 0.1A |
| Power Consumption (Average / Maximum) | 13.6 W / 16.6 W |
| Heat Dissipation | 56.64 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level Fanless | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
| Radio Specifications | |
| Multiple (MU) MIMO | 3x3 |
| Maximum Wi-Fi Speeds | 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz |
| Maximum Tx Power | 20 dBm |
| Antenna Gain | 3.5 dBi @ 5GHz, 5 dBi @ 2.4 GHz |
