Fortinet FortiGate Rugged 90D (FGR-90D) – Thiết bị tường lửa
Liên hệ

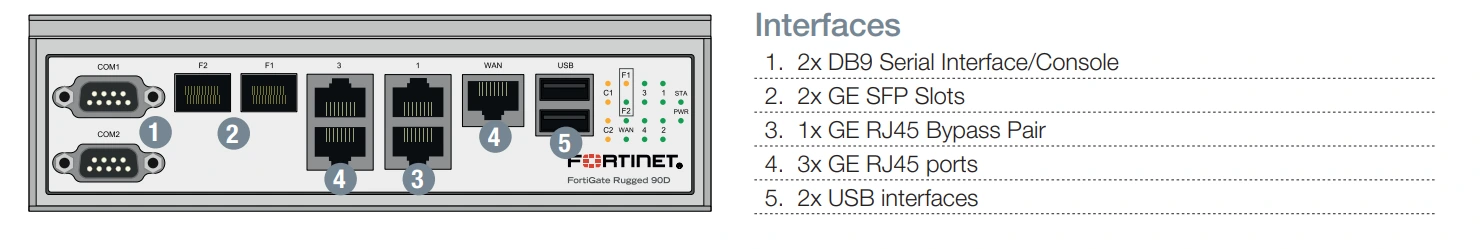

- 3x GE RJ45 ports
- 1x GE RJ45 bypass pair
- 2x SFP slots. 2x DB9 Serial/console
- Dual power input
- Maximum managed FortiAPs (Total / Tunnel) 32 / 16
Mô tả
Thuộc Tính
Description
Fortinet FortiGate Rugged 90D (FGR-90D) là thiết bị tường lửa Ruggedized, 3x GE RJ45 ports, 1x GE RJ45 bypass pair, 2x SFP slots. 2x DB9 Serial/console. Dual power input. Maximum managed FortiAPs (Total / Tunnel) 32 / 16
Xem thêm: FortiGate Rugged Series Datasheet
Thông số kỹ thuật của Fortinet FortiGate Rugged 90D (FGR-90D) – Thiết bị tường lửa
| Interfaces and Modules | ||
| GE RJ45 Interfaces | 3 | |
| Bypass GE RJ45 Port Pair | 1 | |
| GE SFP Slots | 2 | |
| DB9 Serial Interface | 2 | |
| USB (Client / Server) | 1 | |
| System Performance and Capacity | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 2 Gbps | |
| Firewall Latency (64 byte UDP) | 51.00 μs | |
| Firewall Throughput (Packets Per Second) | 84 Kpps | |
| Concurrent Sessions (TCP) | 2.5 Million | |
| New Sessions/Second (TCP) | 20,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 84 Mbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 1,000 | |
| SSL-VPN Throughput | 115 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 85 Mbps | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 72,000 | |
| Application Control Throughput (HTTP 64K) | 440 Mbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches | 8 | |
| Maximum Number of FortiAPs (Total / Tunnel) | 32 / 16 | |
| Maximum Number of FortiTokens | 100 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 350 Mbps | |
| NGFW Throughput | 370 Mbps | |
| Threat Protection Throughput | 280 Mbps | |
| Dimensions | ||
| Height x Width x Length (inches) | 2.11 x 7.32 x 6.30 | |
| Height x Width x Length (mm) | 53.5 x 186 x 160 | |
| Form Factor | Desktop | |
| Weight | 2.4 lbs (1.08 kg) | |
| IP Rating | IP40 | |
| Power Supply | Dual input, total 6 pin terminal block (12–48V DC) AC adapter included | |
| Power Consumption (Average / Maximum) | 40 W / 49 W | |
| Maximum Current | 12–48V DC/ 4.08–1.02A | |
| Heat Dissipation | 167 BTU/h | |
| Operating Environment and Certifications | ||
| Operating Temperature | --40–158°F (-40–70°C) | |
| Storage Temperature | -40–185°F (-40–85°C) | |
| Humidity | 0–95% non-condensing | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB | |
| Industry Certifications | IEC 61850-3 and IEEE 1613 Emission Compliant | |
