Fortinet FortiGate 80F-POE (FG-80F-POE) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng từ 51-100 người dùng.
- Threat Protection Throughput: 900 Mbps
- Site-to-Site VPN Tunnels: 200
- 1.500.000 Phiên đồng thời

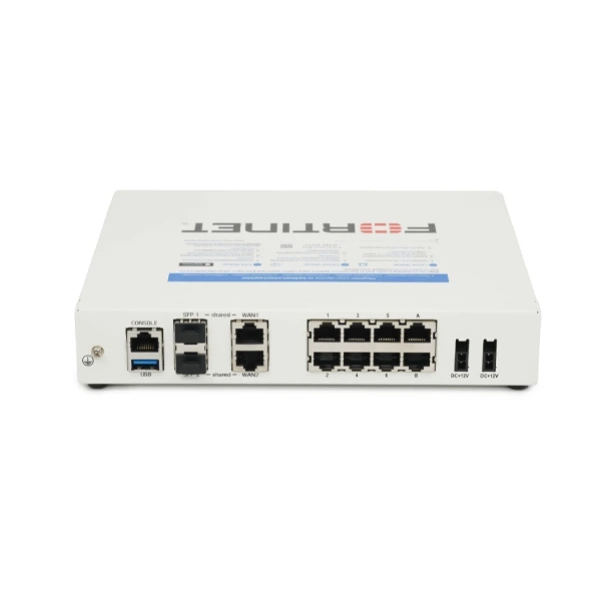

- Phần cứng: 8 x cổng GE PoE, 2 x cổng WAN phương tiện chia sẻ RJ45/SFP
Mô tả
Thuộc Tính
Description
Fortinet FortiGate 81F-POE (FG-81F-POE) là thiết bị tường lửa dành cho mạng từ 51-100 người dùng. Nó có Threat Protection Throughput: 900 Mbps, Site-to-Site VPN Tunnels: 200, 1.500.000 Phiên đồng thời.
Phần cứng: 8 x cổng GE PoE, 2 x cổng WAN phương tiện chia sẻ RJ45/SFP
Xem thêm: Fortigate Fortiwifi 80F Series Datasheet
Thông số kỹ thuật của Fortinet FortiGate 80F-POE (FG-80F-POE) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Internal Ports | - |
| GE RJ45 FortiLink Ports (Default) | - |
| GE RJ45 PoE/+ Ports | 6 |
| GE RJ45 PoE/+ FortiLink Ports (Default) | 2 |
| Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration) | - |
| USB Ports 3.0 | 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 1.4 Gbps |
| NGFW Throughput 2, 4 | 1 Gbps |
| Threat Protection Throughput 2, 5 | 900 Mbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/7 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) 1 | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, HTTP) 3 | 715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 100,000 |
| Application Control Throughput (HTTP 64K) 2 | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 2.4 x 8.5 x 7.0 |
| Height x Width x Length (mm) | 60 x 216 x 178 |
| Weight | 3.1 lbs (1.4 kg) |
| Form Factor | Desktop / Wall Mount / Rack Tray |
| Operating Environment and Certifications | |
| Input Rating | 12V DC, 3A (dual redundancy optional) |
| Power Required (Redundancy Optional) |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Maximum Current | 115VAC/2.2A, 230VAC/1.1A |
| Total Available PoE Power Budget | 96W |
| Power Consumption (Average / Maximum) | 96W / 118W |
| Heat Dissipation | 402.26 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 31.56 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
