Fortinet FortiGate 60F (FG-60F-BDL-950-12) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng từ 11-60 người dùng.
- Threat Protection Throughput: 700 Gbps
- Site-to-Site VPN Tunnels: 200
- 700000 Phiên đồng thời
- Dịch vụ 1 năm: Hợp đồng FortiCare 24×7 & FortiGuard Unified Threat Protection (UTP)
Mô tả
Thuộc Tính
Description
Fortinet FortiGate 60F (FG-60F-BDL-950-12) là thiết bị tường lửa dành cho mạng từ 11-60 người dùng. Nó có Threat Protection Throughput: 700 Mbps, Site-to-Site VPN Tunnels: 200, 700000 phiên đồng thời và Dịch vụ 1 năm: Hợp đồng FortiCare 24×7 & FortiGuard Unified Threat Protection (UTP)

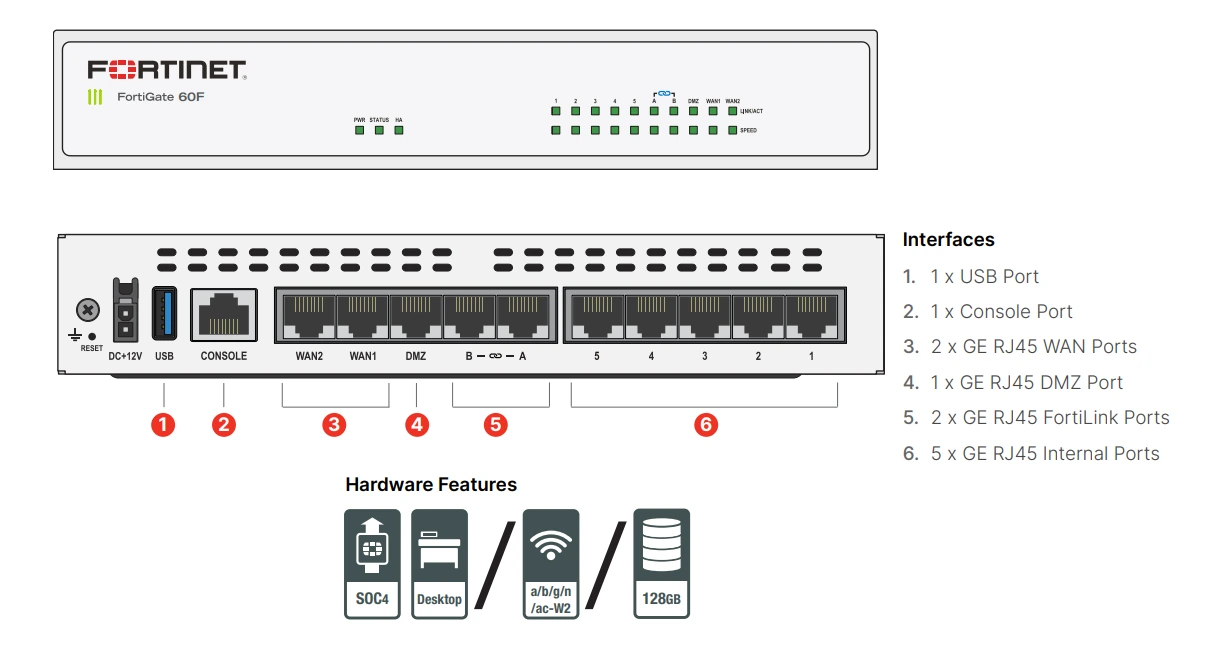

Phần cứng: 10x cổng GE RJ45 (bao gồm 7x cổng Internal, 2x cổng WAN, 1x cổng DMZ). FortiAP được quản lý tối đa (Tổng cộng / Đường hầm) 30/10;
Xem thêm: fortigate-fortiwifi-60f-series-datasheet
Thông số kỹ thuật của Fortinet FortiGate 60F (FG-60F-BDL-950-12) – Thiết bị tường lửa
| Mã sản phẩm | FG-60F-BDL-950-12 |
| Hardware Specifications | |
| GE RJ45 WAN / DMZ Ports | 2 / 1 |
| GE RJ45 Internal Ports | 5 |
| GE RJ45 FortiLink Ports | 2 |
| GE RJ45 PoE/+ Ports | - |
| Wireless Interface | - |
| Console Port | 1 |
| USB Port | 1 |
| Internal Storage | - |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
| Firewall Latency (64 byte, UDP) | 3.3 μs |
| Firewall Throughput (Packet per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Sec (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users | 200 |
| SSL Inspection Throughput (IPS, HTTP) | 630 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput | 1.8 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 38.5 x 216 x 160 |
| Weight | 2.23 lbs (1.01 kg) |
| Operating Environment and Certifications | |
| Power Rating | 12Vdc, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
| Maximum Current | 100Vac/1.0A 240Vac/0.6A |
| Power Consumption (Average / Maximum) | 17.0 W / 18.5 W |
| Heat Dissipation | 63.1 BTU/hr |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
