Fortinet FortiGate 50E (FG-50E) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng 11-50 người dùng
- Threat Protection Throughput: 160 Mbps
- Site-to-Site VPN Tunnels: 80
- 1.8 triệu phiên đồng thời
Mô tả
Fortinet FortiGate 50E (FG-50E) là thiết bị tường lửa dành cho mạng 11-50 người dùng với Threat Protection Throughput: 160 Mbps, Site-to-Site VPN Tunnels: 80, 1.8 triệu phiên đồng thời.

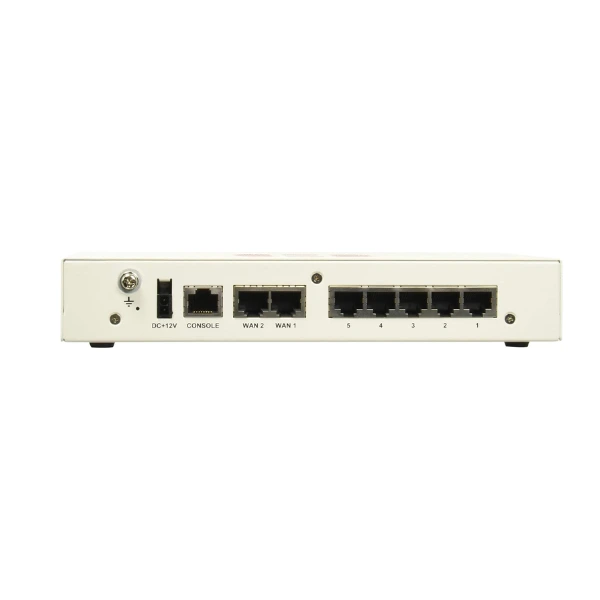

Phần cứng: 7x cổng GE RJ45 (bao gồm 2x cổng WAN, 5x cổng Switch), FortiAP được quản lý tối đa (Total / Tunnel) 10/5;
Thuộc Tính
Thông số kỹ thuật của Fortinet FortiGate 50E (FG-50E) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45 Switch Ports | 5 |
| GE RJ45 WAN Ports | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 350 Mbps |
| NGFW Throughput | 220 Mbps |
| Threat Protection Throughput | 160 Mbps |
| System Performance | |
| Firewall Throughput | 2.5 Gbps |
| Firewall Latency (64 byte UDP packets) | 180 μs |
| Firewall Throughput (Packets Per Second) | 375 Kpps |
| Concurrent Sessions (TCP) | 1.8 Million |
| New Sessions/Second (TCP) | 21,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 90 Mbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 100 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 150 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 140 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 75,000 |
| Application Control Throughput (HTTP 64K) | 450 Mbps |
| CAPWAP Throughput (HTTP 64K) | 1.2 Gbps |
| Virtual Domains (Default / Maximum) | 5 / 5 |
| Maximum Number of Switches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 10 / 5 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.44 x 8.52 x 5.5 |
| Height x Width x Length (mm) | 36.5 x 216 x 140 |
| Weight | 2.015 lbs (0.914 kg) |
| Form Factor | Desktop |
