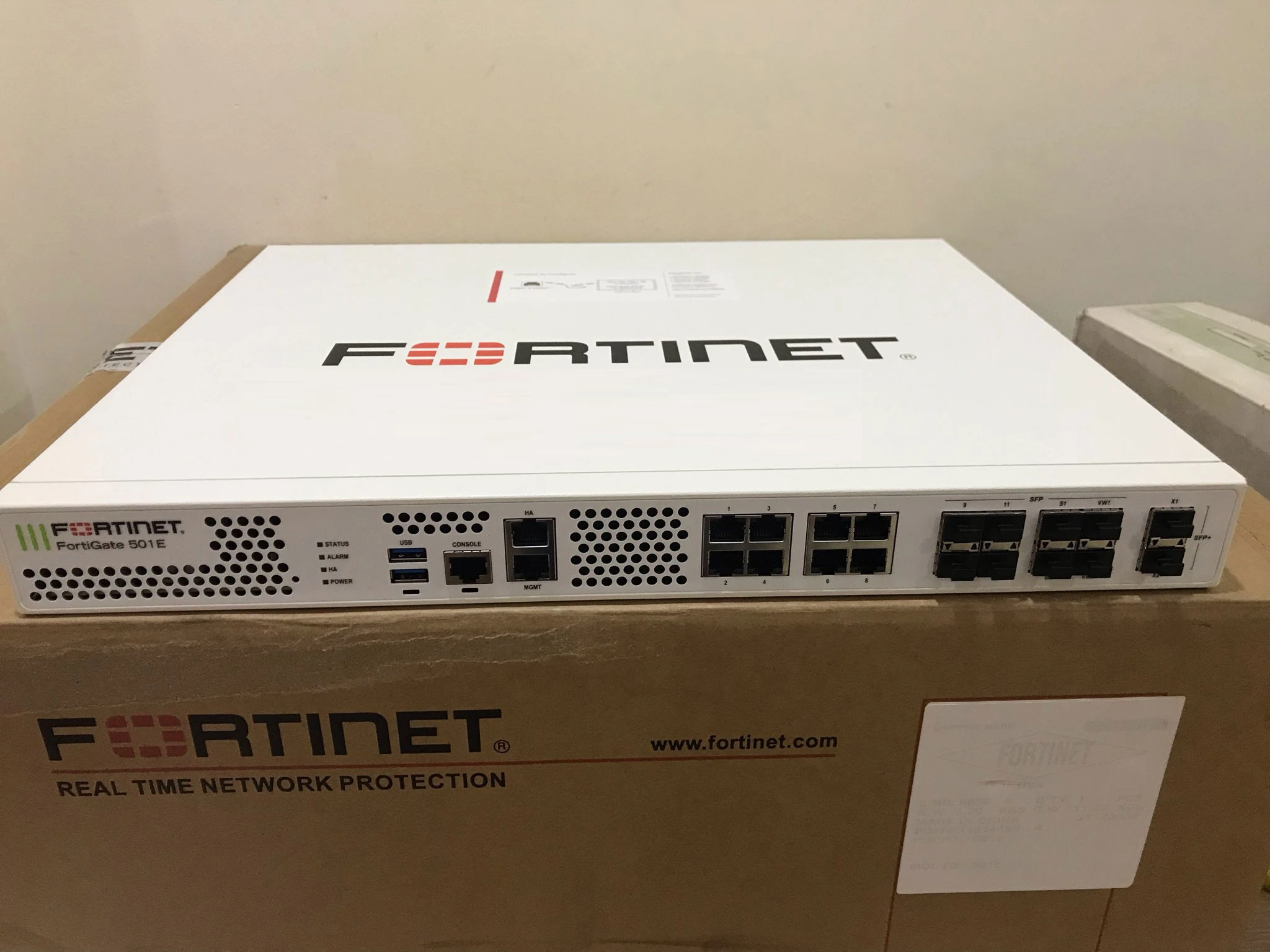

Fortinet FortiGate 501E (FG-501E) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng từ 300-500 người dùng.
- Threat Protection Throughput: 4.7 Gbps
- Site-to-Site VPN Tunnels: 500
- 8 triệu Phiên đồng thời
- Internal Storage: 2x 240 GB SSD
Mô tả
Thuộc Tính
Description
Fortinet FortiGate 501E (FG-501E) là thiết bị tường lửa dành cho mạng từ 300-500 người dùng. Nó có Threat Protection Throughput: 4.7 Gbps, Site-to-Site VPN Tunnels: 500, 8 triệu Phiên đồng thời.
Phần cứng: 2x 10 GE SFP+, 10x cổng GE RJ45 (bao gồm 1x cổng MGMT, 1x cổng HA, 8x cổng chuyển mạch), 8x khe cắm GE SFP, tăng tốc phần cứng SPU NP6 và CP9. 2x 240GB onboard SSD storage
Xem thêm: Fortinet FortiGate 501E datasheet
Thông số kỹ thuật của Fortinet FortiGate 501E (FG-501E) – Thiết bị tường lửa
| Interfaces and Modules | |
| 10 GE SFP+ Slots | 2 |
| GE RJ45 Interfaces | 8 |
| GE SFP Slots | 8 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | 2x 240 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 22 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 22 Gbps |
| Firewall Latency (64 byte, UDP) | 2 μs |
| Firewall Throughput (Packet per Second) | 33 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 300,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) 1 | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, HTTP) 3 | 6.8 Gbps |
| Application Control Throughput (HTTP 64K) 2 | 14 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 18 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 48 |
| Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
| Maximum Number of FortiTokens | 1,000 |
| Maximum Number of Registered Endpoints | 2,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| System Performance — Optimal Traffic Mix | |
| IPS Throughput 2 | 11 Gbps |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 5.2 Gbps |
| NGFW Throughput 2, 4 | 5 Gbps |
| Threat Protection Throughput 2, 5 | 4.7 Gbps |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight | 16.6 lbs (7.5 kg) |
| Form Factor | 1 RU |
| Power Consumption (Average / Maximum) | 105 W / 200 W |
| Power Source | 100–240V 60–50Hz |
| Current (Maximum) | 6A |
| Heat Dissipation | 613 BTU/h |
| Redundant Power Supplies (Hot Swappable) | optional |
| Operating Environment and Certifications | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 43 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
