Fortinet FortiGate 30E (FG-30E) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng từ 1-20 người dùng.
- Threat Protection Throughput: 150 Mbps
- Site-to-Site VPN Tunnels: 80
- 900,000 Phiên đồng thời
Mô tả
Thuộc Tính
Description
Fortinet FortiGate 30E (FG-30E) là thiết bị tường lửa dành cho mạng từ 1-20 người dùng. Nó có Threat Protection Throughput: 150 Mbps, Site-to-Site VPN Tunnels: 80, 900.000 Phiên đồng thời.

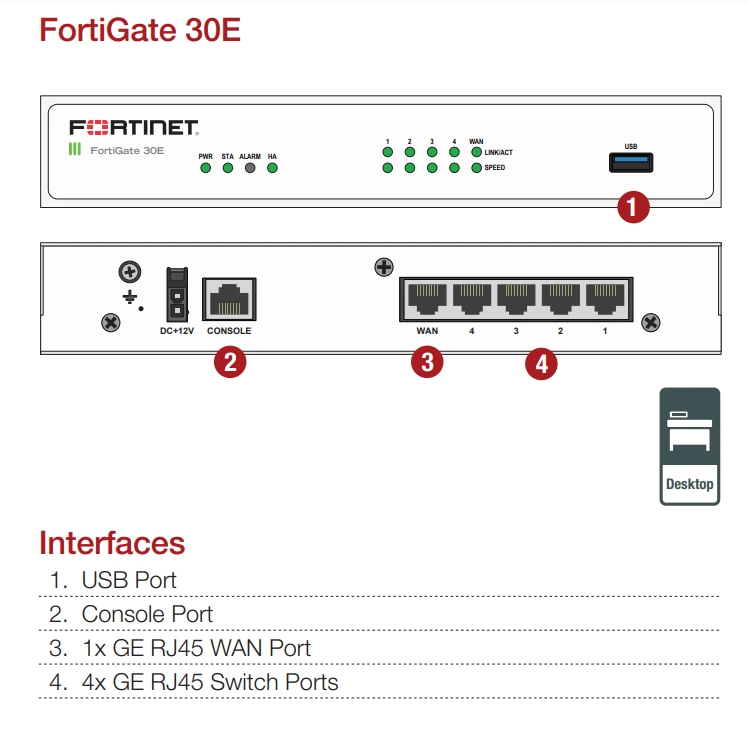

Phần cứng: 5x cổng GE RJ45 (Gồm 1x cổng WAN, 4x cổng Switch), FortiAP được quản lý tối đa (Total/ Tunnel) 2/2.
Xem thêm: FortiGate 30E datasheet
Thông số kỹ thuật của Fortinet FortiGate 30E (FG-30E) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45 Switch Ports | 4 |
| GE RJ45 WAN Port | 1 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| System Performance - Enterprise Traffic Mix | |
| IPS Throughput | 300 Mbps |
| NGFW Throughput | 200 Mbps |
| Threat Protection Throughput | 150 Mbps |
| System Performance | |
| Firewall Throughput | 950 Mbps |
| Firewall Latency (64 byte UDP packets) | 130 μs |
| Firewall Throughput (Packets Per Second) | 180 Kpps |
| Concurrent Sessions (TCP) | 900,000 |
| New Sessions/Second (TCP) | 15,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 75 Mbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 35 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
100 |
| SSL Inspection Throughput (IPS, avg HTTPS) | 125 Mbps |
| Application Control Throughput (HTTP 64K) | 400 Mbps |
| CAPWAP Throughput (HTTP 64K) | 850 Mbps |
| Virtual Domains (Default / Maximum) | 5 / 5 |
| Maximum Number of Switches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 2 / 2 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| System Performance — Optimal Traffic Mix | |
| IPS Throughput | 600 Mbps |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 300 Mbps |
| NGFW Throughput | 200 Mbps |
| Threat Protection Throughput | 150 Mbps |
| Dimensions | |
| Height x Width x Length (inches) | 1.61 x 8.27 x 5.24 |
| Height x Width x Length (mm) | 41 x 210 x 133 |
| Weight | 1.982 lbs (0.899 kg) |
| Form Factor | Desktop |
| Environment | |
| Input Rating | 12Vdc, 2A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
| Maximum Current | 100V / 0.6A, 240V / 0.4A |
| Power Consumption (Average / Maximum) | 13 / 15 W |
| Heat Dissipation | 52 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fan-less 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | |
| Regulatory Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
