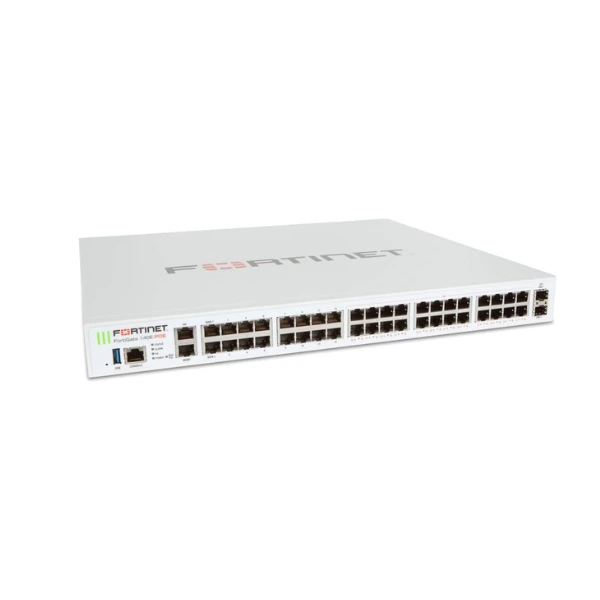

Fortinet FortiGate 140E-PoE (FG-140E) – Thiết bị tường lửa
Liên hệ

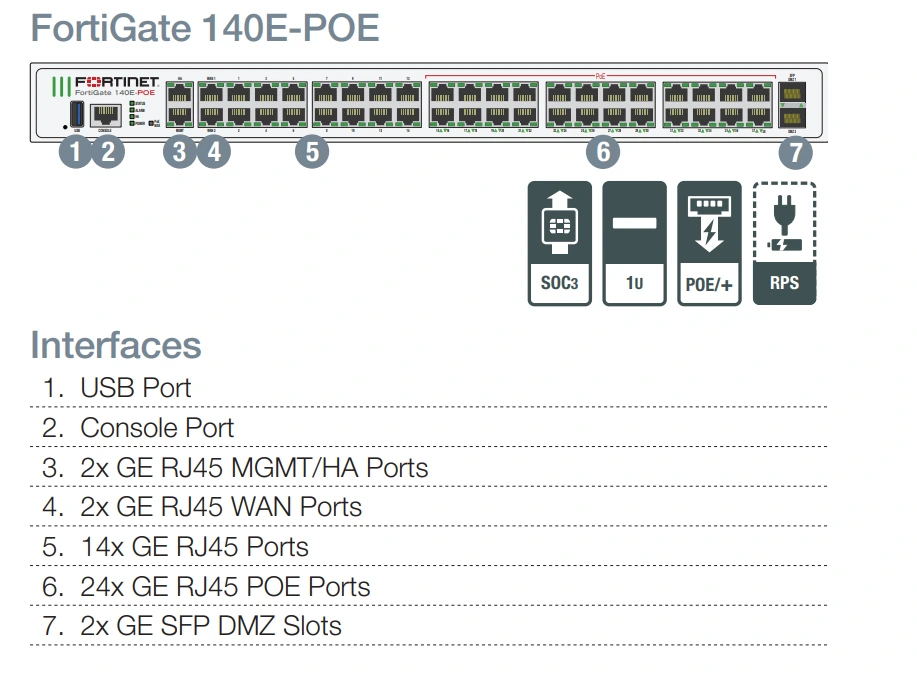

- 42x cổng GE RJ45 (bao gồm 2x cổng WAN, 1x cổng Mgmt, 1x cổng HA, 24x cổng RJ45 GE PoE/PoE+, 14x cổng chuyển mạch)
- 2x khe cắm GE SFP DMZ.
- FortiAP được quản lý tối đa (Tổng cộng / Đường hầm) 64/32;
Mô tả
Thuộc Tính
Description
Fortinet FortiGate 140E-PoE (FG-140E) là thiết bị tường lửa với 42x cổng GE RJ45 (bao gồm 2x cổng WAN, 1x cổng Mgmt, 1x cổng HA, 24x cổng RJ45 GE PoE/PoE+, 14x cổng chuyển mạch), 2x khe cắm GE SFP DMZ. FortiAP được quản lý tối đa (Tổng cộng / Đường hầm) 64/32;
Xem thêm:FortiGate-100E-series-datasheet
Thông số kỹ thuật của Fortinet FortiGate 140E-PoE (FG-140E) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45 Ports | 14 |
| GE RJ45 Management/HA /DMZ Ports | 1 / 1 / — |
| GE SFP Slots | 2 |
| GE RJ45 PoE/+ Ports | 24 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports | - |
| USB Port | 1 |
| Console Port | 1 |
| Internal Storage | - |
| Included Transceivers | 0 |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 7.4 / 7.4 / 4.4 Gbps |
| Firewall Latency (64 byte UDP packets) | 3 μs |
| Firewall Throughput (Packets Per Second) | 6.6 Mpps |
| Concurrent Sessions (TCP) | 2 Million |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) 1 | 4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 10,000 |
| SSL-VPN Throughput | 250 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 300 |
| SSL Inspection Throughput (IPS, HTTP) 3 | 190 Mbps |
| Application Control Throughput (HTTP 64K) 2 | 1 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 1.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 1,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| System Performance — Optimal Traffic Mix | |
| IPS Throughput 2 | 1.9 Gbps |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 500 Mbps |
| NGFW Throughput 2, 4 | 360 Mbps |
| Threat Protection Throughput 2, 5 | 250 Mbps |
| Dimensions | |
| Height x Width x Length (inches) | 1.75 x 17 x 15.5 |
| Height x Width x Length (mm) | 44.45 x 432 x 394 |
| Form Factor | Rack Mount, 1 RU |
| Weight | 12.4 lbs (5.6 kg) |
| Environment | |
| Power Required | 100–240V AC, 60–50 Hz |
| Maximum Current | 100V / 0.4A |
| Total Available PoE Power Budget* | - |
| Power Consumption (Average / Maximum) | 34.4 W / 40.0 W |
| Heat Dissipation | 136.48 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Humidity | 10–90% non-condensing |
| Noise Level | 40.4 dBA |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
