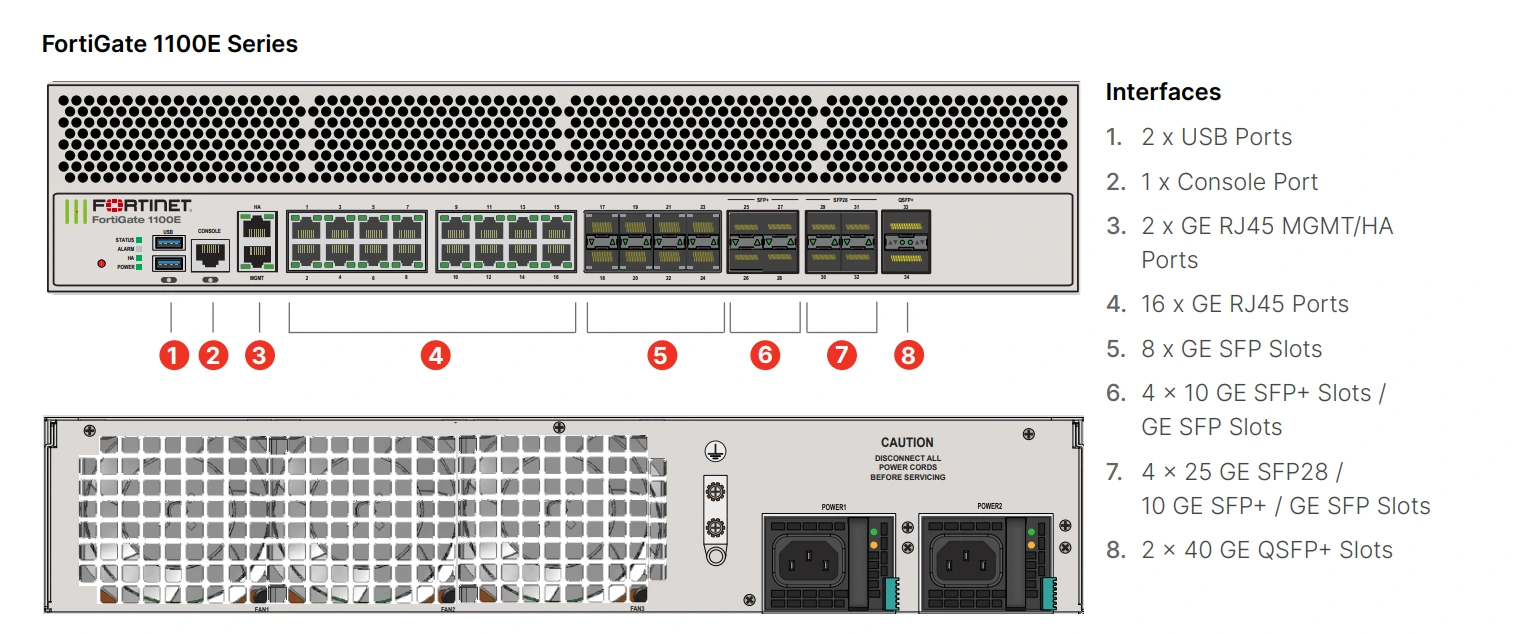

| Interfaces and Modules |
|
| Hardware Accelerated 40 GE QSFP+ Slots |
2 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Slots |
4 |
| Hardware Accelerated 10 GE SFP+ Slots |
4 |
| Hardware Accelerated GE SFP Slots |
8 |
| Hardware Accelerated GE RJ45 Ports |
16 |
| GE RJ45 Management / HA Ports |
2 |
| USB Ports (Client / Server) |
1/2 |
| Console Port |
1 |
| Onboard Storage |
0 |
| Included Transceivers |
2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix |
|
| IPS Throughput 2 |
12.5 Gbps |
| NGFW Throughput 2, 4 |
9.8 Gbps |
| Threat Protection Throughput 2, 5 |
7.1 Gbps |
| System Performance and Capacity |
|
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
80 / 80 / 45 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
80 / 80 / 45 Gbps |
| Firewall Latency (64 byte, UDP) |
3 μs |
| Firewall Throughput (Packet per Second) |
67.5 Mpps |
| Concurrent Sessions (TCP) |
8 Million |
| New Sessions/Second (TCP) |
500,000 |
| Firewall Policies |
100,000 |
| IPsec VPN Throughput (512 byte) |
48 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
20,000 |
| Client-to-Gateway IPsec VPN Tunnels |
100,000 |
| SSL-VPN Throughput |
8.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) |
10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS)3 |
10.0 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 |
6,500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
780,000 |
| Application Control Throughput (HTTP 64K) 2 |
26 Gbps |
| CAPWAP Throughput (1444 byte, UDP) |
43 Gbps |
| Virtual Domains (Default / Maximum) |
10/250 |
| Maximum Number of FortiSwitches Supported |
128 |
| Maximum Number of FortiAPs (Total / Tunnel) |
4,096 / 2,048 |
| Maximum Number of FortiTokens |
20,000 |
| Maximum Number of Registered Endpoints |
20,000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions and Power |
|
| Height x Width x Length (inches) |
3.5 x 17.44 x 17.62 |
| Height x Width x Length (mm) |
88.9 x 443 x 447.4 |
| Weight |
24.9 lbs (11.3 kg) |
| Form Factor |
Rack Mount, 2 RU |
| AC Power Supply |
100–240V AC, 50–60 Hz |
| Power Consumption (Average / Maximum) |
217 W / 336 W |
| Current (Maximum) |
6A@120V, 3A@240V |
| Heat Dissipation |
1147 BTU/h |
| Redundant Power Supplies |
Yes (Hot Swappable) |
| Operating Environment and Certifications |
|
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
10–90% non-condensing |
| Noise Level |
66.7 dBA |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;USGv6/IPv6 |
