Fortinet FortiGate 100EF (FG-100EF) – Thiết bị tường lửa
Liên hệ
- Dành cho mạng từ 50-100 người dùng.
- Threat Protection Throughput: 250 Mbps
- Site-to-Site VPN Tunnels: 300
- 2 triệu Phiên đồng thời
Mô tả
Thuộc Tính
Description
Fortinet FortiGate 100EF (FG-100EF) là thiết bị tường lửa dành cho mạng từ 50-100 người dùng. Nó có Threat Protection Throughput: 250 Mbps, Site-to-Site VPN Tunnels: 300, 2 triệu Phiên đồng thời.

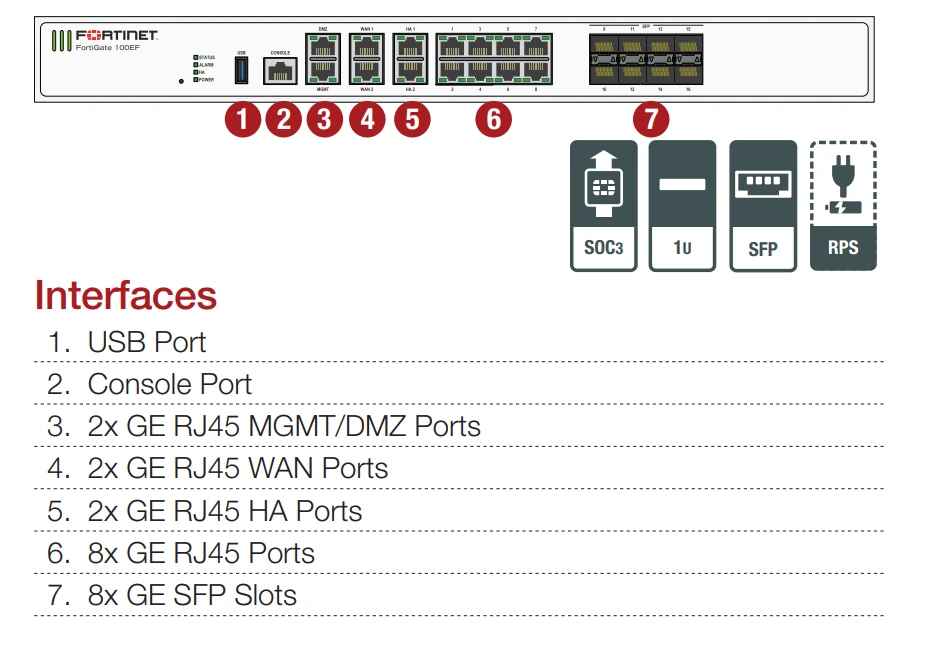

Phần cứng: 14x cổng GE RJ45 (bao gồm 2x cổng WAN, 1x cổng DMZ, 1x cổng Mgmt, 2x cổng HA, 8x cổng chuyển mạch nội bộ), 8x cổng SFP. FortiAP được quản lý tối đa (Tổng cộng / Đường hầm) 64/32.
Xem thêm: FortiGate_100E_Series_Datasheet
Thông số kỹ thuật của Fortinet FortiGate 100EF (FG-100EF) – Thiết bị tường lửa
| Hardware Specifications | |
| GE RJ45 Ports | 8 |
| GE RJ45 Management/HA /DMZ Ports | 1 / 2 / 1 |
| GE SFP Slots | 8 |
| GE RJ45 PoE/+ Ports | - |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports | - |
| USB Port | 1 |
| Console Port | 1 |
| Internal Storage | - |
| Included Transceivers | 0 |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 7.4 / 7.4 / 4.4 Gbps |
| Firewall Latency (64 byte UDP packets) | 3 μs |
| Firewall Throughput (Packets Per Second) | 6.6 Mpps |
| Concurrent Sessions (TCP) | 2 Million |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) 1 | 4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 10,000 |
| SSL-VPN Throughput | 250 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 300 |
| SSL Inspection Throughput (IPS, HTTP) 3 | 190 Mbps |
| Application Control Throughput (HTTP 64K) 2 | 1 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 1.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 1,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| System Performance — Optimal Traffic Mix | |
| IPS Throughput 2 | 1.9 Gbps |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 500 Mbps |
| NGFW Throughput 2, 4 | 360 Mbps |
| Threat Protection Throughput 2, 5 | 250 Mbps |
| Dimensions | |
| Height x Width x Length (inches) | 1.75 x 17 x 10 |
| Height x Width x Length (mm) | 44.45 x 432 x 254 |
| Form Factor | Rack Mount, 1 RU |
| Weight | 7.28 lbs (3.3 kg) |
| Environment | |
| Power Required | 100–240V AC, 60–50 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Total Available PoE Power Budget* | - |
| Power Consumption (Average / Maximum) | 24.4 W / 26.9 W |
| Heat Dissipation | 91.8 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Humidity | 10–90% non-condensing |
| Noise Level | 40.4 dBA |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
