Fortinet FortiGate 1000D (FG-1000D) – Thiết bị tường lửa
Liên hệ
- Threat Protection Throughput: 3 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels 20,000
- 11 triệu Phiên đồng thời
Mô tả
Thuộc Tính
Description
Fortinet FortiGate 1000D (FG-1000D) là thiết bị tường lửa có Threat Protection Throughput: 3 Gbps, Gateway-to-Gateway IPsec VPN Tunnels 20,000, 11 triệu Phiên đồng thời

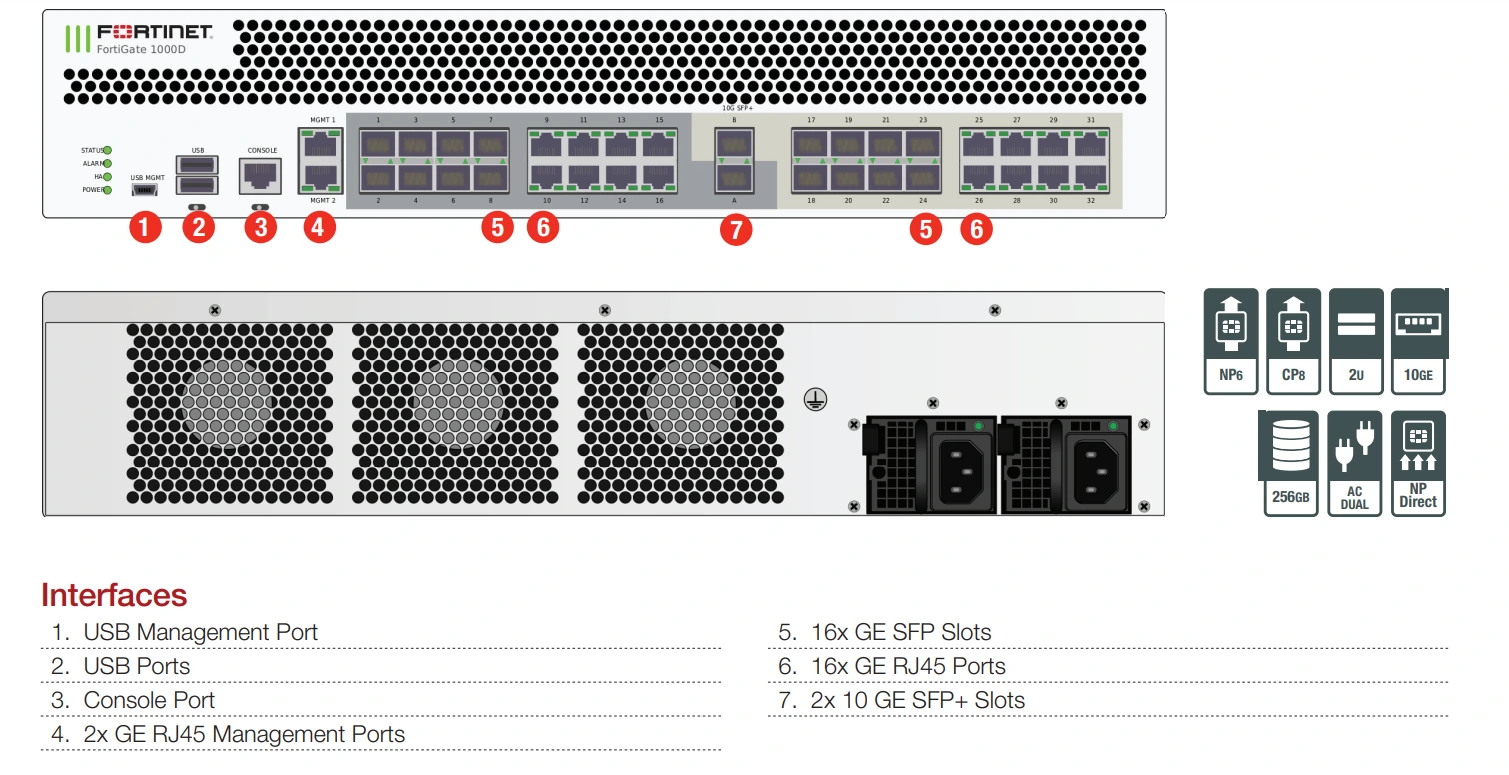

Phần cứng: 2x 10 GE SFP+, 16x GE SFP, 16x GE RJ45port, 2x GE RJ45 Management, SPU NP6 và CP8 được tăng tốc, 1x bộ nhớ trong SSD 256 GB, nguồn điện AC kép.
Xem thêm: FortiGate 1000D datasheet
Thông số kỹ thuật của Fortinet FortiGate 1000D (FG-1000D) – Thiết bị tường lửa
| Interfaces and Modules | |
| Hardware Accelerated 10 GE SFP+ Slots | 2 |
| Hardware Accelerated GE SFP Slots | 16 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client / Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 1x 256 GB SSD |
| Included Transceivers | 0 |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 6 Gbps |
| NGFW Throughput 2, 4 | 5 Gbps |
| Threat Protection Throughput 2, 5 | 4 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 52 / 52 / 33 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 52 / 52 / 33 Gbps |
| Firewall Latency (64 byte, UDP) | 3 μs |
| Firewall Throughput (Packet per Second) | 49.5 Mpps |
| Concurrent Sessions (TCP) | 11 Million |
| New Sessions/Second (TCP) | 280,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) | 25 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 3.6 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS)3 | 5.0 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 2,700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
800,000 |
| Application Control Throughput (HTTP 64K) 2 | 14 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 11 Gbps |
| Virtual Domains (Default / Maximum) | 10/250 |
| Maximum Number of FortiSwitches Supported | 128 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 3.48 x 17.20 x 17.95 |
| Height x Width x Length (mm) | 88.5 x 437 x 456 |
| Weight | 24.70 lbs (11.20 kg) |
| Form Factor | Rack Mount, 2 RU |
| AC Power Supply | 100–240V AC, 50–60 Hz |
| Power Consumption (Average / Maximum) | 153 W / 220.8 W |
| Current (Maximum) | 100V / 5A, 240V / 3A |
| Heat Dissipation | 753.40 BTU/h |
| Redundant Power Supplies | Yes (Hot Swappable) |
| Operating Environment and Certifications | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 53.3 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;USGv6/IPv6 |
