FortiGate Rugged 60D (FGR-60D) – Thiết bị tường lửa
Liên hệ

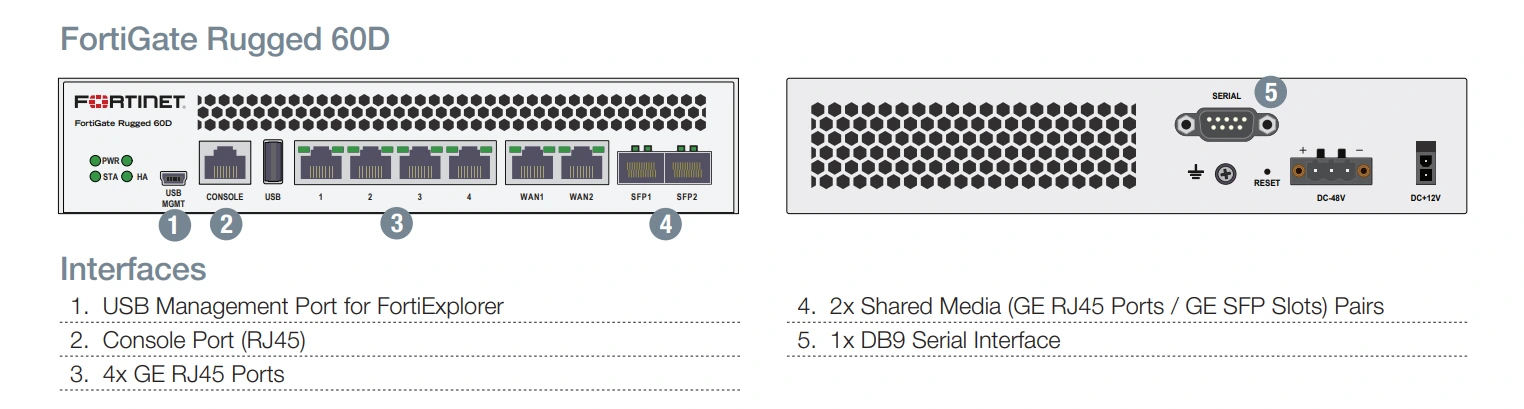

- 4x GE RJ45 Switch ports
- 2x Shared Media pairs (Including 2x GE RJ45 ports, 2x SFP slots).
- DB9 Serial
- Maximum managed FortiAPs (Total / Tunnel) 10 / 5
Mô tả
Thuộc Tính
Description
FortiGate Rugged 60D (FGR-60D) là thiết bị tường lửa Ruggedized, 4x GE RJ45 Switch ports, 2x Shared Media pairs (Including 2x GE RJ45 ports, 2x SFP slots). DB9 Serial. Maximum managed FortiAPs (Total / Tunnel) 10 / 5
Xem thêm: FortiGate Rugged Series Datasheet
Thông số kỹ thuật của FortiGate Rugged 60D (FGR-60D) – Thiết bị tường lửa
| Interfaces and Modules | ||
| GE RJ45 Interfaces | 4 | |
| GE RJ45/SFP Shared Media Pairs | 2 | |
| DB9 Serial Interface | 1 | |
| USB (Client / Server) | 1/1 | |
| RJ45 Console Port | 1 | |
| System Performance and Capacity | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 1.5 Gbps | |
| Firewall Latency (64 byte UDP) | 4.00 μs | |
| Firewall Throughput (Packets Per Second) | 2.2 Mpps | |
| Concurrent Sessions (TCP) | 500,000 | |
| New Sessions/Second (TCP) | 4,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 1 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 500 | |
| SSL-VPN Throughput | 30 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum) | 100 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 15 Mbps | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 15,000 | |
| Application Control Throughput (HTTP 64K) | 95 Mbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches | 8 | |
| Maximum Number of FortiAPs (Total / Tunnel) | 10 / 5 | |
| Maximum Number of FortiTokens | 100 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 95 Mbps | |
| NGFW Throughput | 40 Mbps | |
| Threat Protection Throughput | 23 Mbps | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 8.50 x 6.10 | |
| Height x Width x Length (mm) | 44 x 216 x 155 | |
| Form Factor | Desktop | |
| Weight | 3.5 lbs (1.6 kg) | |
| IP Rating | IP20 | |
| Power Supply | -48V DC power supply and external 12V DC power adapter connection. AC adapter not included. DC Power connector supplied only | |
| Power Consumption (Average / Maximum) | 11.6 W / 14 W | |
| Maximum Current | -48V DC / 0.5A | |
| Heat Dissipation | 40 BTU/h | |
| Operating Environment and Certifications | ||
| Operating Temperature | -40–140°F (-20–60°C) | |
| Storage Temperature | -40–185°F (-40–85°C) | |
| Humidity | 20–90% non-condensing | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC Part 15 Class A, RCM, CE, UL/ cUL, CB | |
