| Model |

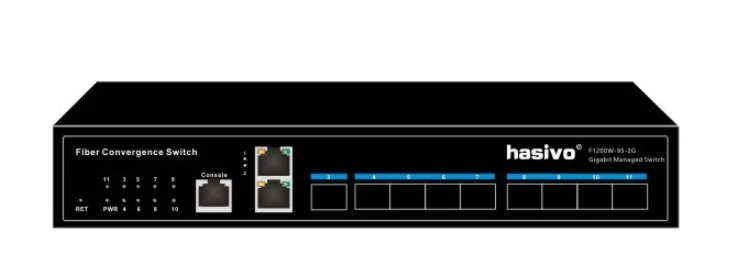

S1100W-9S-2G |
| Hardware Parameter |
| Product |
9+2 Full Gigabit Fiber Switch |
| Fixed port |
2x10/100/1000Base-TX
9x100/1000M SFP |
| Console port |
1xconsole port |
| Reset Key |
1 |
| CPU |
500M |
| DDR |
1G DDR3 1333MHz |
| Buffer |
Fully integrated 4.1 M packet buffer |
| FLASH |
16M |
| RAM |
128M |
| Bandwidth |
56/128Gbps |
| Packet Forwarding |
40.32Mpps |
| MAC Address |
8K |
| Network Protocol |
IEEE 802.3
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3z 1000BASE-X
IEEE 802.3ad
IEEE 802.3q 、IEEE 802.3q/p
IEEE 802.1w, IEEE 802.1d, IEEE 802.1S
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
EPPS ring network protocol
EPPS ring network protocol |
| Port Specification |
10/100/1000Base(X) Auto |
| Transmission Mode |
Store and Forward(full wirespeed) |
| Transmission Distance |
10BASE-T: Cat3, 4, 5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤1000 meter) |
| LED Indicator |
PWR: Power LED
3~11: (SFP LED)
Port: (Green=10/100M LED+Orange=1000M LED) |
| Power |
External power DC 12V-2.5A
MAX Power 15W |
| Operating Temperature/Humidity |
-20～+55°C; 5%～90% RH No coagulation |
| Storage Temperature/Humidit |
-40～+75°C; 5%～95% RH No coagulation |
| Product size/Packing size (LxWxH) |
245mm x 110mm x 40mm
300mm x 205mm x 55mm |
| N.W/G.W (kg) |
0.7kg/1kg |
| Installation |
Desktop (optional wall+machine hangers) |
| Lightning protection level |
3KV 8/20us; IP30 |
| Software Parameter |
| Network Protocol |
IEEE 802.3x
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q, IEEE 802.3q/p
IEEE 802.1w, IEEE 802.1d, IEEE 802.1S, IEEE 802.1X |
| MAC |
Support 16K MAC address,auto aging and learning |
| VLAN Configuration |
Support port-based VLAN
Up to 4096 VLANs
Support Voice VLAN, can configure Qos for voice data
802.1Q |
| Spanning Tree |
STP(Spanning tree protocol)
RSTP/MSTP(Rapid spanning tree protocol)
EPPS/EAPS(Ring network protocol)
802.1x |
| Port Aggregation |
Support 8 groups of aggregation, each group support up to 8 ports; |
| Port Mirroring |
Support many-to-one port mirroring |
| Loop Guard |
Support loop protection, real-time detection, quick alram, concise location, Intelligent blocking, automatic recovery |
| Port Isolation |
Support downlink ports isolate from each other and communicate with uplink port as well |
| Flow Control |
Half duplex based on Back pressure;
Full duplex based on PAUSE frame |
| Speed Limitation |
Bandwidth management based on port input and output |
| Multicast Control |
IGMPv1/2/3 and MLDv1/2 Snooping GMRP protocol registration Multicast address management, multicast VLAN, multicast routing port, static multicast address |
| DHCP |
DHCP Snooping |
| Storm Suppression |
Support unknown unicast, multicast , unknown multicast, broadcast type storm suppression
Storm suppression based on bandwidth adjustment and storm filtering |
| Security |
Support User port+IP address+MAC address ACL based on IP, MAC
Support security properties of number of MAC address based on port |
| QoS |
802.1p port queue priority algorithm Cos/Tos, QOS remark WRR(Weighted Round Robin), weighted priority rotation algorithm WRR, SP, WFQ priority scheduling modes |
| Cable Sequence |
Auto-MDIX; auto detection on straight-through and cross-over cable |
| Negotiation Mode |
Port support auto negotiation function(self-negotiation transmission rate and duplex mode) |
| System maintenance |
Upgrade package upload
System log viewing
WEB recovery factory configuration |
| Network Management |
WEB interface management
CLI management based on Telnet, TFTIP, Console
SNMP V1/V2/V3 management
RMONV1/V2 management
RMON management |
