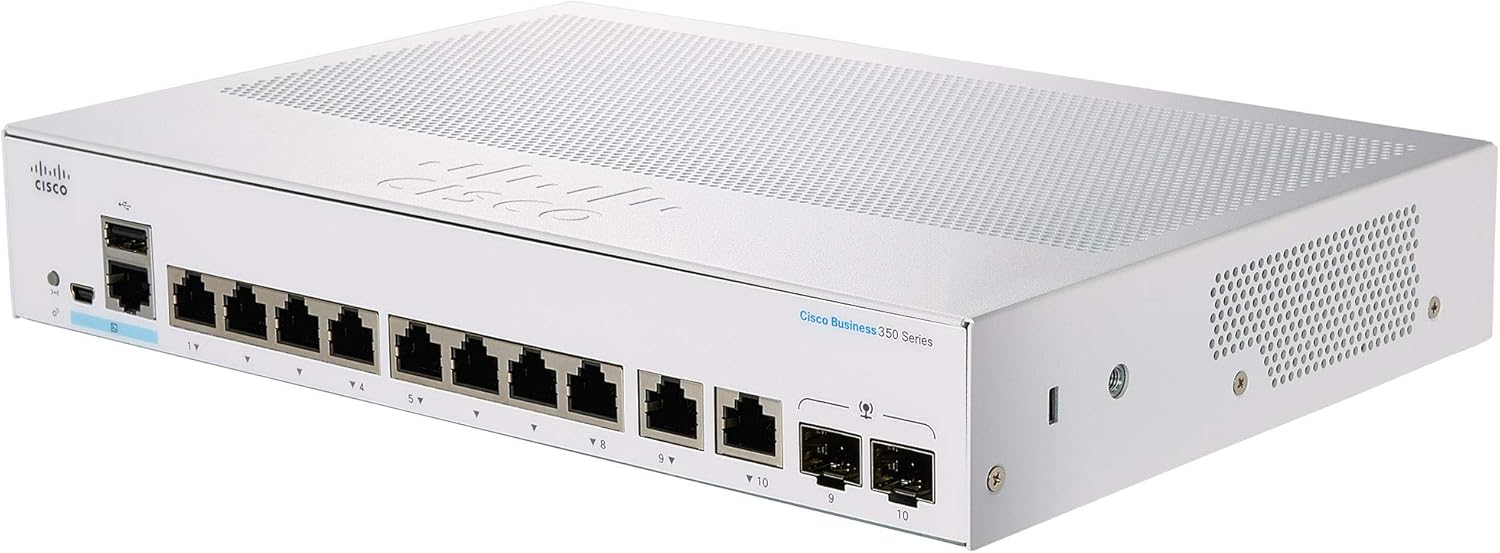

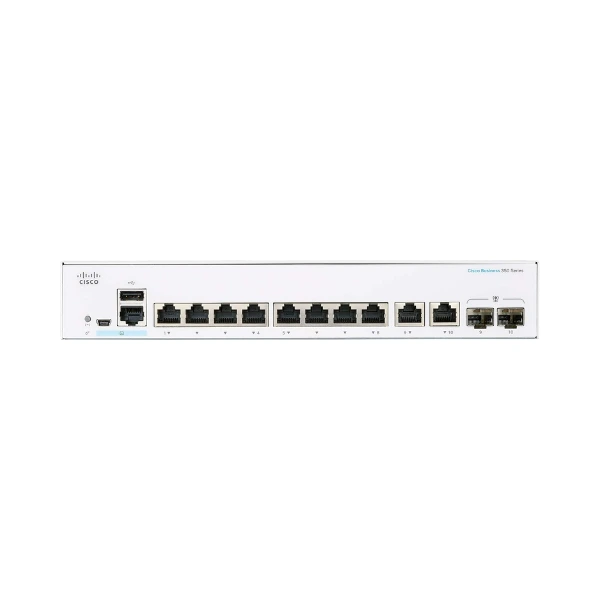

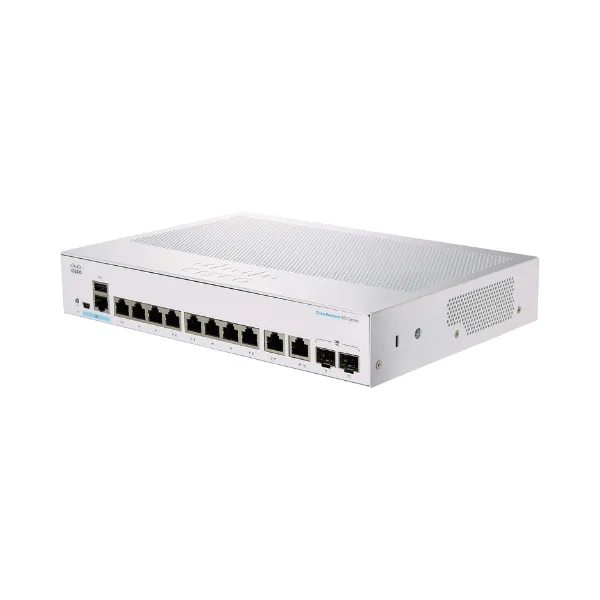

Switch Cisco CBS350-8T-E-2G-EU
- Cổng mạng: 8 cổng 1G
- Cổng uplink: 2 cổng 1G RJ45/SFP combo
- Hỗ trợ PoE: Chỉ truyền dữ liệu, không cấp nguồn
- Hỗ trợ stacking: Không hỗ trợ
- Hệ thống quạt: Không quạt (Fanless)
- Nguồn điện: Sử dụng nguồn ngoài
- Tính năng: Chuyển mạch Layer 2, hỗ trợ VLAN, Spanning Tree Protocol (STP), bảo vệ chống mối đe dọa nâng cao, bảo mật IPv6 first-hop, chất lượng dịch vụ (QoS), sFlow, định tuyến tĩnh IPv4/IPv6
- Quản lý mạng: Cisco Business Dashboard, giao diện quản lý trên thiết bị, CLI và SNMP
Description
Cisco CBS350-8T-E-2G-EU là thiết bị chuyển mạch được quản lý thuộc dòng Cisco CBS 350, cung cấp 8 cổng 10/100/1000 và 2 cổng uplink 1G copper/SFP combo. Với mức giá hợp lý, thiết bị này là lựa chọn lý tưởng để xây dựng hệ thống mạng doanh nghiệp hiệu quả mà vẫn tối ưu chi phí đầu tư.
Đặc điểm của Switch Cisco CBS350-8T-E-2G-EU
Thiết kế nhỏ gọn với màu trắng tinh tế, CBS350-8T-E-2G-EU mang đến hiệu suất mạnh mẽ, bảo mật cao và bộ tính năng toàn diện để quản lý, kết nối, giám sát và truyền tải dữ liệu. Thiết bị hỗ trợ cấp nguồn qua PoE và tích hợp tính năng truestacking, cho phép quản trị viên cấu hình, giám sát và khắc phục sự cố toàn bộ hệ thống chuyển mạch trong một stack như một thiết bị duy nhất với một địa chỉ IP duy nhất.
Ngoài ra, Cisco CBS350-8T-E-2G-EU dễ dàng cài đặt và cấu hình, đi kèm bảng điều khiển cấp doanh nghiệp, hỗ trợ IPv6 và quản lý lưu lượng truy cập lớp 3 nâng cao. Thiết bị cũng được tích hợp nhiều giải pháp giúp tiết kiệm điện năng, tối ưu chi phí vận hành.

- Tốc độ LAN: Gigabit (1000Mbps)
- Số cổng: 8 Cổng
- Cổng kết nối: Support 8 x Gigabit Ethernet port and 2 x Gigabit Ethernet Combo Port (RJ45 + Small form-factor pluggable [SFP]).
- Switch cổng quang: 2 SFP
- Switch quản lý: Managed Switch
- Kiểu Switch: Switch Gigabit (1000Mbps)
- Hỗ trợ PoE: Chỉ truyền dữ liệu, không cấp nguồn
- Hỗ trợ stacking: Không hỗ trợ
- Hệ thống quạt: Không quạt (Fanless)
- Nguồn điện: Sử dụng nguồn ngoài
- Tính năng: Chuyển mạch Layer 2, hỗ trợ VLAN, Spanning Tree Protocol (STP), bảo vệ chống mối đe dọa nâng cao, bảo mật IPv6 first-hop, chất lượng dịch vụ (QoS), sFlow, định tuyến tĩnh IPv4/IPv6
- Quản lý mạng: Cisco Business Dashboard, giao diện quản lý trên thiết bị, CLI và SNMP
- Chất liệu vỏ: Vỏ Thép
- Mô tả khác: Gigabit Ethernet chất lượng dịch vụ (QoS) tích hợp tối ưu hóa các dịch vụ nhạy cảm với độ trễ và cải thiện hiệu suất mạng tổng thể.
- Thiết kế thanh lịch và nhỏ gọn
Thông số kỹ thuật của Switch Cisco CBS350-8T-E-2G-EU
Performance | |
Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 14.88 |
Switching Capacity in Gigabits per Second (Gbps) | 20.0 |
Layer 2 Switching | Spanning Tree Protocol Port grouping/link aggregation – Up to 8 groups – Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN – Support for up to 4,094 VLANs simultaneously – Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN – Management VLAN – Private VLAN with promiscuous, isolated, and community port – Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks – Guest VLAN, unauthenticated VLAN – Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication – CPE VLAN Voice VLAN Multicast TV VLAN VLAN Translation Q-in-Q Selective Q-in-Q Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Unidirectional Link Detection (UDLD) Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP Querier Head-of-Line (HOL) blocking Loopback DetectioN |
Layer 3 | IPv4 routing – Wirespeed routing of IPv4 packets – Up to 990 static routes and up to 128 IP interfaces IPv6 routing Layer 3 Interface – Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface Classless Interdomain Routing (CIDR) Policy-Based Routing (PBR) DHCP Server DHCP relay at Layer 3 User Datagram Protocol (UDP) relay |
Security | Secure Shell (SSH) Protocol Secure Sockets Layer (SSL) IEEE 802.1X (Authenticator role) Web-based authentication STP Bridge Protocol Data Unit (BPDU) Guard STP Root Guard STP loopback guard DHCP snooping IP Source Guard (IPSG) Dynamic ARP Inspection (DAI) IP/MAC/Port Binding (IPMB) Secure Core Technology (SCT) Secure Sensitive Data (SSD) Trustworthy systems Private VLAN Layer 2 isolation Private VLAN Edge (PVE) with community VLAN Port security RADIUS/TACACS+ RADIUS accounting Storm control DoS prevention Multiple user privilege levels in CLI ACLs Support for up to 1,024 rules |
Management | Web user interface SNMP Remote Monitoring (RMON) IPv4 and IPv6 dual stack Firmware upgrade Port mirroring VLAN mirroring DHCP (options 12, 66, 67, 82, 129, and 150) Secure Copy (SCP) Autoconfiguration with Secure Copy (SCP) file download Text-editable config files Smartports Auto Smartports Textview CLI Cloud services Embedded Probe for Cisco Business Dashboard Cisco Network Plug and Play (PnP) agent Localization Login banner Other management |
Power consumption | |
System Power Consumption | 110V=12.55W 220V=12.56W |
Power Consumption (with PoE) | N/A |
Heat Dissipation (BTU/hr) | 42.86 |
Hardware | |
Total System Ports | 10 Gigabit Ethernet |
RJ-45 Ports | 8 Gigabit Ethernet |
Combo Ports(RJ 45 + Small form-factor pluggable [SFP]) | 2 Gigabit Ethernet combo |
Console port | Cisco Standard mini USB Type-B / RJ45 console port |
USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed |
Flash | 256 MB |
CPU | 800 MHz ARM |
Packet buffer | 1.5 MB |
Environmental | |
Unit dimensions (W x H x D) | 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
Unit weight | 1.7 kg (3.75 lb) |
Power | 100-240V 50-60 Hz, external |
Certification | 23° to 122°F (-5° to 50°C) |
Storage temperature | -13° to 158°F (-25° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Additional information
Thương hiệu | |
---|---|
Bảo hành | 12 tháng |
