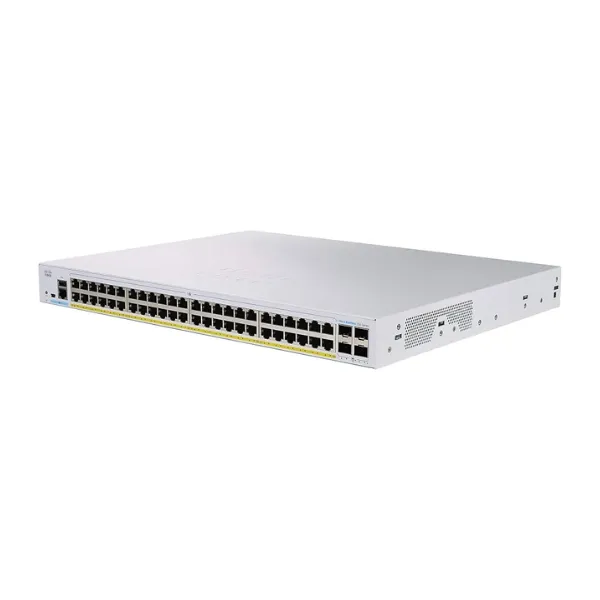

Switch Cisco CBS350-48FP-4X-EU

Name: Switch Cisco CBS350-48FP-4X-EU | Chính hãng, giá tốt
Brand: Cisco
SKU: CBS350-48FP-4X-EU
Price: 1 VND
Availability: InStock
Rating: 5 (31 reviews)

Liên hệ

Cổng mạng: 48 cổng Gigabit Ethernet (1G)
Cổng uplink: 4 cổng 10G SFP+
Hỗ trợ PoE: PoE+ với tổng công suất 740W
Khả năng xếp chồng: Hỗ trợ xếp chồng tối đa 4 thiết bị
Hệ thống quạt: 1 quạt tản nhiệt
Nguồn điện: Nguồn tích hợp
Tính năng: Chuyển mạch Layer 2, hỗ trợ VLAN, Spanning Tree Protocol (STP), bảo vệ mối đe dọa nâng cao, bảo mật IPv6 First-Hop, chất lượng dịch vụ (QoS), giám sát lưu lượng sFlow, định tuyến tĩnh IPv4/IPv6
Quản lý mạng: Cisco Business Dashboard, giao diện quản lý trên thiết bị, CLI, SNMP

Mô tả

Cisco CBS350-48FP-4X-EU là lựa chọn lý tưởng cho doanh nghiệp nhỏ, cung cấp 48 cổng Gigabit Ethernet PoE+ với tổng công suất 740W, cùng 4 cổng uplink SFP+ giúp mở rộng kết nối linh hoạt

Tính năng Switch Cisco CBS350-48FP-4X-EU

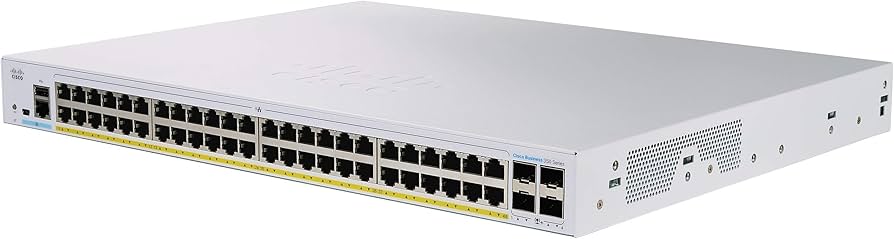

Switch Cisco CBS350-48FP-4X-EU với 48 cổng Gigabit Ethernet (1G) và 4 cổng 10G SFP+

Cổng mạng: 48 cổng Gigabit Ethernet (1G)
Cổng uplink: 4 cổng 10G SFP+
Hỗ trợ PoE: PoE+ với tổng công suất 740W
Khả năng xếp chồng: Hỗ trợ xếp chồng tối đa 4 thiết bị
Hệ thống quạt: 1 quạt tản nhiệt
Nguồn điện: Nguồn tích hợp
Tính năng: Chuyển mạch Layer 2, hỗ trợ VLAN, Spanning Tree Protocol (STP), bảo vệ mối đe dọa nâng cao, bảo mật IPv6 First-Hop, chất lượng dịch vụ (QoS), giám sát lưu lượng sFlow, định tuyến tĩnh IPv4/IPv6
Quản lý mạng: Cisco Business Dashboard, giao diện quản lý trên thiết bị, CLI, SNMP

Thông số kỹ thuật của Switch Cisco CBS350-48FP-4X-EU

Capacity in Millions of Packets per Second (mpps) (64-byte packets)	130.94
Switching Capacity in Gigabits per Second (Gbps)	176.0
Layer 2 Switching	Spanning Tree Protocol Port grouping/link aggregation - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN -Support for up to 4,094 VLANs simultaneously -Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN -Management VLAN -Private VLAN with promiscuous, isolated, and community port -Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks -Guest VLAN, unauthenticated VLAN -Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication -CPE VLAN Voice VLAN Multicast TV VLAN VLAN Translation Q-in-Q Selective Q-in-Q Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Unidirectional Link Detection (UDLD) Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP Querier Head-of-Line (HOL) blocking Loopback DetectioN
Layer 3	IPv4 routing -Wirespeed routing of IPv4 packets -Up to 990 static routes and up to 128 IP interfaces IPv6 routing Layer 3 Interface -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface Classless Interdomain Routing (CIDR) Policy-Based Routing (PBR) DHCP Server DHCP relay at Layer 3 User Datagram Protocol (UDP) relay
Stacking
Hardware stack	Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover
High availability	Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack
Plug-and-play stacking configuration/management	Master/backup for resilient stack control Autonumbering Hot swap of units in stack Ring and chain stacking options, auto stacking port speed, flexible stacking port options
High-speed stack interconnects	Cost-effective high-speed 10G fiber interfaces.
Security	Secure Shell (SSH) Protocol Secure Sockets Layer (SSL) IEEE 802.1X (Authenticator role) Web-based authentication STP Bridge Protocol Data Unit (BPDU) Guard STP Root Guard STP loopback guard DHCP snooping IP Source Guard (IPSG) Dynamic ARP Inspection (DAI) IP/MAC/Port Binding (IPMB) Secure Core Technology (SCT) Secure Sensitive Data (SSD) Trustworthy systems Private VLAN Layer 2 isolation Private VLAN Edge (PVE) with community VLAN Port security RADIUS/TACACS+ RADIUS accounting Storm control DoS prevention Multiple user privilege levels in CLI ACLs Support for up to 1,024 rules
Management	Web user interface SNMP Remote Monitoring (RMON) IPv4 and IPv6 dual stack Firmware upgrade Port mirroring VLAN mirroring DHCP (options 12, 66, 67, 82, 129, and 150) Secure Copy (SCP) Autoconfiguration with Secure Copy (SCP) file download Text-editable config files Smartports Auto Smartports Textview CLI Cloud services Embedded Probe for Cisco Business Dashboard Cisco Network Plug and Play (PnP) agent Localization Login banner Other management
Power over Ethernet (PoE)
Power Dedicated to PoE	740W
Number of Ports That Support PoE	48
Power consumption
System Power Consumption	110V=76.18W 220V=76.22W
Power Consumption (with PoE)	110V=889.35W 220V=865.02W
Heat Dissipation (BTU/hr)	3,034.59
Hardware
Total System Ports	48 Gigabit Ethernet + 4 10Gigabit Ethernet
RJ-45 Ports	48 Gigabit Ethernet
Combo Ports(RJ 45 + Small form-factor pluggable [SFP])	4 SFP+
Console port	Cisco Standard mini USB Type-B / RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
Packet buffer	3 MB
Environmental
Unit dimensions (W x H x D)	445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Unit weight	5.82 kg (12.83 lb)
Power	100-240V 50-60 Hz, internal, universal
Certification	23° to 122°F (-5° to 50°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN	1
Acoustic Noise	25°C: 48.7 dBA
MTBF at 25°C (hours)	856,301
