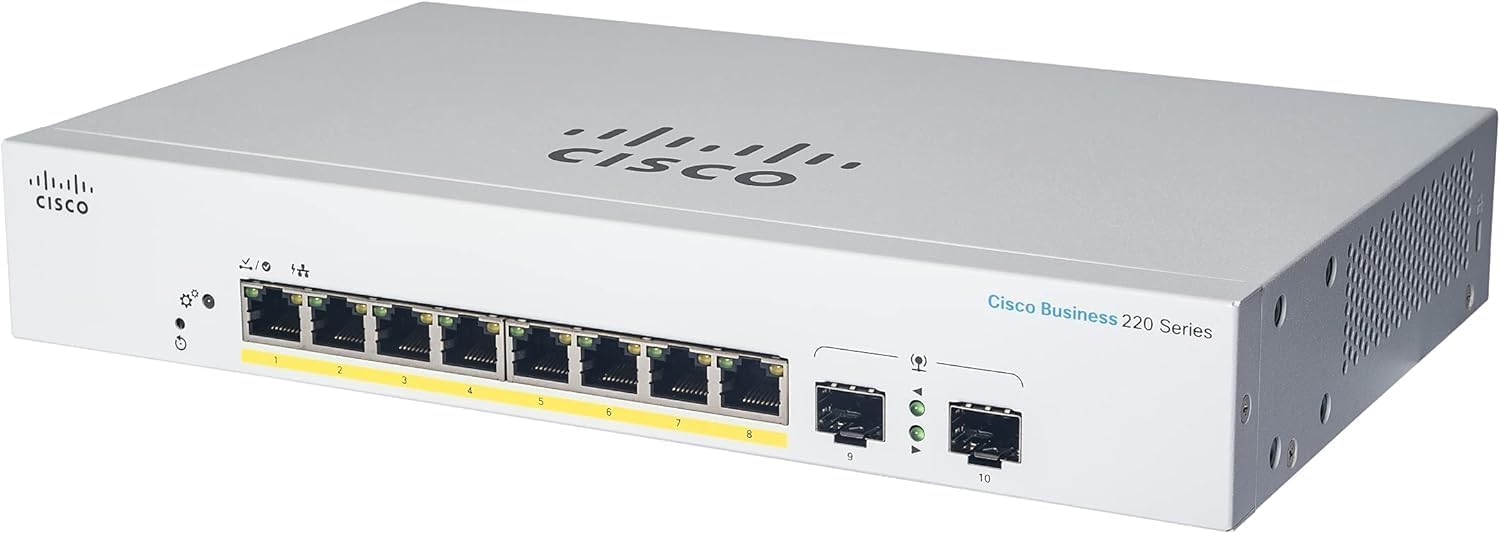

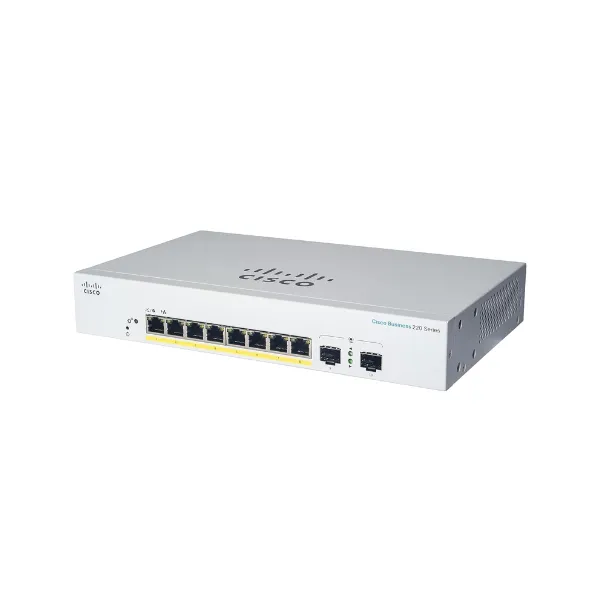

Switch Cisco CBS220-8P-E-2G-EU
- Cổng mạng: 8 x 1G
- Cổng uplink: 2 x 1G SFP
- PoE: PoE+ (65W)
- Quạt: Không có quạt
- Cung cấp nguồn: Nguồn ngoài
Description
Cisco CBS220-8P-E-2G-EU là thiết bị chuyển mạch thông minh thuộc dòng sản phẩm CBS220, cung cấp 8 cổng 10/100/1000 PoE+ với công suất 65W và 2 cổng uplink 1G SFP, mang đến kết nối mạng ổn định và hiệu suất cao cho các văn phòng hoặc doanh nghiệp nhỏ.
Với mức giá phải chăng, CBS220-8P-E-2G-EU dễ dàng triển khai và quản lý qua giao diện web trực quan. Bảng điều khiển thân thiện với người dùng giúp quản trị viên dễ dàng tùy chỉnh giao diện và các tính năng, từ đó quản lý hệ thống mạng một cách chủ động mà không cần đến phần cứng riêng biệt hay các máy ảo phức tạp.
Cisco CBS220-8P-E-2G-EU hỗ trợ cấp nguồn qua PoE+, tính năng QoS, và tích hợp các giải pháp bảo mật nâng cao. Thiết bị được thiết kế tiết kiệm năng lượng, tối ưu hóa việc sử dụng điện mà không làm ảnh hưởng đến hiệu suất, giúp giảm chi phí tiêu thụ điện và bảo vệ môi trường. CBS220-8P-E-2G-EU còn hỗ trợ tiêu chuẩn IEEE 802.3az, giúp giám sát và giảm tải lưu lượng mạng trên mỗi kết nối.

Đặc điểm của Switch Cisco CBS220-8P-E-2G-EU
- Cổng mạng: 8 x 1G
- Cổng uplink: 2 x 1G SFP
- PoE: PoE+ (65W)
- Quạt: Không có quạt
- Cung cấp nguồn: Nguồn ngoài
- Tính năng:
- Layer 2 switching, hỗ trợ VLAN, Spanning Tree Protocol (STP)
- Chất lượng dịch vụ (QoS)
- Quản lý mạng: Giao diện người dùng trên thiết bị, Cisco Business Dashboard và ứng dụng di động
Thông số kỹ thuật của Switch Cisco CBS220-8P-E-2G-EU
Performance | |
Forwarding rate in millions of packets per second (mpps; 64-byte packets) | 14.88 Mpps |
Switching Capacity in Gigabits per Second | 20 Gbps |
Layer 2 Switching | MAC table: – Up to 8,192 Media Access Control (MAC) addresses Spanning Tree Protocol: – Standard 802.1d Spanning Tree support, enabled by default – Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]) – Multiple Spanning Tree instances using 802.1s (MSTP) – 16 instances are supported Port grouping/link aggregation: – Up to 8 groups – Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN – Support for up to 256 Virtual Local Area Networks (VLANs) simultaneously – Port-based and 802.1Q tag-based VLANs – Management VLAN – Guest VLAN Auto voice VLAN QinQ VLAN Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Head-of-Line (HOL) blocking: HOL blocking prevention Jumbo frame: Frame sizes up to 9,216 supported Loopback detection Automatic Media-Dependent Interface Crossover (MDIX) |
Security | ACLs Support for up to 512 rules Port security IEEE 802.1X (Authenticator role) RADIUS, TACACS+ MAC address filtering Storm control DoS protection STP Bridge Protocol Data Unit (BPDU) Guard Spanning Tree Loop Guard Secure Shell (SSH) Protocol Secure Sockets Layer (SSL) |
Management | Cisco Business Dashboard Cisco Business mobile app Cisco Network Plug and Play (PnP) agent Web user interface Text-editable config files Command-line interface SNMP Standard Management Information Bases (MIBs) Remote Monitoring (RMON) IPv4 and IPv6 dual stack Port mirroring DHCP (Option 12, 66, 67, 82, 129, and 150) Time synchronization Login banner HTTP/HTTPS; TFTP upgrade; DHCP client; Bootstrap Protocol (BOOTP); cable diagnostics; ping; traceroute; syslog |
Power over Ethernet (PoE) | |
Power Dedicated to PoE | 65W |
Number of Ports That Support PoE | 8 Ports |
Power consumption | |
System Power Consumption | 110V=7.8W 220V=8.2W |
Power Consumption (with PoE) | 110V=81.2W 220V=81.6W |
Heat Dissipation (BTU/hr) | 278.43 |
Hardware | |
Total System Ports | 10 x Gigabit Ethernet |
RJ-45 Ports | 8 x Gigabit Ethernet |
Uplink ports | 2 x Gigabit SFP |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed |
Flash | 64 MB |
Memory | 256 MB |
Packet buffer | 4.1 Mb |
Environmental | |
Unit dimensions (W x H x D) | 279 x 170 x 44 mm (11.0 x 6.7 x 1.7 in) |
Unit weight | 1.18 kg (2.60 lb) |
Power | 100-240V, 50-60 Hz, internal, universal |
Storage temperature | -20° C to +70° C |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Acoustic noise and Mean Time Between Failure (MTBF) | |
Fan (number) | Fanless |
Acoustic Noise | N/A |
MTBF at 25°C (hours) | 315,326 |
