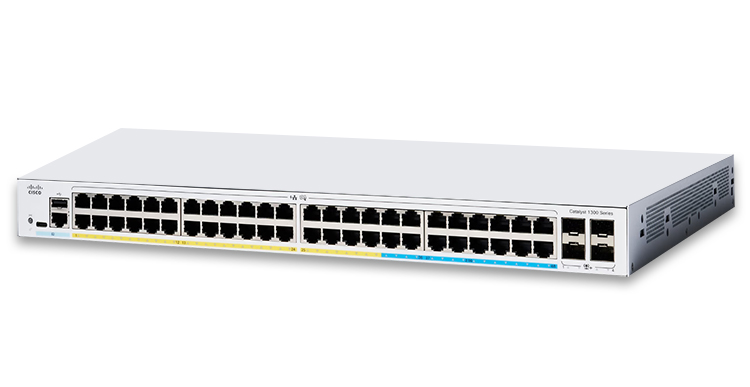

Switch Cisco C1300-48FP-4G
- 48 ports GE hỗ trợ PoE+ 30W
- 4 ports SFP uplinks
- Cấp nguồn PoE+ tối đa lên tới 740W
- Băng thông chuyển mạch: 104 Gbps
- Tốc độ chuyển tiếp(gói): 77.38 Mpps
- Dòng Cisco C1300-48FP-4G có thể thay thế cho các dòng Switch trước đó như CBS350-48FP-4G-EU
Description
Cisco C1300-48FP-4G là thiết bị chuyển mạch mạnh mẽ, đáp ứng nhu cầu kết nối của doanh nghiệp hiện đại. Với hiệu suất cao và tính năng đa dạng, sản phẩm này phù hợp với doanh nghiệp ở mọi quy mô.

Đặc điểm của Switch Cisco C1300-48FP-4G
- 48 ports GE hỗ trợ PoE+ 30W
- 4 ports SFP uplinks
- Cấp nguồn PoE+ tối đa lên tới 740W
- Băng thông chuyển mạch: 104 Gbps
- Tốc độ chuyển tiếp(gói): 77.38 Mpps
- Quản lý bằng Cloud, Mobile app, CLI hoặc Web UI
- Truy cập qua Bluetooth, SNMP hoặc Console
- Dễ quản lý và triển khai (Plug and Play)
- Chức năng định tuyến lớp 3 (Static, RIP)
- Có khả năng xếp chồng (True stacking)
- Thiết kế nhỏ gọn, hiệu suất năng lượng cao (IEEE 802.3az)
- Bảo mật mạnh mẽ, khả năng phục hồi cao (IEEE 802.1X, IPMB, ARP, DHCP snoopin, IPSG, ACL, STP…)
- Dòng Cisco C1300-48FP-4G có thể thay thế cho các dòng Switch trước đó như CBS350-48FP-4G-EU
Tính năng nổi bật của Switch Cisco C1300-48FP-4G
Cấp nguồn qua Ethernet (PoE)
Switch hỗ trợ 48 cổng PoE theo chuẩn IEEE 802.3af và 802.3at, cung cấp điện trực tiếp cho thiết bị như điện thoại IP, camera giám sát, điểm truy cập không dây mà không cần nguồn điện riêng biệt. Điều này giúp đơn giản hóa triển khai và giảm chi phí.
Hiệu suất mạnh mẽ, kết nối linh hoạt
- Hỗ trợ 4 cổng Gigabit Ethernet uplink giúp tăng băng thông và đảm bảo tốc độ truyền dữ liệu ổn định.
- Hỗ trợ định tuyến Layer 3, giúp tối ưu hóa lưu lượng mạng và nâng cao hiệu suất hoạt động.
Quản lý dễ dàng, triển khai nhanh chóng
- Cisco Business Dashboard giúp giám sát và quản lý thiết bị một cách đơn giản, không cần cài đặt phần cứng hoặc máy ảo riêng.
- Plug & Play cho phép thiết lập mạng nhanh chóng, tự động triển khai và cập nhật mà không cần can thiệp thủ công.
- Hỗ trợ giao diện web trực quan, CLI, SNMP, Bluetooth để quản lý thiết bị linh hoạt từ xa.
Bảo mật mạnh mẽ
- Hỗ trợ IEEE 802.1X kiểm soát truy cập, chống tấn công DoS, bảo mật ARP, DHCP snooping, IP Source Guard.
- IPv6 First Hop Security bảo vệ mạng khỏi các mối đe dọa trên IPv6.
- Hỗ trợ ACL mở rộng giúp bảo vệ dữ liệu doanh nghiệp khỏi truy cập trái phép.
Thiết kế linh hoạt, tiết kiệm năng lượng
- Kích thước nhỏ gọn, dễ dàng lắp đặt tại nhiều không gian khác nhau.
- Công nghệ tiết kiệm năng lượng tối ưu, giúp giảm chi phí vận hành và thân thiện với môi trường.
Cisco C1300-48FP-4G không chỉ mang đến hiệu suất cao mà còn đảm bảo quản lý đơn giản, bảo mật tối ưu và tiết kiệm chi phí. Đây là lựa chọn lý tưởng cho doanh nghiệp muốn xây dựng hạ tầng mạng mạnh mẽ, ổn định và linh hoạt.
Thông số kỹ thuật của Switch Cisco C1300-48FP-4G
Specifications | |
Port | 48 x 1G Ethernet PoE+ ports 4 x 1G SFP Uplink ports |
Console port | Cisco standard RJ-45 console port and USB Type C port |
USB port | USB Type C port on the front panel of the switch for easy file and image management as well as console port |
PoE | 740W |
Performance | |
Switching capacity in Gigabits per second (Gbps) | 104 Gbps |
Capacity in Millions of Packets Per Second (mpps) (64-byte packets) | 77.38 Mpps |
Hardware | |
CPU | ARM dual-core at 1.4 GHz |
DRAM | 1 GB DDR4 |
Flash | 512 MB |
Packet buffer | 3 MB |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed |
Feature | |
Spanning Tree Protocol | Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported |
Port grouping/link aggregation | Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● Up to 8 groups ● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation |
VLAN | Support for up to 4093 VLANs simultaneously Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication Customer premises equipment (CPE) VLAN Auto surveillance VLAN (ASV) |
Voice VLAN | Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices |
Multicast TV VLAN | Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR) |
IPv4 routing | Wire-speed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces |
IPv6 routing | Wire-speed routing of IPv6 packets |
Layer 3 interface | Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface |
Routing Information Protocol (RIP) v2 | Support for RIP v2 for dynamic routing |
Policy-Based Routing (PBR) | Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL) |
DHCP server | Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes Support for DHCP options |
Environmental | |
Unit dimensions (W x H x D) | 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
Unit weight | 5.82 kg (12.83 lb) |
Power | 100-240V 50-60 Hz |
Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Operating temperature | 23° to 122°F (-5° to 50°C) |
Storage temperature | -13° to 158°F (-25° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Fan (number) | 1 |
MTBF at 25°C (hours) | 856,301 |
