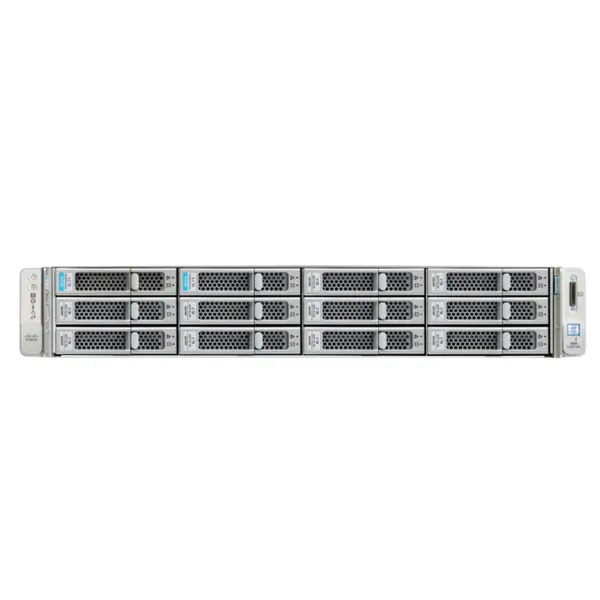

Server Cisco UCS C240 M5 LFF (UCSC-C240-M5L)

Model

UCSC-C240-M5L

Features

Processors

2 or 4

Processor supported

2nd Gen Intel® Xeon® Scalable
and Intel Xeon Scalable processors

Maximum memory

9 TB with Intel Optane™ PMem

Form factor

2 RU

Optional RAID

0, 1, 5, 6, 10, 50, 60

Integrated networking (I/O) - LOM

2 x 10 Gb ports plus 1 x Modular LOM (mLOM)
Dedicated OOB management port

PCIe expansion slots

Up to 6 PCIe Gen3 slots:
●  Riser 1 (PCIe slots 1, 2, and 3): 2 FH/HL x8 and FH/FL x16 or 2 FH/HL x8 and FH/FL x8
●  Riser 2 (PCIe slots 4, 5, and 6): FH 3/4L x16, FH/FL x16, FH/FL x8 or FH/HL x8, FH/FL x16, FH/FL x8 or FH 3/4L x8, FH/FL x8, FH/FL x8

Storage & Management

Internal storage

LFF - Up to 12 SAS/SATA/NVMe drives
Additional options: 2 x Cisco Flexible Flash drives (SD card) 2 x M.2 drives

Maximum internal storage

LFF - 216 TB + 2x M.2 960 GB

Management

●  Cisco Intersight™
●  Cisco IMC
●  Cisco IMC Supervisor
●  Cisco UCS Manager
●  Cisco UCS Central Software
●  Cisco UCS Director
●  Cisco UCS Performance Manager

Power and Environmental

Power supplies

Up to 2 x 770 W, 1050 W, 1050 W DC or 1600 W

Product dimensions

HxWxD: 3.4 x 17.6 x 29.1 in. (8.7 x 44.8 x 73.8 cm)
Weight: Bare = 35.5 lbs (16.1 kg); Maximum = 59.5 lbs (26.1 kg)

Operating Temperature

10oC to 35oC (50oF to 95oF) with no direct sunlight
Maximum allowable operating temperature derated 1oC/300 m (1oF/547 ft) above 950 m (3117 ft)

Non-Operating Temperature

-40oC to 65oC (-40oF to 149oF)
Maximum rate of change (operating and non-operating) 20oC/hr (36oF/hr)

Operating Relative Humidity

8% to 90% and 24oC (75oF) maximum dew-point temperature, non-condensing environment

Operating Altitude

0 m to 3050 m {10,000 ft)
