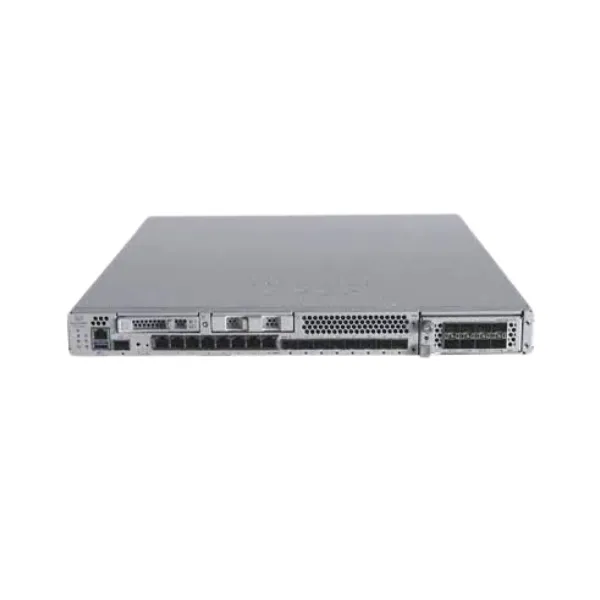

Cisco FPR3130-FTD-HA-BUN – Thiết bị tường lửa
-
8 cổng Ethernet 10M/100M/1GBASE-T (RJ-45)
-
8 cổng Ethernet 1/10/25 Gigabit (SFP)
-
8 cổng 1/10/25G, 4 cổng 40G Tùy chọn mô-đun mạng
-
Thông lượng (FW + AVC + IPS): 38 Gbps
-
Số phiên đồng thời tối đa: 6 triệu
-
Phần mềm Firewall Threat Defense (FTD)
Description
Cisco FPR3130-FTD-HA-BUN là thiết bị tường lửa có 8 cổng Ethernet 10M/100M/1GBASE-T (RJ-45) và 8 cổng Ethernet SFP hỗ trợ tốc độ 1/10/25G.
-
Tùy chọn mô-đun mạng: 8 cổng 1/10/25G, 4 cổng 40G
-
Thông lượng (FW + AVC + IPS): 38 Gbps
-
Số phiên đồng thời tối đa: 6 triệu
-
Phần mềm Firewall Threat Defense (FTD)
-
Bộ nhớ hệ thống: 4 x 32 GB
-
Kích thước (C x R x D): 4.4 x 43.3 x 50.8 cm
-
Dạng thức (số đơn vị rack): 1RU
-
Quạt tản nhiệt: 2 mô-đun quạt có thể thay nóng (mỗi mô-đun gồm 2 quạt)
-
Lắp đặt rack:
-
Có hỗ trợ, giá đỡ cố định tùy chọn
-
Hỗ trợ lắp đặt trên giá 2-post
-
Đi kèm thanh ray lắp đặt cho giá 4-post chuẩn EIA-310-D
-
-
Trọng lượng: 10.5 kg (bao gồm 1 nguồn, 1 mô-đun mạng, 1 mô-đun quạt, 1 ổ SSD)
Thông số kỹ thuật của Cisco FPR3130-FTD-HA-BUN – Thiết bị tường lửa
| Model | FPR3130-FTD-HA-BUN |
| Interfaces | • 8 x RJ45, 8 x 1/10/25G SFP+ |
| Optional interfaces | • 10G/25G/40G SFP+, 4X40G NM |
| Performance and capabilities, running on Firewall Threat Defense (FTD) software | |
| Throughput: FW + AVC (1024B) | • 38.0 Gbps |
| Throughput: FW + AVC + IPS (1024B) | • 38.0 Gbps |
| Maximum concurrent sessions, with AVC | • 6 million |
| Maximum new connections per second, with AVC | • 240,000 |
| TLS | • 9.1 Gbps |
| Throughput: IPS (1024B) | • 38.0 Gbps |
| IPSec VPN Throughput (1024B TCP w/Fastpath) | • 17.8 Gbps |
| Projected IPSec VPN Throughput (1024B TCP w/Fastpath) with VPN Offload (FTD 7.2) |
• 33.0 Gbps |
| Maximum VPN Peers | • 15,000 |
| Local On-device Management | • Yes |
| Centralized management | • Centralized configuration, logging, monitoring, and reporting are performed by the Firewall Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Application Visibility and Control (AVC) | • Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
| Cisco Security Intelligence | • Standard, with IP, URL, and DNS threat intelligence |
| Cisco Secure IPS | • Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Malware Defense | • Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available |
| Cisco Secure Malware Analytics | • Available |
| URL Filtering: number of categories | • More than 80 |
| URL Filtering: number of URLs categorized | • More than 280 million |
| High availability and clustering | • Active/active, Active/standby. Cisco Secure Firewall 3100 Series allows clustering of up to 8 chassis |
| Hardware specifications | |
| Processor | • AMD 7352 |
| Core count | • 24 |
| Core clock | • 2.3 GHz |
| System memory | • 4 x 32 GB |
| Dimensions (H x W x D) | • 4.4 x 43.3 x 50.8 cm |
| Form factor (rack units) | • 1RU |
| Integrated network management ports | • 1 x 1/10G SFP |
| Serial port | • 1 x RJ-45 console |
| USB | • 1 x USB 3.0 Type-A (900mA) |
| Storage | • 1x 900 GB, 1x spare slot |
| Power supply configuration | • Single 400W AC, Dual 400W AC optional. • Single/Dual 400W DC optional |
| AC input voltage | • 100 to 240V AC |
| AC maximum input current | • < 6A at 100V |
| AC maximum output power | • 400W |
| AC frequency | • 50 to 60 Hz |
| AC efficiency | • >89% at 50% load |
| DC input voltage | • -48V to -60VDC |
| DC maximum input current | • < 12.5A at -48V |
| DC maximum output power | • 400W |
| DC efficiency | • >88% at 50% load |
| Redundancy | • 1+1 AC or DC with dual supplies |
| Fans | • 2 hot-swappable fan modules (with 2 fans each) |
| Noise | • 65 dBA@ 25C • 74 dBA maximum |
| Rack mountable | • Yes. Fixed mount brackets optional. • (2- post). Mount rails included (4-post EIA- 310-D rack) |
| Weight | • 10.5 kg 1 x power supplies, 1 x NM, fan module, 1x SSD |
| Temperature: operating | • 32 to 104°F (0 to 40°C) |
| Temperature: nonoperating | • -4 to 149°F (-20 to 65°C) |
| Humidity: operating | • 10 to 85% noncondensing |
| Humidity: nonoperating | • 5 to 95% noncondensing |
| Altitude: operating | • 10,000 ft (max) |
| Altitude: nonoperating | • 40,000 ft (max) |
Additional information
| Thương hiệu | |
|---|---|
| Bảo hành | 12 tháng |
