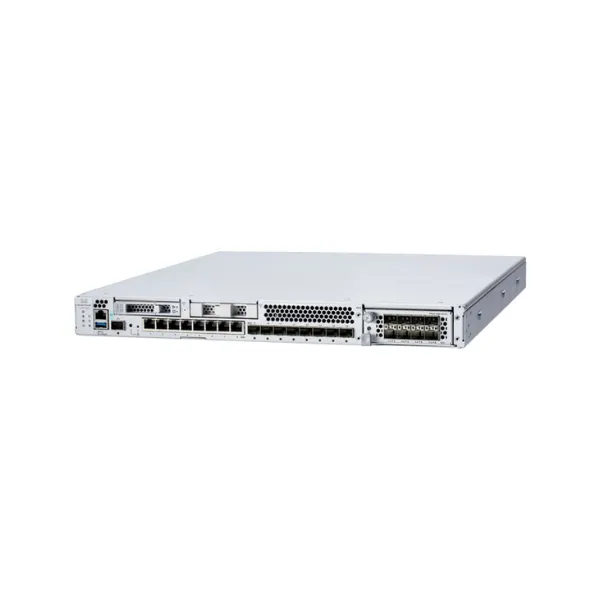

Cisco FPR3120-FTD-HA-BUN – Thiết bị tường lửa
Liên hệ
-
8 cổng Ethernet 10M/100M/1GBASE-T (RJ-45)
-
8 cổng Ethernet 1/10 Gigabit (SFP)
-
8 tùy chọn mô-đun mạng 1/10G
-
Thông lượng (FW + AVC + IPS): 21 Gbps
-
Số phiên đồng thời tối đa: 4 triệu
Mô tả
Thuộc Tính
Thông tin bổ sung
Description
Thiết bị tường lửa Cisco FPR3120-FTD-HA-BUN Secure Firewall 3120 Two Unit High Availability Bundle (bao gồm 2 khung thiết bị tường lửa và các gói phần mềm được cấu hình như một cặp tường lửa dự phòng cao). Cisco FPR3120-FTD-HA-BUN là một cặp thiết bị tường lửa có phần cứng và phần mềm đồng nhất, dễ dàng cấu hình thành chế độ HA, mang lại khả năng dự phòng cao, đảm bảo hoạt động liên tục và ổn định cho hệ thống mạng.
-
8 cổng Ethernet 10M/100M/1GBASE-T (RJ-45)
-
8 cổng Ethernet 1/10 Gigabit (SFP)
-
8 tùy chọn mô-đun mạng 1/10G
-
Thông lượng (FW + AVC + IPS): 21 Gbps
-
Số phiên đồng thời tối đa: 4 triệu
-
Phần mềm bảo vệ tường lửa Firewall Threat Defense (FTD)
Thông số kỹ thuật của Cisco FPR3120-FTD-HA-BUN – Thiết bị tường lửa
| Model | FPR3120-FTD-HA-BUN |
| Interfaces | • 8 x RJ45, 8 x 1/10G SFP+ |
| Optional interfaces | • 10G SFP+ |
| Performance and capabilities, running on Firewall Threat Defense (FTD) software | |
| Throughput: FW + AVC (1024B) | • 21.0 Gbps |
| Throughput: FW + AVC + IPS (1024B) | • 21.0 Gbps |
| Maximum concurrent sessions, with AVC | • 4 million |
| Maximum new connections per second, with AVC | • 170,000 |
| TLS | • 6.7 Gbps |
| Throughput: IPS (1024B) | • 21.0 Gbps |
| IPSec VPN Throughput (1024B TCP w/Fastpath) | • 10 Gbps |
| Projected IPSec VPN Throughput (1024B TCP w/Fastpath) with VPN Offload (FTD 7.2) |
• 13.5 Gbps |
| Maximum VPN Peers | • 6,000 |
| Local On-device Management | • Yes |
| Centralized management | • Centralized configuration, logging, monitoring, and reporting are performed by the Firewall Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Application Visibility and Control (AVC) | • Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
| Cisco Security Intelligence | • Standard, with IP, URL, and DNS threat intelligence |
| Cisco Secure IPS | • Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Malware Defense | • Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available |
| Cisco Secure Malware Analytics | • Available |
| URL Filtering: number of categories | • More than 80 |
| URL Filtering: number of URLs categorized | • More than 280 million |
| High availability and clustering | • Active/active, Active/standby. Cisco Secure Firewall 3100 Series allows clustering of up to 8 chassis |
| Hardware specifications | |
| Processor | • AMD 7282 |
| Core count | • 16 |
| Core clock | • 2.8 GHz |
| System memory | • 2 x 64 GB |
| Dimensions (H x W x D) | • 4.4 x 43.3 x 50.8 cm |
| Form factor (rack units) | • 1RU |
| Integrated network management ports | • 1 x 1/10G SFP |
| Serial port | • 1 x RJ-45 console |
| USB | • 1 x USB 3.0 Type-A (900mA) |
| Storage | • 1x 900 GB, 1x spare slot |
| Power supply configuration | • Single 400W AC, Dual 400W AC optional. • Single/Dual 400W DC optional |
| AC input voltage | • 100 to 240V AC |
| AC maximum input current | • < 6A at 100V |
| AC maximum output power | • 400W |
| AC frequency | • 50 to 60 Hz |
| AC efficiency | • >89% at 50% load |
| DC input voltage | • -48V to -60VDC |
| DC maximum input current | • < 12.5A at -48V |
| DC maximum output power | • 400W |
| DC efficiency | • >88% at 50% load |
| Redundancy | • 1+1 AC or DC with dual supplies |
| Fans | • 2 hot-swappable fan modules (with 2 fans each) |
| Noise | • 65 dBA@ 25C • 74 dBA maximum |
| Rack mountable | • Yes. Fixed mount brackets optional. • (2- post). Mount rails included (4-post EIA- 310-D rack) |
| Weight | • 10.5 kg 1 x power supplies, 1 x NM, fan module, 1x SSD |
| Temperature: operating | • 32 to 104°F (0 to 40°C) |
| Temperature: nonoperating | • -4 to 149°F (-20 to 65°C) |
| Humidity: operating | • 10 to 85% noncondensing |
| Humidity: nonoperating | • 5 to 95% noncondensing |
| Altitude: operating | • 10,000 ft (max) |
| Altitude: nonoperating | • 40,000 ft (max) |
Additional information
| Thương hiệu | |
|---|---|
| Bảo hành | 12 tháng |
