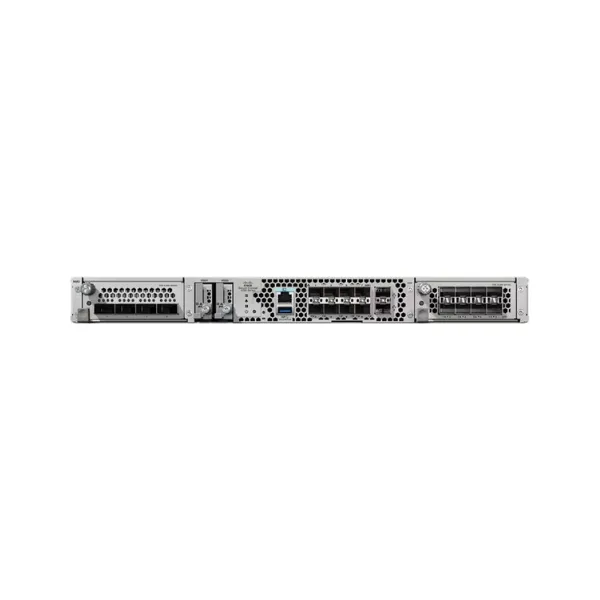

Cisco Firepower FPR4245-ASA-K9 – Thiết bị tường lửa

Name: Cisco Firepower FPR4245-ASA-K9 - Thiết bị tường lửa | Chính hãng, giá tốt
Brand: Cisco
SKU: FPR4245-ASA-K9
Price: 1 VND
Availability: InStock
Rating: 5 (31 reviews)

Liên hệ

Cổng giao diện: 8 x 1/10/25G (SFP28), 2 x 1/10/25G (SFP28) Manage, 1 x RJ-45 Console, 1 x USB 3.0
Tùy chọn mô-đun mạng: 2 x NM: 1/10/40/100G
Lưu trữ (SSD): 2 x 1.8 TB
Kiểu dáng: Rack mount (Rack 1U)

Mô tả

Cisco Firepower FPR4245-ASA-K9 là thiết bị tường lửa cao cấp, cung cấp khả năng bảo vệ mạng hiệu quả với thông lượng lên tới 180 Gbps, thích hợp cho các trung tâm dữ liệu lớn và các tổ chức có nhu cầu bảo mật cao. Thiết bị này có thể xử lý lượng kết nối đồng thời lớn, lên đến 80 triệu kết nối, và hỗ trợ VPN IPSec lên tới 70 Gbps, đảm bảo bảo mật cho các kết nối từ xa và liên kết site-to-site.

Đặc điểm của Cisco Firepower FPR4245-ASA-K9

Cổng giao diện: 8 x 1/10/25G (SFP28), 2 x 1/10/25G (SFP28) Manage, 1 x RJ-45 Console, 1 x USB 3.0
Tùy chọn mô-đun mạng: 2 x NM: 1/10/40/100G
Lưu trữ (SSD): 2 x 1.8 TB
Kiểu dáng: Rack mount (Rack 1U)
Thông lượng tường lửa (Stateful firewall throughput): 180 Gbps
Kết nối đồng thời (Concurrent firewall connections): 80 Million
Thông lượng VPN IPSec (IPSec VPN Throughput): 70 Gbps
VPN ngang hàng tối đa (Maximum VPN peers): 30,000
Phần mềm tích hợp: ASA (Adaptive Security Appliance)
License tùy chọn: L-FPR4200-ENC-K9=, L-FPR4200-ASASC10=

Thông số kỹ thuật của Cisco Firepower FPR4245-ASA-K9 – Thiết bị tường lửa

Model	FPR4245-ASA-K9
Dimensions (H x W x D)	• 4.39 x 42.9 x 81.28 cm
Form factor (rack units)	• 1RU
Fixed Ports	• 8 x 1/10/25 Gigabit Ethernet ports (SFP28)
Integrated Network Management Ports	• 2 x 1/10/25 Gigabit Ethernet ports (SFP28)
Network modules	• 8-port 1Gbps copper, FTW (fail to wire) Network Module ◦ Ports that are not configured as FTW can be used as regular 1 Gb copper ports • 8 x 1/10 Gigabit Ethernet Small Form-Factor Pluggable (SFP+) network modules • 8 x 1/10/25 Gigabit Ethernet Small Form-Factor Pluggable (SFP28) network modules • 4 x 40 Gigabit Ethernet Quad SFP+ network modules • 4 x 40/100/200 Gigabit Ethernet Quad SFP28 (QSFP28) network modules • 2 x 100G Gigabit Ethernet QSFP SFP28 network modules • 6-port 10Gbps SR Fiber FTW (fail to wire) Network Module • 6-port 10Gbps LR Fiber FTW (fail to wire) Network Module • 6-port 25Gbps LR Fiber FTW (fail to wire) Network Module • 6-port 25Gbps SR Fiber FTW (fail to wire) Network Module
Maximum number of interfaces	• Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces • Up to 8 x 25 Gigabit Ethernet (SFP28) interfaces with 2 network modules • Up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules • Up to 24 x 1 Gigabit Ethernet ports (SFP) with 2 network modules and fixed ports • Up to 8 x 100 Gigabit Ethernet (QSFP28) interfaces with 2 network modules
Serial port	• 1 x RJ-45 console
USB	• 1 x USB 2.0
Storage	• 1.8 TB x 2
*Power supplies*
Configuration	• Dual: 1900W for 220 AC, 1200W for 110 AC
AC input voltage	• Only 200 to 240 VAC (high line)
AC maximum input current	• 14A, @ 100VAC or @ 200VAC
AC maximum Input power	• 1380W
AC frequency	• 50/60 Hz (nominal)
AC efficiency	• > 90% (Platinum)
Redundancy	• 1+1
Fans	• 3 Dual fan modules (FRU). Each module has two fans
Noise	• Sound Pressure: <=78 dBA (typical), <= 84 dBA (maximum) • Sound Power: <=87 dB (typical), <=92 dB (maximum)
Rack mountable	• Yes, mount rails included (4-post EIA-310-D rack)
Weight	• 4245: 46 lbs (20.8 kgs): 2 x power supplies, 2 x NMs, 3 x fan-modules; 36 lbs (16.3 kgs): no power supplies, no NMs, no fans
Temperature: operating	• 32 to 104°F (0 to 40°C), at sea level
Temperature: nonoperating	• -40 to 149°F (-40 to 65°C)
Humidity: operating	• 5 to 95% noncondensing
Humidity: nonoperating	• 5 to 95% noncondensing
Altitude: operating	• 10,000 ft (max)
Altitude: nonoperating	• 40,000 ft (max)
ASA Performance and capabilities on Cisco Secure Firewall 4200 appliances
Stateful inspection firewall throughput	• 180 Gbps
Stateful inspection firewall throughput (multiprotocol)	• 100 Gbps
Concurrent firewall connections	• 80 Million
New connections per second	• 2.0 Million
Max. IPSec VPN throughput (450 Byte UDP L2L test, ASA)	• 70 Gbps
Maximum VPN Peers	• 30000
Security contexts (included; maximum)	• 2; 250
High Availability	• Active/active and active/ standby
Clustering	• 8
Scalability	• VPN Load Balancing
Centralized management	• Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator
Adaptive Security Device Manager	• Web-based, local management for small-scale deployments
