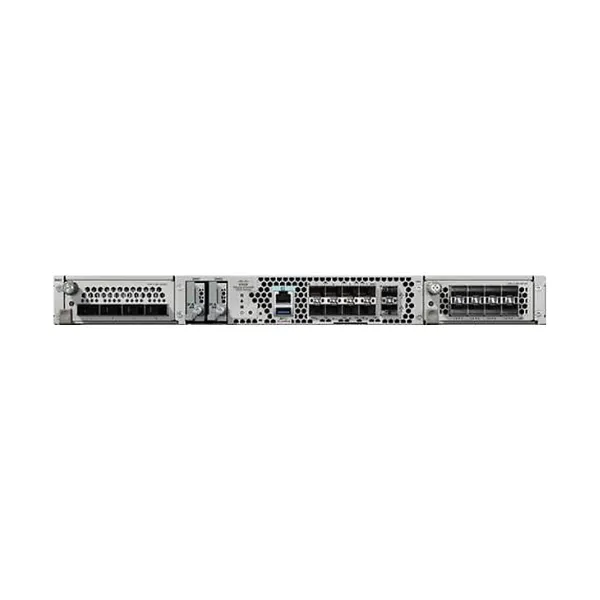

Cisco Firepower FPR4225-ASA-K9 – Thiết bị tường lửa
Liên hệ
- Giao diện: 8 x 1/10/25G (SFP28), 2 x 1/10/25G (SFP28) Manage, 1 x RJ-45 console, 1 x USB 3.0
- Tùy chọn Network module : 2 x NM: 1/10/40/100G, FTW
- Lưu trữ (SSD): 2 x 1.8 TB, Kiểu dáng Rack mount (Rack 1U)
- Tích hợp phần mềm ASA
Mô tả
Thuộc Tính
Thông tin bổ sung
Description
Cisco Firepower FPR4225-ASA-K9 là thiết bị tường lửa cao cấp, được thiết kế để đáp ứng nhu cầu bảo mật cho các doanh nghiệp lớn, trung tâm dữ liệu và nhà cung cấp dịch vụ, mang đến hiệu suất bảo mật vượt trội và khả năng mở rộng linh hoạt.
Đặc điểm của Cisco Firepower FPR4225-ASA-K9
- Cổng giao diện: 8 x 1/10/25G (SFP28), 2 x 1/10/25G (SFP28) Manage, 1 x RJ-45 Console, 1 x USB 3.0
- Tùy chọn mô-đun mạng: 2 x NM: 1/10/40/100G
- Lưu trữ (SSD): 2 x 1.8 TB
- Kiểu dáng: Rack mount (Rack 1U)
- Thông lượng tường lửa (Stateful firewall throughput): 95 Gbps
- Kết nối đồng thời (Concurrent firewall connections): 80 triệu kết nối
- Thông lượng VPN IPSec (IPSec VPN Throughput): 60 Gbps
- VPN ngang hàng tối đa (Maximum VPN peers): 25,000
- Phần mềm tích hợp: ASA (Adaptive Security Appliance)
- License tùy chọn: L-FPR4200-ENC-K9=, L-FPR4200-ASASC10=
Thông số kỹ thuật của Cisco Firepower FPR4225-ASA-K9 – Thiết bị tường lửa
| Model | FPR4225-ASA-K9 |
| Dimensions (H x W x D) | • 4.39 x 42.9 x 81.28 cm |
| Form factor (rack units) | • 1RU |
| Fixed Ports | • 8 x 1/10/25 Gigabit Ethernet ports (SFP28) |
| Integrated Network Management Ports | • 2 x 1/10/25 Gigabit Ethernet ports (SFP28) |
| Network modules | • 8-port 1Gbps copper, FTW (fail to wire) Network Module ◦ Ports that are not configured as FTW can be used as regular 1 Gb copper ports • 8 x 1/10 Gigabit Ethernet Small Form-Factor Pluggable (SFP+) network modules • 8 x 1/10/25 Gigabit Ethernet Small Form-Factor Pluggable (SFP28) network modules • 4 x 40 Gigabit Ethernet Quad SFP+ network modules • 4 x 40/100/200 Gigabit Ethernet Quad SFP28 (QSFP28) network modules • 2 x 100G Gigabit Ethernet QSFP SFP28 network modules • 6-port 10Gbps SR Fiber FTW (fail to wire) Network Module • 6-port 10Gbps LR Fiber FTW (fail to wire) Network Module • 6-port 25Gbps LR Fiber FTW (fail to wire) Network Module • 6-port 25Gbps SR Fiber FTW (fail to wire) Network Module |
| Maximum number of interfaces | • Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces • Up to 8 x 25 Gigabit Ethernet (SFP28) interfaces with 2 network modules • Up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules • Up to 24 x 1 Gigabit Ethernet ports (SFP) with 2 network modules and fixed ports • Up to 8 x 100 Gigabit Ethernet (QSFP28) interfaces with 2 network modules |
| Serial port | • 1 x RJ-45 console |
| USB | • 1 x USB 2.0 |
| Storage | • 1.8 TB x 2 |
| Power supplies | |
| Configuration | • Dual: 1900W for 220 AC, 1200W for 110 AC |
| AC input voltage | • 100 to 120 VAC (low line) or 200 to 240 VAC (high line) |
| AC maximum input current | • 14A, @ 100VAC or @ 200VAC |
| AC maximum Input power | • 870W |
| AC frequency | • 50/60 Hz (nominal) |
| AC efficiency | • > 90% (Platinum) |
| Redundancy | • 1+1 |
| Fans | • 3 Dual fan modules (FRU). Each module has two fans |
| Noise | • Sound Pressure: <=78 dBA (typical), <= 84 dBA (maximum) • Sound Power: <=87 dB (typical), <=92 dB (maximum) |
| Rack mountable | • Yes, mount rails included (4-post EIA-310-D rack) |
| Weight | • 4225: 43 lbs (19.5 kgs): 2 x power supplies, 2 x NMs, 3 x fan-modules; 33 lbs (15 kgs): no power supplies, no NMs, no fans |
| Temperature: operating | • 32 to 104°F (0 to 40°C) or NEBS operation (see below) |
| Temperature: nonoperating | • -40 to 149°F (-40 to 65°C) |
| Humidity: operating | • 5 to 95% noncondensing |
| Humidity: nonoperating | • 5 to 95% noncondensing |
| Altitude: operating | • 10,000 ft (max) |
| Altitude: nonoperating | • 40,000 ft (max) |
| ASA Performance and capabilities on Cisco Secure Firewall 4200 appliances | |
| Stateful inspection firewall throughput | • 95 Gbps |
| Stateful inspection firewall throughput (multiprotocol) | • 85 Gbps |
| Concurrent firewall connections | • 80 Million |
| New connections per second | • 1.7 Million |
| Max. IPSec VPN throughput (450 Byte UDP L2L test, ASA) | • 60 Gbps |
| Maximum VPN Peers | • 25000 |
| Security contexts (included; maximum) | • 2; 250 |
| High Availability | • Active/active and active/ standby |
| Clustering | • 8 |
| Scalability | • VPN Load Balancing |
| Centralized management | • Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
| Adaptive Security Device Manager | • Web-based, local management for small-scale deployments |
Additional information
| Thương hiệu | |
|---|---|
| Bảo hành | 12 tháng |
