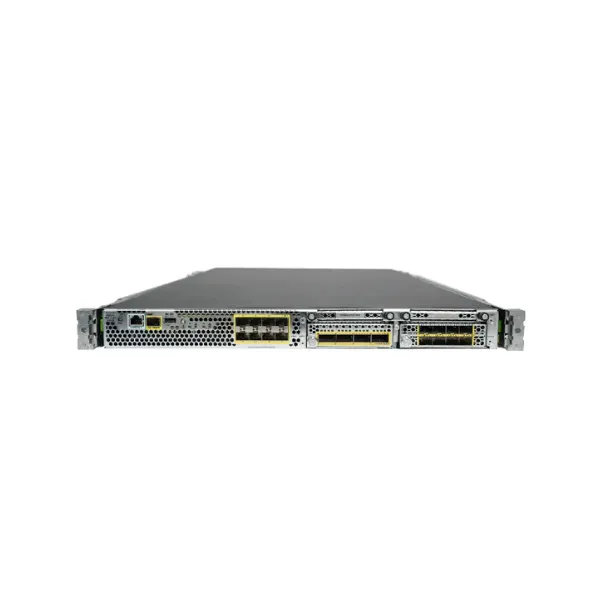

Cisco Firepower FPR4145-NGFW-K9 – Thiết bị tường lửa
Liên hệ
-
Giao diện: 8 cổng 10G SFP+, 1 cổng SFP quản lý, 1 cổng RJ-45 console, 1 cổng USB 2.0
-
Tùy chọn mô-đun mạng: 2 mô-đun 1/10/40/100G, FTW
-
Lưu trữ (SSD): 1 x 800 GB
-
Kiểu dáng: Rack mount (Rack 1U)
-
Thông lượng tường lửa: 53 Gbps
-
Thông lượng VPN IPSec: 24 Gbps
Mô tả
Thuộc Tính
Thông tin bổ sung
Description
Cisco Firepower FPR4145-NGFW-K9 là thiết bị tường lửa dành cho doanh nghiệp lớn và trung tâm dữ liệu
Đặc điểm của Cisco Firepower FPR4145-NGFW-K9
-
Giao diện: 8 cổng 10G SFP+, 1 cổng SFP quản lý, 1 cổng RJ-45 console, 1 cổng USB 2.0
-
Tùy chọn mô-đun mạng: 2 mô-đun 1/10/40/100G, FTW
-
Lưu trữ (SSD): 1 x 800 GB
-
Kiểu dáng: Rack mount (Rack 1U)
-
Thông lượng tường lửa: 53 Gbps
-
Thông lượng VPN IPSec: 24 Gbps
-
Thông lượng IPS: 53 Gbps
-
VPN ngang hàng tối đa: 20,000
-
License tùy chọn: L-FPR4145T-T=, TC=, TM=, URL=, TMC=
Điểm nổi bật của Cisco Firepower FPR4145-NGFW-K9
-
Cisco Secure Firewall 4100 Series hỗ trợ Phần mềm bảo mật thích ứng Cisco (ASA) và Phần mềm Phòng chống mối đe dọa Cisco Firepower (FTD)
-
CDO quản lý cả hình ảnh ASA và FTD
-
CDO nâng cấp tường lửa chỉ với một thao tác đơn giản
-
Thông lượng cao hơn nhiều so với thế hệ trước
-
Các tính năng hỗ trợ trên Cisco Firepower Threat Defense (FTD):
-
Cập nhật tự động thông tin về mối đe dọa hàng ngày từ Cisco Talos
-
Tường lửa ứng dụng lớp 7
-
Kiểm tra nội dung và lưu lượng mạng với NGIPS (IPS thế hệ tiếp theo) và AMP (Bảo vệ phần mềm độc hại nâng cao) của Cisco
-
Lọc URL
-
VPN truy cập từ xa và VPN site-to-site
-
Thông số kỹ thuật của Cisco Firepower FPR4145-NGFW-K9 – Thiết bị tường lửa
| Model | FPR4145-NGFW-K9 |
| Hardware specifications | |
| Supervisor | • Cisco Secure Firewall 4000 Supervisor with 8 x 10 Gigabit Ethernet ports and 2 Network Module (NM) slots for I/O expansion |
| Network modules | • 2 x 100 Gigabit Ethernet QSFP28 Network Module • 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network modules ◦ 8 x 1 Gbps Fiber or 4 x 1Gbps Copper SFP Network Module • 4 x 40 Gigabit Ethernet Quad SFP+ network modules • 8-port 1Gbps copper, FTW (fail to wire) Network Module ◦ Ports that are not configured as FTW can be used as regular 1 Gb copper ports • 6-port 1 Gbps SX Fiber FTW (fail to wire) Network Module • 6-port 10Gbps SR Fiber FTW (fail to wire) Network Module • 6-port 10Gbps LR Fiber FTW (fail to wire) Network Module • 2-port 40G SR FTW (fail to wire) Network Module • 2-port 100Gbps Network Module |
| Maximum number of interfaces | • Up to 4 x 100 Gigabit Ethernet (QSFP28) interfaces, 24 x 10 Gigabit Ethernet (SFP+) interfaces • Up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules • Up to 24 x 1 Gigabit Ethernet ports(SFP) with network modules and fixed ports |
| Integrated network management ports | • 1 Gigabit Ethernet SFP portSupports 1Gbps fiber or copper optical modules |
| Serial port | • 1 x RJ-45 console |
| USB | • 1 x USB 2.0 |
| Storage | • 800 GB |
| Power supplies | |
| Configuration | • Dual 1100W AC |
| AC input voltage | • 100 to 240V AC |
| AC maximum input current | • 13A |
| AC maximum output power | • 1100W |
| AC frequency | • 50 to 60 Hz |
| AC efficiency | • >92% at 50% load |
| DC input voltage | • -40V to -60VDC |
| DC maximum input current | • 27A |
| DC maximum output power | • 950W |
| DC efficiency | • >92.5% at 50% load |
| Redundancy | • 1+1 |
| Fans | • 6 hot-swappable fans |
| Noise | • Typical 63 dBA, max is 74 dBA |
| Rack mountable | • Yes, mount rails included (4-post EIA-310-D rack) |
| Dimensions (H x W x D) | • 4.4 x 42.9 x 75.4 cm |
| Form factor (rack units) | • 1RU |
| Weight | • 17.87 kg : 2 x power supplies, 2 x NMs, 6 x fans • 14.24 kg : no power supplies, no NMs, no fans |
| Temperature: operating | • 0 to 40°C, at sea level |
| Temperature: nonoperating | • -40 to 65°C |
| Humidity: operating | • 5 to 95% noncondensing |
| Humidity: nonoperating | • 5 to 95% noncondensing |
| Performance specifications and feature highlights with the Cisco Secure Firewall Threat Defense (TD) image | |
| Throughput: FW + AVC (1024B) | • 53 Gbps |
| Throughput: FW + AVC + IPS (1024B) | • 53 Gbps |
| Maximum concurrent sessions, with AVC | • 30 million |
| Maximum new connections per second, with AVC | • 365K |
| TLS (Hardware Decryption)1 | • 10 Gbps |
| Throughput: NGIPS (1024B) | • 55 Gbps |
| IPSec VPN Throughput (1024B TCP w/Fastpath) | • 24 Gbps |
| Maximum VPN Peers | • 20,000 |
| Multi-Instance Capable | • Yes |
| Centralized management | • Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Application Visibility and Control (AVC) | • Standard, supporting more than 6000 applications, as well as geolocations, users, and websites |
| AVC: OpenAppID support for custom, open source, application detectors | • Standard |
| Cisco Security Intelligence | • Standard, with IP, URL, and DNS threat intelligence |
| Cisco Secure IPS License | • Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Malware Defense for Networks | • Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available |
| Cisco Malware Analytics sandboxing | • Available |
| URL filtering: number of categories | • More than 120 |
| URL filtering: number of URLs categorized | • More than 280 million |
| Automated threat feed and IPS signature updates | • Yes: Class-leading Collective Security Intelligence (CSI) from the Cisco Talos Group |
| Third-party and open-source ecosystem | • Open API for integrations with third-party products; Snort® and OpenAppID community resources for new and specific threats |
| High availability | • Cisco Secure Firewall 4100 Series with Firepower Threat Defense in HA configuration supports Active/Standby setup. This is available at the appliance level or logical instances defined on two different appliances. Please check latest High Availability Configuration Guide chapter for guidelines and best practices. |
| Clustering | • Cisco Secure Firewall 4100 Series with Firepower Threat Defense allows clustering of up to 16 appliances, or up to 16 instances across different appliances running Multi Instance feature. Clustering allows to increase overall performance and scale. Please check latest Clustering Configuration Guide chapter for guidelines and best practices. |
| Cisco Trust Anchor Technologies | • Cisco Secure Firewall 4100 Series platforms include Trust Anchor Technologies for supply chain and software image assurance |
Additional information
| Thương hiệu | |
|---|---|
| Bảo hành | 12 tháng |
