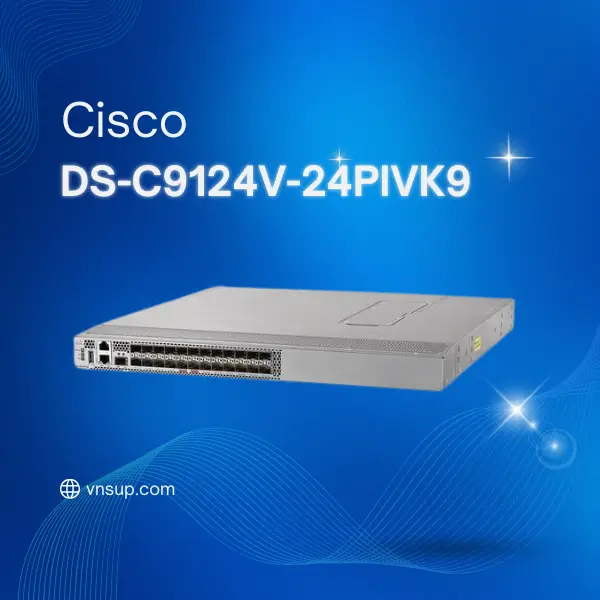

Cisco DS-C9124V-24PIVK9

Model

DS-C9124V-24PIVK9

Protocols

• Fibre Channel standards
• FC-PI-6 (INCITS 512-2015)
• FC-PI-7 (INCITS 543-2019)
• FC-FS-4 (INCITS 488-2016)
• FC-FS-5 (INCITS 545-2019)
• FC-GS-7 (INCITS 510-2017)
• FC-GS-8 (INCITS 548-2020)
• FC-LS-3 (INCITS 487-2018)
• FC-LS-4 (INCITS 553-2020)
• FC-SW-6 (INCITS 511-2016)
• FC-SW-7 (INCITS 547-2020)
• NVMe/FC (INCITS 540-2018)
• NVMe/FC-2 (INCITS 556-2020)
• FC-PH, Revision 4.3 (ANSI INCITS 230-1994)
• FC-PH, Amendment 1 (ANSI INCITS 230-1994/AM1-1996)
• FC-PH, Amendment 2 (ANSI INCITS 230-1994/AM2-1999)
• FC-PH-2, Revision 7.4 (ANSI INCITS 297-1997)
• FC-PH-3, Revision 9.4 (ANSI INCITS 303-1998)
• FC-PI, Revision 13 (ANSI INCITS 352-2002)
• FC-PI-2, Revision 10 (ANSI INCITS 404-2006)
• FC-PI-3, Revision 4 (ANSI INCITS 460-2011)
• FC-PI-4, Revision 8 (ANSI INCITS 450-2008)
• FC-PI-5, Revision 6 (ANSI INCITS 479-2011)
• FC-FS, Revision 1.9 (ANSI INCITS 373-2003)
• FC-FS-2, Revision 1.01 (ANSI INCITS 424-2007)
• FC-FS-2, Amendment 1 (ANSI INCITS 424-2007/AM1-2007)
• FC-FS-3, Revision 1.11 (ANSI INCITS 470-2011)
• FC-FS-4
• F-LS, Revision 1.62 (ANSI INCITS 433-2007)
• FC-LS-2, Revision 2.21 (ANSI INCITS 477-2011)
• FC-LS-3, Includes revision 3.53
• FC-SW-2, Revision 5.3 (ANSI INCITS 355-2001)
• FC-SW-3, Revision 6.6 (ANSI INCITS 384-2004)
• FC-SW-4, Revision 7.5 (ANSI INCITS 418-2006)
• FC-SW-5, Revision 8.5 (ANSI INCITS 461-2010)
• FC-SW-6
• FC-GS-3, Revision 7.01 (ANSI INCITS 348-2001)
• FC-GS-4, Revision 7.91 (ANSI INCITS 387-2004)
• FC-GS-5, Revision 8.51 (ANSI INCITS 427-2007)
• FC-GS-6, Revision 9.4 (ANSI INCITS 463-2010)
• FC-GS-7, Includes revision 10.8
• FCP, Revision 12 (ANSI INCITS 269-1996)
• FCP-2, Revision 8 (ANSI INCITS 350-2003)
• FCP-3, Revision 4 (ANSI INCITS 416-2006)
• FCP-4, Revision 2b (ANSI INCITS 481-2011)
• FC-SB-2, Revision 2.1 (ANSI INCITS 349-2001)
• FC-SB-3, Revision 1.6 (ANSI INCITS 374-2003)
• FC-SB-3, Amendment 1 (ANSI INCITS 374-2003/AM1-2007)
• FC-SB-4, Revision 3.0 (ANSI INCITS 466-2011)
• FC-SB-5, Revision 2.00 (ANSI INCITS 485-2014)
• FC-BB-2, Revision 6.0 (ANSI INCITS 372-2003)
• FC-BB-3, Revision 6.8 (ANSI INCITS 414-2006)
• FC-BB-4, Revision 2.7 (ANSI INCITS 419-2008)
• FC-BB-5, Revision 2.0 (ANSI INCITS 462-2010)
• FC-BB-6, Revision 2.00 (ANSI INCITS 509-2014)
• FC-VI, Revision 1.84 (ANSI INCITS 357-2002)
• FC-SP, Revision 1.8 (ANSI INCITS 426-2007)
• FC-SP-2, Revision 2.71 (ANSI INCITS 496-2012)
• FAIS, Revision 1.03 (ANSI INCITS 432-2007)
• FAIS-2, Revision 2.23 (ANSI INCITS 449-2008)
• FC-IFR, Revision 1.06 (ANSI INCITS 475-2011)
• FC-FLA, Revision 2.7 (INCITS TR-20-1998)
• FC-PLDA, Revision 2.1 (INCITS TR-19-1998)
• FC-Tape, Revision 1.17 (INCITS TR-24-1999)
• FC-MI, Revision 1.92 (INCITS TR-30-2002)
• FC-MI-2, Revision 2.6 (INCITS TR-39-2005)
• FC-MI-3, Revision 1.03 (INCITS TR-48-2012)
• FC-DA, Revision 3.1 (INCITS TR-36-2004)
• FC-DA-2, Revision 1.06 (INCITS TR-49-2012)
• FC-MSQS, Revision 3.2 (INCITS TR-46-2011)
• Fibre Channel classes of service: Class 2, Class 3, and Class F
• Fibre Channel standard port types: E and F
• Fibre Channel enhanced port types: SD, ST, and TE
• NVMe/FC
• In-band management using IP over Fibre Channel (RFC 2625)
• IPv6, IPv4, and Address Resolution Protocol (ARP) over Fibre Channel (RFC 4338)
• Extensive IETF-standards based TCP/IP, SNMPv3, and remote monitoring (RMON) MIBs

Fibre Channel ports

• Fixed-switch form factor with 24 SFP+ ports base

Security

• VSAN fabric isolation
• Intelligent packet inspection at port level
• Hardware zoning by Access Control Lists (ACLs)
• Fibre Channel Security Protocol (FC-SP) switch-to-switch authentication
• FC-SP host-to-switch authentication
• Role-Based Access Control (RBAC) using RADIUS, TACACS+, or Lightweight Directory Access Protocol (LDAP) authentication, authorization, and accounting (AAA) functions
• Secure FTP (SFTP)
• Secure Shell Protocol Version 2 (SSHv2)
• Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard (AES)
• Control-plane security
• Cisco TrustSec ® payload encryption
• Secure Boot and Anti-counterfeit technology

Performance

• Port speed: 8-, 16-, 32 and 64-Gbps autosensing with 64 Gbps of dedicated bandwidth per port
• Aggregate bandwidth of 1.5-Tbps end-to-end full duplex
• Buffer credits: Up to 24,000 for a group of 24 ports, with a default of 1000 buffer credits per port and a maximum of 16,000 buffer credits for a single port in the group
• Port groups: 1 port group of 24 ports
• Port channel: Up to 24 load-balanced physical links grouped in one port channel

Diagnostics

• Power-On-Self-Test (POST) diagnostics
• Online Health Management System (OHMS) diagnostics
• Internal loopbacks
• SPAN
• Fibre Channel traceroute
• Fibre Channel ping
• Fibre Channel debug
• Cisco Fabric Analyzer
• Syslog
• Port-level statistics
• Link diagnostics (E-port and F-port links)
• Read Diagnostic Parameter

Serviceability

• Configuration file management
• Call Home
• Port beaconing
• Link cable beacon
• System LEDs
• SNMP traps for alerts

Reliability and availability

• Cisco In-Service Software Upgrade (ISSU)
• Hot-swappable, dual redundant power supplies
• Hot-swappable fan tray with switch integrated temperature and power management
• Hot-swappable SFP+ optics
• Stateful process restart
• Any port configuration for port channels
• Fabric-based multipathing
• Per-VSAN fabric services
• Port tracking
• FEC with HBA ports
• Buffer-to-buffer state change notification with HBA ports

Network management

• Management access through the following out-of-band Ethernet ports
 ◦ mgmt0: 10/100/1000BASE-T port
• RS-232 serial console port
• USB power-on auto-provision port
• Access protocols
• Command-Line Interface (CLI) using the console and Ethernet port
• SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access
• Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S)
• NX-API for HTTP/HTTPS full programmability
• Distributed device alias service
• Network security
• Per-VSAN RBAC using LDAP, RADIUS, and TACACS+-based AAA functions
• Simple File Transfer Protocol (SFTP)
• SSHv2 implementing AES
• SNMPv3 implementing AES

Programming interfaces

• Scriptable CLI
• Cisco DCNM/NDFC web services API
• NX-API HTTP/HTTPS interfaces
• Onboard Python interpreter
• Cisco Embedded Event Manager (EEM)
• Cisco NX-OS Software scheduler

Physical dimensions (H x W x D) and weight

• 1 Rack Unit (1RU) 4.37 x 43.94 x 45.72 cm excluding Power Supply Unit (PSU) and fan-tray handles
• 8.5 kg

Power

• 80 Plus Platinum certified power supplies
• Power supply options
 ◦ 500W AC in base model, port-side exhaust variant (2 per switch)
 ◦ 500W AC in base model, port-side intake variant (2 per switch)
 ◦ 1200W AC/ HVAC/ HVDC in base model, Bidirectional airflow (2 per switch)
• Power cord
 ◦ Notched C15 socket connector connecting to C16 plug on the power supply receptacle for 500W Power Supply
 ◦ Standard CAB-HVAC-C14-2M IEC C14 to Saf-d-grid connector on the power supply receptacle for 1200W Power Supply
 ◦ Check Ordering Information table in this document for power cords specific to regions
• 500W PSU AC input: 100 to 240 VAC (10% range)
• 1200W PSU AC input: 90V to 305V
• 1200W PSU  DC input: 192V to 400V
• Frequency: 50 to 60 Hz (nominal)
• Typical power consumption
 ◦ 94W for 24-Port switch in idle status with no optics modules
 ◦ 113W for 24-Port switch with 8 64G SW optics modules under 50% line rate
 ◦ 146W for 24-Port switch with 24 64G SW optics modules under 50% line rate
• Airflow
 ◦ Back to front (toward ports) using port-side exhaust fans
 ◦ Front to back (inward from ports) using port-side intake fans
 ◦ 50 Cubic Feet per Minute (CFM) through system fan assembly at 25°C
• 100 CFM maximum

Temperature range

• Temperature, ambient operating:
 ◦ 0 to 40°C with port-side exhaust and intake airflow variants
• Temperature, ambient nonoperating and storage: –40° to 70°C
• Relative humidity, ambient (noncondensing) operating: 10% to 90%
• Relative humidity, ambient (noncondensing) nonoperating and storage: 10% to 95%
• Altitude, operating: –60 to 2000m

Approvals and compliance

• Safety compliance
• CE Marking
• UL 60950
• CAN/CSA-C22.2 No. 60950
• EN 60950
• IEC 60950
• TS 001
• AS/NZS 3260
• IEC60825
• EN60825
• 21 CFR 1040
• EMC compliance
• FCC Part 15 (CFR 47) Class A
• ICES-003 Class A
• EN 55022 Class A
• CISPR 22 Class A
• AS/NZS 3548 Class A
• VCCI Class A
• EN 55024
• EN 50082-1
• EN 61000-6-1
• EN 61000-3-2
• EN 61000-3-3

Fabric services

• Name server
• Registered State Change Notification (RSCN)
• Login services
• Fabric Configuration Server (FCS)
• Broadcast
• In-order delivery

Advanced functions

• VSAN
• IVR
• Port Channel with multipath load balancing
• Flow- and zone-based QoS
