Mã sản phẩm |
FAP-U234F |
Hardware |
Hardware Type |
Outdoor AP |
Number of Radios |
3 + 1 BLE |
Number of Antennas |
2 WiFi 2.4GHz band
4 WiFi 5.0GHz band
2 WiFi+Dual band Scanning
1 Single band 2.4GHz BLE/ZigBe |
Antenna Type and Peak Gain |
Directional patch Antenna |
Frequency Bands (GHz) |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
Maximum Data Rate |
Radio 1: up to 2,402 Mbps
Radio 2: up to 2,402 Mbps
Radio 3: up to 300 Mbps |
Bluetooth Low Energy Radio |
Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |

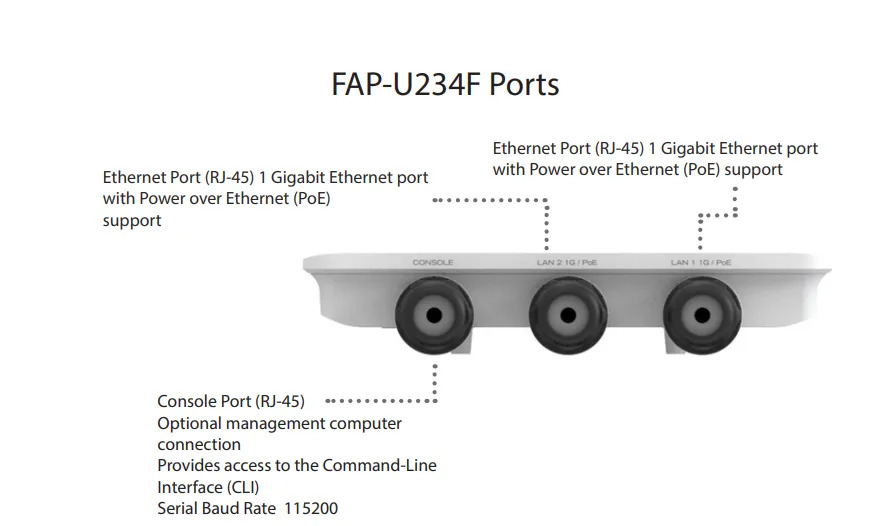

Interfaces |
1x 100/1000/2500 Base-T RJ45(802.2bt/at PoE)
1 x 10/100/1000 Base-T RJ45 (802.3af PoE PSE)
1x RS-232 RJ45 Serial Port |
Power over Ethernet (PoE) |
802.3bt PoE ships with PoE injector (reset functionality) |
Simultaneous SSIDs |
Up to 16 (14 if background scanning enabled) |
EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
User/Device Authentication |
WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
SSID Types Supported |
Local-Bridge, Mesh, & Tunnel |
Per Radio Client Capacity |
Up to 512 per Radio1 and Radio2 |
Dimensions |
Length x Width x Height |
12.45 x 8.59 x 1.66 inches (316.18 x 218.16 x 42.21 mm) |
Weight |
2.66 lbs (1.207 kg) |
Package (shipping) Weight |
5.86 lbs (3.6 kg) |
Mounting Options |
Wall and Pole |

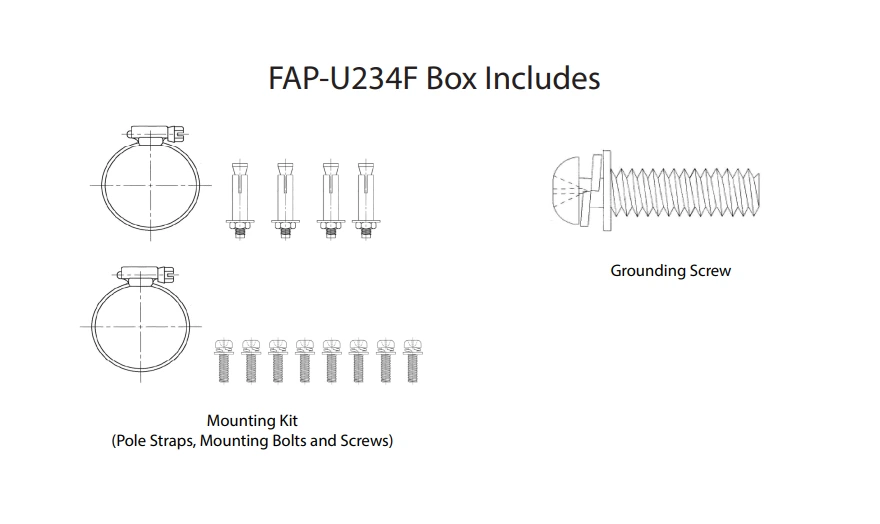

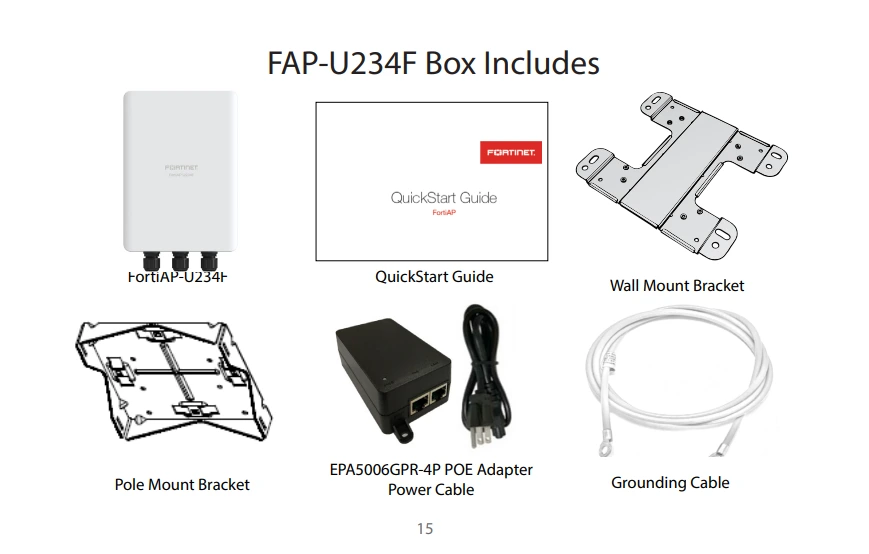

Included Accessories |
1-2. Wall/ Pole bracket
3. POE adapter - PIN060-54PR
4. Power cable
5. Grounding cable
6. Mounting Kit (Pole straps; mounting bolts, screws; grounding screws) |
Environment |
Power Supply |
802.3bt/at (ships with passive PoE injector with build in reset switch) |
Power Consumption (Max) |
21 Watts |
Humidity |
10–90% Non-Condensing |
Operating / Storage Temp. |
-22–140°F (-40 - 60°C) / -40–176°F (-40–80°C) |
