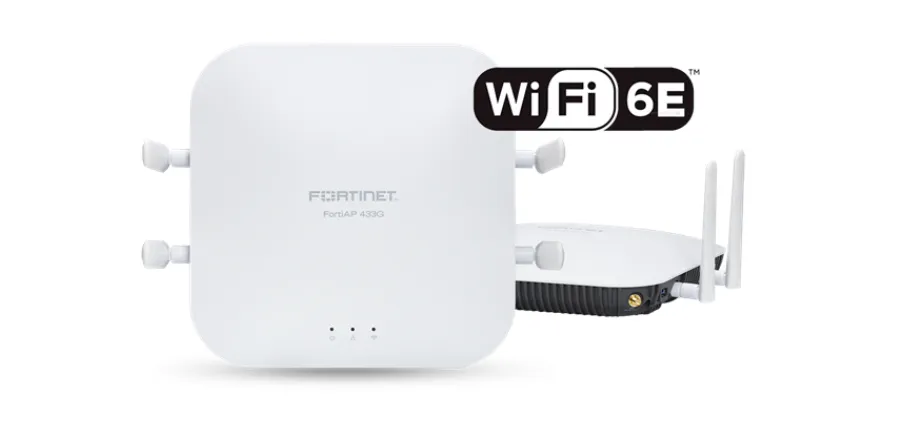

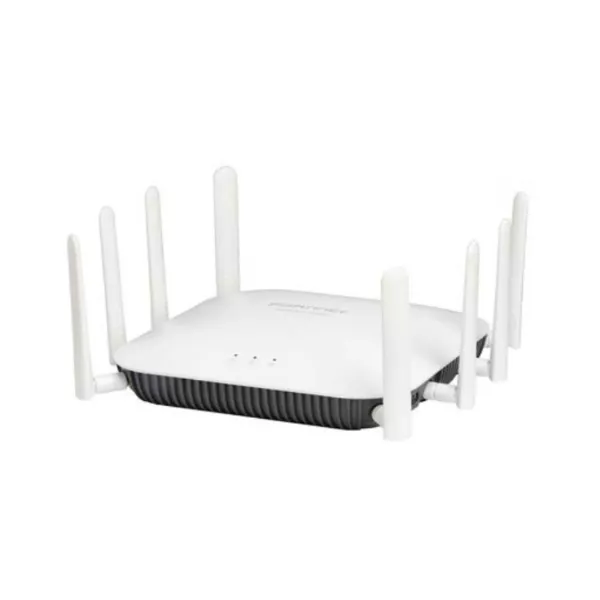

Fortinet FortiAP 433G (FAP-433G) – Bộ thu phát wifi
Liên hệ
- Bộ thu phát Wi-Fi 6E
- Tri-Radio 2.4 + 5GHz + 5GHz / 6GHz / Scan
- 4 đầu nối RPSMA bên ngoài + 4 ăng-ten gắn cố định bên ngoài
- 4×4 MU-MIMO | Lên tới 1148 Mbps + 2402 Mbps + 4804 Mbps
Mô tả
Thuộc Tính
Description
Fortinet FortiAP 433G (FAP-433G) là bộ thu phát wifi AP không dây trong nhà – Tri radio (Wi-Fi-6E IEEE 802.11ax Tri-band 2.4/5/6GHz và hoạt động 5G kép 4+4+4 4 luồng 3 radio), ăng-ten bên ngoài, 2x 5G Base-T RJ45, BT/BLE, 1x USB loại A, 1x Cổng nối tiếp RJ45 RS-232. Đi kèm có bộ giá treo trần/tường. Thiết bị hỗ trợ FortiCare Elite/Premium.
- Wi-Fi 6E | Tri-Radio 2.4 + 5GHz + 5GHz / 6GHz / Scan | 4 đầu nối RPSMA bên ngoài + 4 ăng-ten gắn cố định bên ngoài
- 4×4 MU-MIMO | Lên tới 1148 Mbps + 2402 Mbps + 4804 Mbps
Xem thêm:
Thông số kỹ thuật của Fortinet FortiAP 433G (FAP-433G) – Bộ thu phát wifi
| Mã sản phẩm | FAP-433G |
|---|---|
| Hardware | |
| Hardware Type | Indoor AP |
| Number of Radios | 3 + 1 BLE |

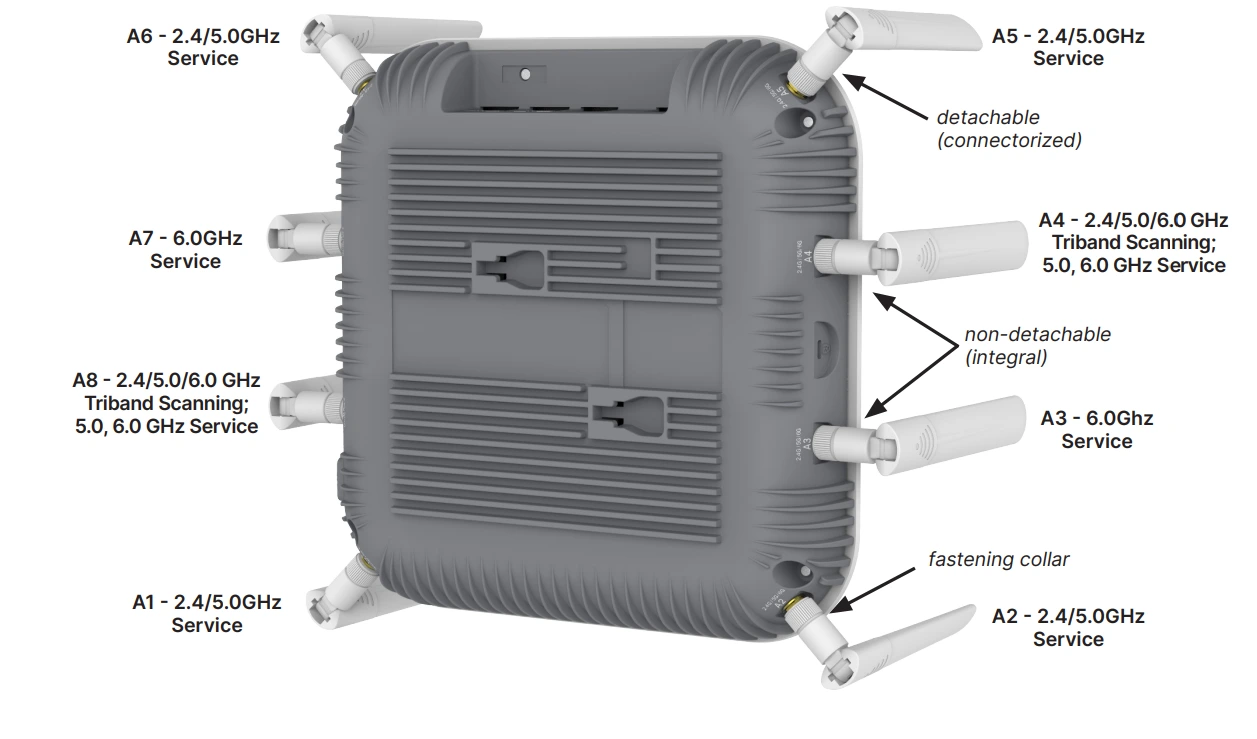

| Number of Antennas | External x4 Dual band Wi-Fi x4 Tri-band Wi-Fi & Scanning Internal: 1 Single band 2.4GHz BLE/ZigBee |
| Antenna Type and Peak Gain | Omni Directional antenn. Dual band: 5.0 dBi for 2.4GHz, 5.0 dBi for 5 GHz Tr-band: 5.0 dBi for 2.4GHz, 5.0 dBi for 5 GHz & 4.0 dBi for 6GHz band BLE PIFA antenna Single band: 4.0 dBi for 2.4Ghz |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850, 5.925–6.425, 6.425–6.525, 6.525–7, 5.925–6.875, 6.875–7.125 |
| Maximum Data Rate | Radio 1: up to 1148 Mbps Radio 2: up to 2402 Mbps Radio 3: up to 4804 Mbps |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertizement @10 dBm max TX power |
| Interfaces | x2 100/1000/2500/5000 Base-T RJ45 1 Type 3.0 USB 1 RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | 1 802.3bt PoE default or x2 802.3at PoE (Dual PoE current sharing) |
| Simultaneous SSIDs | Up to 24 |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Power | Radio 1: 2.4GHz: 27 dBm / 501 mW (4 chains combined) Radio 2: 5GHz: 26 dBm / 400 mW (4 chains combined) Radio 3: 6GHz: 24 dBm 251 mW (4 chains combined @ 160MHz BW) |
| SSID Types Supported | Local-Bridge, Mesh, and Tunnel |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2 and Radio3) |
| Dimensions | |
| Length x Width x Height | 8.85 x 8.85 x 2.12 inches (225.0 x 225.0 x 54.0 mm) |
| Weight | 3.05 lbs (1.4 kg) |
| Package (shipping) Weight | 5.25 lbs (2.4 kg) |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Standard Mounting kit for Ceiling, T-Rail and Wall |
| Environment | |
| Power Supply | SP-FAP400-PA-XX or 802.3bt PoE. Also supports Dual PoE sharing with 2x 802.3at PoE (GPI-130) or Single 802.at PoE (GPI-130) with No USB and reduced Transmit power |
| Power Consumption (Max) | 31.7 Watts |
| Humidity | 5–90% Non-Condensing |
| Operating / Storage Temp. | 32°–122°F (0° - 50°C) / -22°–158°F (-30°–70°C) |
