| Mã sản phẩm |

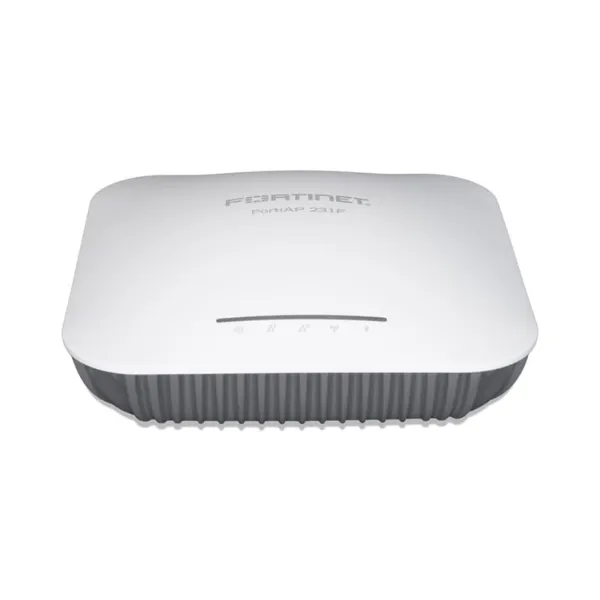

FAP-U231F |
| Hardware |
| Hardware Type |
Indoor AP |
| Number of Radios |
3 + 1 BLE |
| Number of Antennas |
4 Dual band WiFI + 2 WiFi+Dual band Scanning + 1 Single band 2.4GHz BLE/ZigBee |
| Antenna Type and Peak Gain |
- PIFA antenna
- Dual band: 3.97 dBi for 2.4GHz and 5.89 dBi for 5GHz
- Single band 5Ghz antenna 5dBi for 2.4GHz band
- BLE antenna 3.5dBi at 2.4GHz band |
| Frequency Bands (GHz) |
| Radio 1 Capabilities |
- Band: 2.4 GHz or 5.0 GHz(High Band) a/b/g/n/ac/ax (2x2:2 stream)
- Channel width: 20/40/80MHz
- Modulation: BPSK, QPSK, 64/256/1024 QAM |
| Radio 2 Capabilities |
- 5.0GHz a/b/g/n/ac/ax (2x2:2 stream)
- Channel width: 20/40/80MHz
- Modulation: BPSK, QPSK, 64/256/1024 QAM |
| Radio 3 Capabilities |
- Service: (2x2:2 stream)
- Band: 2.4 GHz service b/g/n/ax
- Channel width: 20/40MHz
- Modulation: BPSK, QPSK, 64/256/1024QAM
- Scan: dual band scan |
| Maximum Data Rate |
- Radio 1: up to 1201 Mbps
- Radio 2: up to 1201 Mbps
- Radio 3: up to 574 Mbps |
| Bluetooth Low Energy Radio |
Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |

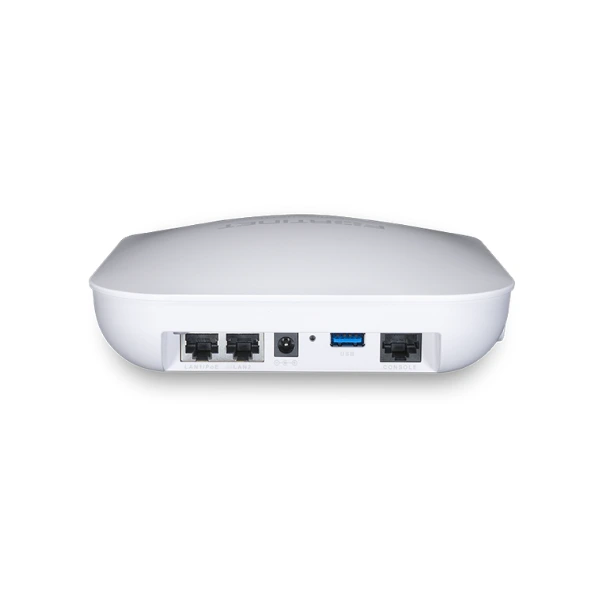

| Interfaces |
- 2x 10/100/1000 Base-T RJ45
- 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) |
- 1 x 802.3at PoE default
- 1 x 802.af PoE with reduce TX power and no USB function |
| Simultaneous SSIDs |
Up to 24 (21 if background scanning enabled) |
| EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication |
WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist |
| Maximum Tx Powerr (Conducted) |
- Radio 1:
• 2.4GHz: 23 dBm / 200 mW (2 chains combined)
• 5GHz: 22 dBm / 158 mW (2 chains combined)
- Radio 2: 5GHz: 22 dBm / 158 mW (2 chains combined)
- Radio 3:
• 2.4GHz: 23 dBm / 200 mW (2 chains combined)
• 5GHz: 22 dBm / 158 mW (2 chains combined) |
| Kensington Lock |
✔ |
| IEEE Standards |
802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az |
| SSID Types Supported |
Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity |
Up to 512 clients per radio (all radios) |
| Cellular Co-existence |
✔ |
| Reset Button |
✔ |
| LED Off Mode |
✔ |
| Advanced 802.11 Features |
- Transmit Beam Forming (TxBF)
- Low-Density Parity Check (LDPC) Encoding
- Maximum Likelihood Demodulation (MLD)
- Maximum Ratio Combining (MRC)
- A-MPDU and A-MSDU Packet Aggregation
- OFDMA
- 2.4 GHz OFDMA
- Spatial Reuse (BSS Coloring)
- HE-MU-MIMO
- UL MU-MIMO 802.11ax mode
- UL MU-MIMO 802.11ac mode
- DL-MU-MIMO
- Enhanced Target Wake Time (TWT)
- ZeroWait DFS /Agile DFS |
| Wireless Monitoring Capabilities |
| Rogue Scan radio modes |
Background, Dedicated |
| WIPS / WIDS radio modes |
Background, Dedicated (recommended) |
| Packet Sniffer Mode |
✔ |
| Spectrum Analyzer |
✔ |
| Dimensions |
| Length x Width x Height |
6.5 x 6.5 x 2.05 inches (165 x 165 x 52 mm) |
| Weight |
1.5 lbs (0.68 kg) |
| Mounting Options |
Ceiling, T-Rail, and Wall |
| Included Accessories |
Standard Mount kit for Ceiling, T-Rail, and Wall |
| Environment |
| Power Supply |
SP-FAP200-PAX-XX |
| Power Consumption (Maximum) |
18.5W |
| Humidity |
5–90% non-condensing |
| Operating / Storage Temperature |
32–122°F (0 - 50°C) / -22–158°F (-30–70°C) |
| Directives |
Low Voltage Directive • RoHS |
| UL2043 Plenum Material |
✔ |
| Mean Time Between Failures |
>10 Years |
