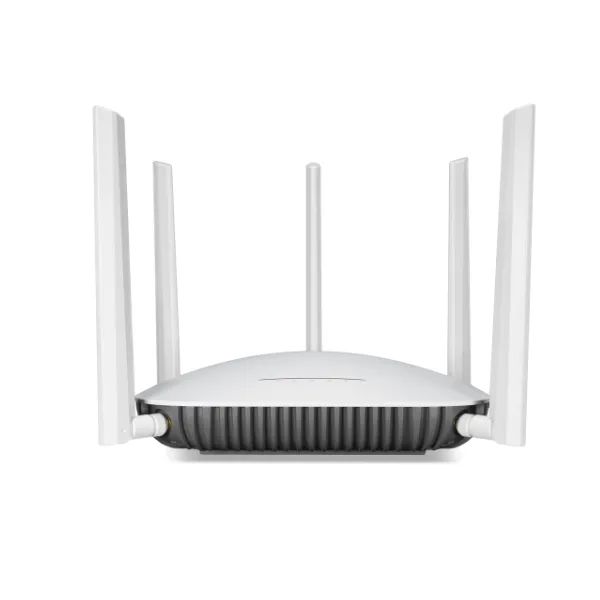

Fortinet FortiAP 433F – Bộ phát wifi
Liên hệ
- 4×4 Wi-Fi 6 (802.11ax)
- AP không dây trong nhà: Tri-radio, Ăng-ten ngoài
- 1 x 2.5 GE & 1 x cổng GE RJ45
Mô tả
Thuộc Tính
Description
Fortinet FortiAP 433F (FAP-433F) là Bộ phát wifi không dây trong nhà Tri radio (2x 802.11 a/b/g/n/ac/ax, 4×4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1×1 MU-MIMO), ăng ten ngoài, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Nó bao gồm bộ giá treo trần/tường, có hợp đồng FortiCare 24×7
Xem thêm: fortiap-series-datasheet
Thông số kỹ thuật của Fortinet FortiAP 433F – Bộ phát wifi
| Mã sản phẩm | FAP-433F |
| Hardware | |
| Hardware Type | Indoor AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 5 External (RP-SMA) + 1 BLE Internal |
| Antenna Type and Peak Gain | Omni directional rubber duck antenna: 4 dBi for 2.4 GHz, 6 dBi for 5 GHz |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | - Frequency band: 2.4GHz - Channel width: 4x4 20/40MHz - Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 |
| Radio 2 Capabilities | - Frequency band: 5.0GHz - Channel width: 4x4 20/40/80MHz and 2x2 160MHz contiguous - Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 |
| Radio 3 Capabilities | Frequency band: 1x1 2.4/5.0 Bands, scan only |
| Maximum Data Rate | - Radio 1: up to 1147 Mbps - Radio 2: up to 2402 Mbps - Radio 3: Scanonly |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power |
| Interfaces | - 1x 10/100/1000/2500 Base-T RJ45 - 1x 10/100/1000 Base-T RJ45 - 1x Type A USB, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | - 1 port powered by 802.3af - No USB support, Operate in 2x2 mode with reduced power R1/R2 17dBm(Tx power) or Single 802.3af PoE: 2x2, max TX power 17dBm, no USB |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/ EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Powerr (Conducted) | - Radio 1: 2.4GHz: 24 dBm / 251 mW (4 chains combined) - Radio 2: 5GHz: 23 dBm / 200 mW (4 chains combined) - Radio 3: NA |
| IEEE Standards | 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz |
| SSID Types Supported | Local-Bridge, Mesh, & Tunnel |
| Per Radio Client Capacity | 512 per Radio 1 and Radio 2 |
| Cellular Co-existence | ✔ |
| Reset Button | ✔ |
| LED Off Mode | ✔ |
| Advanced 802.11 Features | |
| OFDMA | ✔ (UL and DL) |
| 2.4 GHz OFDMA | ✔ |
| Spatial Reuse (BSS Coloring) | ✔ |
| HE-MU-MIMO | ✔ |
| UL MU-MIMO 802.11ax mode | ✔ |
| DL-MU-MIMO | ✔ |
| Enhanced Target Wake Time (TWT) | ✔ |
| ZeroWait DFS/Agile DFS | ✖ |
| Wireless Monitoring Capabilities | |
| Rogue Scan Radio Modes | Background, Dedicated |
| WIPS / WIDS Radio Modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | ✔ |
| Spectrum Analyzer | ✔ |
| Dimensions | |
| Length x Width x Height | 8.27 x 8.27 x 2.22 inches (210 x 210 x 56.5 mm) |
| Weight | 2.19 lbs (0.995 kg |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kit for Ceiling, T-Rail and Wall. 5 RP-SMA Male dual-band dipole antenna |
| Environment | |
| Power Supply | SP-FAP400-PA-XX or GPI-130 |
| Power Consumption (Maximum) | 24.5 W |
| Humidity | 5–90% non-condensing |
| Operating / Storage Temperature | 32–113°F (0–45°C) / -31–-94°F (-35–70°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | ✖ |
| Mean Time Between Failures | >10 Years |
| IP Rating | N/A |
| Surge Protection Built In | ✔ |
| Hit-less PoE Failover | ✔ |
| Certifications | |
| WiFi Alliance Certified | No |
| DFS | FCC, IC, CE, Japan |
