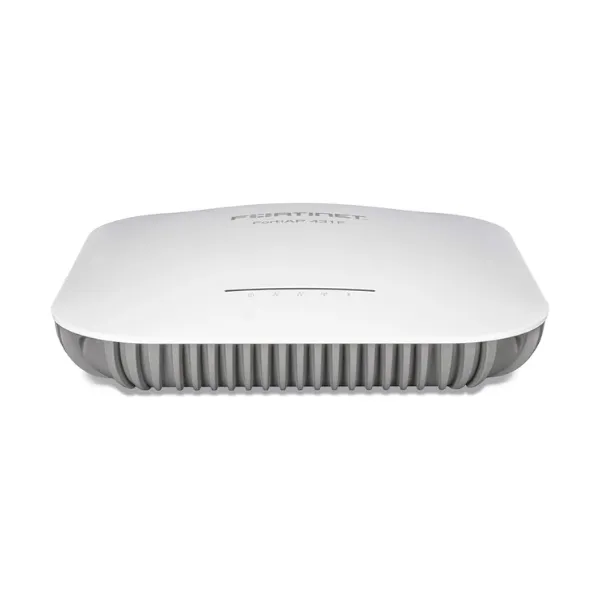

Fortinet FortiAP 431F (FAP-431F) – Bộ phát wifi
- Loại lắp đặt trong nhà
- Cột phát sóng :
- 2 x 802.11 a/b/g/n/ac/ax – 4×4 MIMO
- 1x 802.11 a/b/g/n/ac Wave 2 – 1×1 MU-MIMO
- 1 cổng 10/100/1000/2500 Base-T RJ45
- 1 cổng 10/100/1000 Base-T RJ45, BT/BLE
- 1 cổng Type A USB
- 1 cổng RS-232 RJ45 Serial
Description
Fortinet FortiAP 431F (FAP-431F) là Bộ phát wifi không dây trong nhà Tri radio (2x 802.11 a/b/g/n/ac/ax, 4×4 MIMO và 1x 802.11 a/b/g/n/ac Wave 2, 1×1 MU- MIMO), ăng-ten bên trong, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x USB loại A, 1x Cổng nối tiếp RS-232 RJ45. Nó bao gồm bộ giá treo trần/tường, có hợp đồng FortiCare 24×7
Xem thêm: fortiap-series-datasheet
Thông số kỹ thuật của Fortinet FortiAP 431F (FAP-431F) – Bộ phát wifi
Mã sản phẩm | FAP-431F |
Hardware | |
Hardware Type | Indoor AP |
Number of Radios | 3 + 1 BLE |
Number of Antennas | 5 Internal + 1 BLE Internal |
Antenna Type and Peak Gain | PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
Radio 1 Capabilities | - Frequency band: 2.4GHz - Channel width: 4x4 20/40MHz - Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 |
Radio 2 Capabilities | - Frequency band: 5.0GHz - Channel width: 4x4 20/40/80MHz and 2x2 160MHz contiguous - Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 |
Radio 3 Capabilities | Frequency band: 1x1 2.4/5.0 Bands, scan only |
Maximum Data Rate | - Radio 1: up to 1147 Mbps - Radio 2: up to 2402 Mbps - Radio 3: Scanonly |
Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power |
Interfaces | - 1x 10/100/1000/2500 Base-T RJ45 - 1x 10/100/1000 Base-T RJ45 - 1x Type A USB, 1x RS-232 RJ45 Serial Port |
Power over Ethernet (PoE) | - 1 port powered by 802.3af - No USB support, Operate in 2x2 mode with reduced power R1/R2 17dBm(Tx power) or Single 802.3af PoE: 2x2, max TX power 17dBm, no USB |
Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/ EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
Maximum Tx Powerr (Conducted) | - Radio 1: 2.4GHz: 24 dBm / 251 mW (4 chains combined) - Radio 2: 5GHz: 23 dBm / 200 mW (4 chains combined) - Radio 3: NA |
IEEE Standards | 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz |
SSID Types Supported | Local-Bridge, Mesh, & Tunnel |
Per Radio Client Capacity | 512 per Radio 1 and Radio 2 |
Cellular Co-existence | ✔ |
Reset Button | ✔ |
LED Off Mode | ✔ |
Advanced 802.11 Features | |
OFDMA | ✔ (UL and DL) |
2.4 GHz OFDMA | ✔ |
Spatial Reuse (BSS Coloring) | ✔ |
HE-MU-MIMO | ✔ |
UL MU-MIMO 802.11ax mode | ✔ |
DL-MU-MIMO | ✔ |
Enhanced Target Wake Time (TWT) | ✔ |
ZeroWait DFS/Agile DFS | ✖ |
Wireless Monitoring Capabilities | |
Rogue Scan Radio Modes | Background, Dedicated |
WIPS / WIDS Radio Modes | Background, Dedicated (recommended) |
Packet Sniffer Mode | ✔ |
Spectrum Analyzer | ✔ |
Dimensions | |
Length x Width x Height | 8.27 x 8.27 x 2.22 inches (210 x 210 x 56.5 mm) |
Weight | 2.16 lbs (0.98 kg) |
Mounting Options | Ceiling, T-Rail, and Wall |
Included Accessories | Mount kit for Ceiling, T-Rail and Wall |
Environment | |
Power Supply | SP-FAP400-PA-XX or GPI-130 |
Power Consumption (Maximum) | 24.5 W |
Humidity | 5–90% non-condensing |
Operating / Storage Temperature | 32–113°F (0–45°C) / -31–-94°F (-35–70°C) |
Directives | Low Voltage Directive • RoHS |
UL2043 Plenum Material | ✖ |
Mean Time Between Failures | >10 Years |
IP Rating | N/A |
Surge Protection Built In | ✔ |
Hit-less PoE Failover | ✔ |
Certifications | |
WiFi Alliance Certified | No |
DFS | FCC, IC, CE, Japan |
