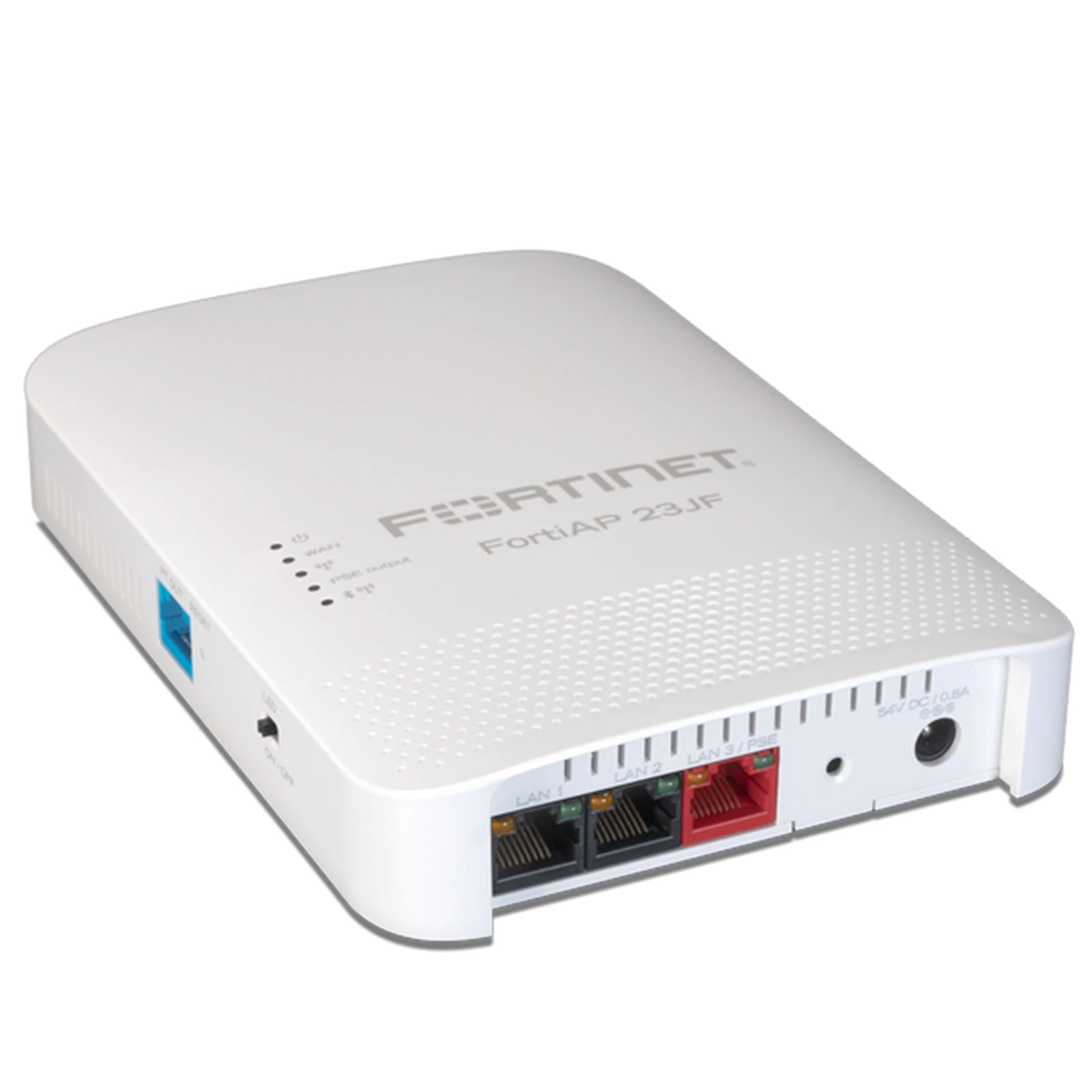

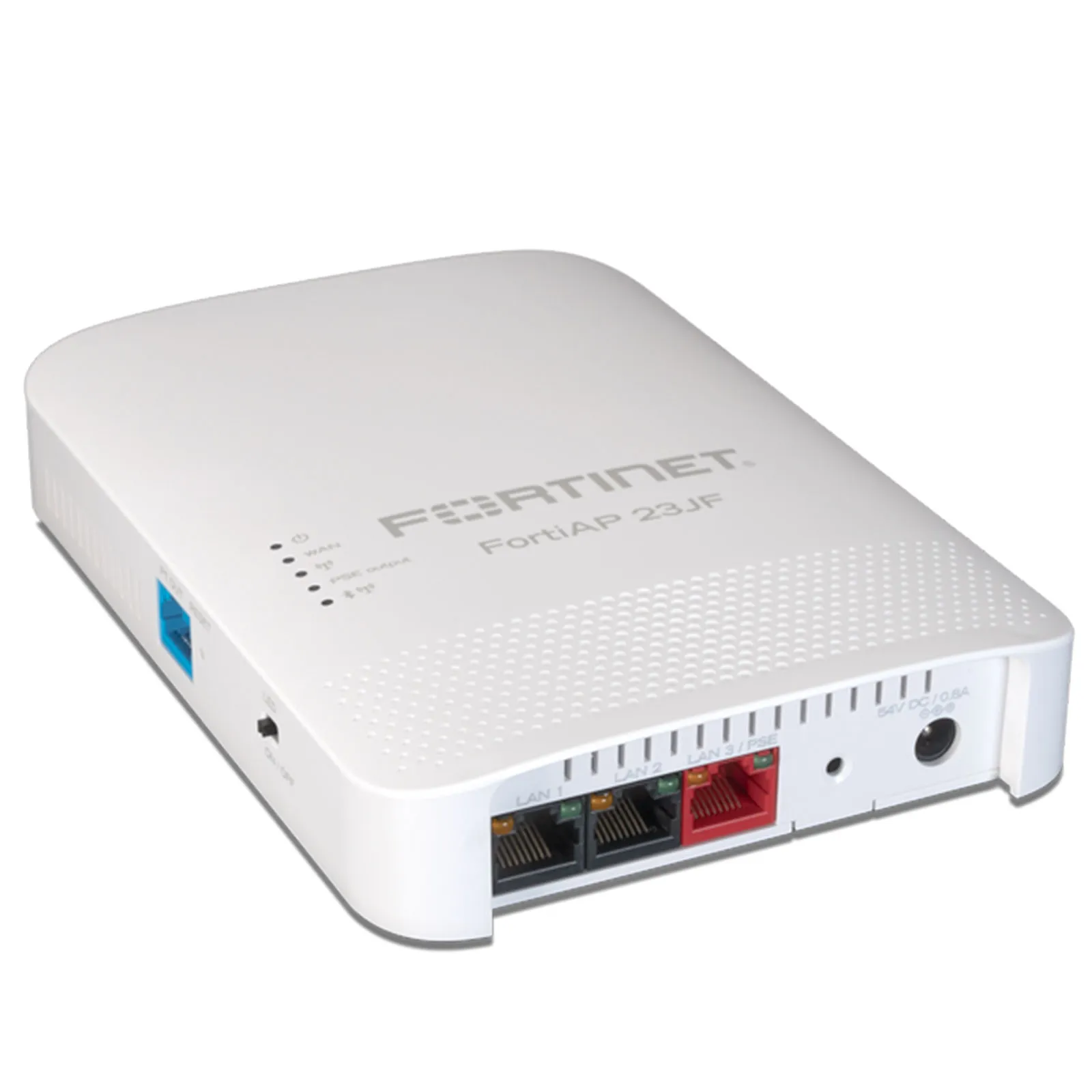

Fortinet FortiAP-23JF (FAP-23JF) – Bộ phát wifi
Liên hệ
- 2×2 MIMO IEEE 802.11ac Sóng 2
- Thông lượng 574 Mbps (2,4 GHz)
- Thông lượng 1,2 Gbps (5 GHz)
- 1x PoE-PD (IEEE 802.3at PoE+, 31W (17,5W không có đầu ra PSE / 31W không có đầu ra PSE))
- 1x PoE-PSE (IEEE 802.3af PoE, 17W)
- 6x 1-GbE-RJ45
Mô tả
Thuộc Tính
Description
Fortinet FortiAP-23JF (FAP-23JF) là bộ phát wifi không dây Wi-Fi 6 trong nhà với ba đài, ăng-ten bên trong để gắn tường và máy tính để bàn.
- 2×2 MIMO IEEE 802.11ac Sóng 2
- Thông lượng 574 Mbps (2,4 GHz)
- Thông lượng 1,2 Gbps (5 GHz)
- 1x PoE-PD (IEEE 802.3at PoE+, 31W (17,5W không có đầu ra PSE / 31W không có đầu ra PSE))
- 1x PoE-PSE (IEEE 802.3af PoE, 17W)
- 6x 1-GbE-RJ45
Thông số kỹ thuật của Fortinet FortiAP-23JF (FAP-23JF) – Bộ phát wifi
| Mã sản phẩm | FAP-23JF |
| Hardware | |
| Hardware Type | Indoor walljack / Desktop AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 4 single band WiFi + 1 dual band scanning + 1 single band 2.4 GHz BLE/ZigBee |
| Antenna Type and Peak Gain | - PCB antenna - Dual band: 4.0 dBi in 2.4 GHz band and 4.0 dBi in 5 GHz band - BLE antenna: 3.5 dBi in 2.4 GHz band |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | - Frequency band: 2.4 GHz - Channel width: 20/40MHz - Modulation: BPSK, QPSK, 64/256/1024 QAM - MIMO Chains: 2x2 Service |
| Radio 2 Capabilities | - Frequency band: 5.0GHz - Channel width: 20/40/80MHz - Modulation: BPSK, QPSK, 64/256/1024 QAM - MIMO Chains: 2x2 Service |
| Radio 3 Capabilities | - Frequency bands: 2.4 GHz and 5.0 GHz - MIMO Chains: 1x1 Frequency Scanning |
| Maximum Data Rate | - Radio 1: up to 574 Mbps - Radio 2: up to 1200 Mbps - Radio 3: Frequency scanning only |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |
| Interfaces | - 7x 10/100/1000 Base-T RJ45Ports (1x 802.3at PoE (PD) - 1x 802.3af PoE (PSE) - 2x Non-PoE Ports - 1x Pass-through in, 1x Pass-through out, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | - 1 x 802.3at PoE default - Operational modes: • Powered by 802.af PoE - Only Radio functionality • Powered by 802.3at - All radio+ PSE (7W) • Powered by DC power adaptor - All radio's + USB + PSE ( 802.3af) |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist |
| Maximum Tx Powerr (Conducted) | - Radio 1: 2.4 GHz 25 dBm / 158 mW (2 chains combined) - Radio 2: 5GHz: 21 dBm / 158 mW (2 chains combined) - Radio 3: N/A |
| Kensington Lock | ✔ |
| IEEE Standards | 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz |
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1 and Radio2) |
| Cellular Co-existence | ✔ |
| LED Off Mode | ✔ |
| Advanced 802.11 Features | |
| OFDMA | ✔ (UL and DL) |
| Spatial Reuse (BSS Coloring) | ✔ |
| UL MU-MIMO | ✔ |
| DL-MU-MIMO | ✔ |
| Enhanced Target Wake Time (TWT) | ✔ |
| ZeroWait DFS | ✔ |
| Wireless Monitoring Capabilities | |
| Rogue Scan radio modes | Background, Dedicated |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | ✔ |
| Spectrum Analyzer | ✔ |
| Dimensions | |
| Length x Width x Height | 6.6 x 4.6 x 1.1 inches (168 x 117 x 28 mm) |
| Weight | 1.54 lbs (0.7 kg) |
| Mounting Options | Wall Plate, Optional Desk Mount FAP-MNT-WJ-20 |
| Included Accessories | Standard Mount kit for Ceiling, T-Rail, and Wall |
| Environment | |
| Power Supply | - 802.3at PoE: GPI-130 - Optional DC power adaptor SP-FAP23J-PAX-10 |
| PSE functionality | ✔ |
| Power Consumption (Maximum) | 17.5W without PSE out and 31W with PSE out |
| Humidity | 10–90% non-condensing |
| Operating / Storage Temperature | 32–122°F (0 - 50°C) / -22–158°F (-30–70°C) |
| Directives | Low Voltage Directive • RoHS |
| Mean Time Between Failures | >10 Years |
| Surge Protection Built In | ✔ |
