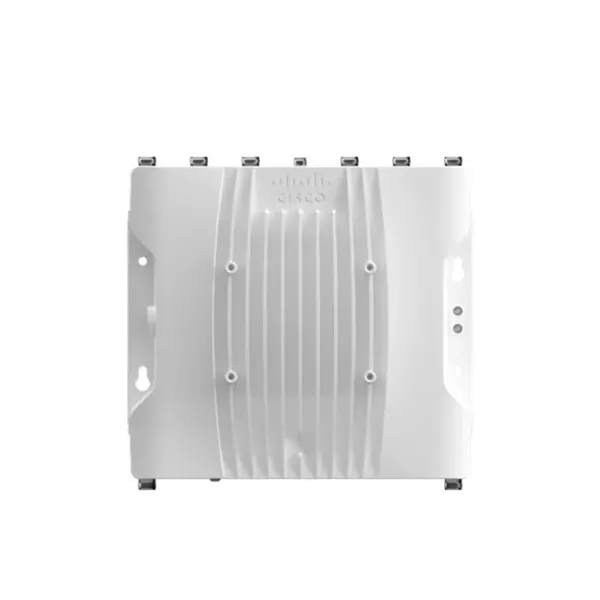

Cisco IW9167EH-ROW-WGB – Bộ phát Wifi

Model

IW9167EH-ROW-AP

Software

- Cisco IOS ® XE Software Release 17.9.3 or later

Supported wireless LAN controllers

- Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)

802.11n version 2.0 (and related) capabilities

- 4x4 MIMO with four spatial streams in one 2.4 GHz radio and two 5 GHz radios - Maximal Ratio Combining (MRC)
- 802.11n and 802.11a/g
- 20- and 40-MHz channels
- PHY data rates up to 1.5 Gbps (with 40 MHz on both 5 GHz radios and 20 MHz on the 2.4 GHz radio)
- Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
- 802.11 Dynamic Frequency Selection (DFS)
- Cyclic Shift Diversity (CSD) support

802.11ac

- 4x4 downlink MU-MIMO with four spatial streams on both 5 GHz radios
- Maximal Ratio Combining (MRC)
- 802.11ac beamforming
- 20, 40, 80, and 80+80 MHz contiguous channels
- PHY data rates up to 3.4 Gbps (dual 4x4:4SS 80 MHz or 4x4:2SS 80+80 MHz contiguous on 5 GHz)
- Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 DFS
- CSD support
- Wi-Fi Protected Access (WPA) 3 support

802.11ax

- 4x4 uplink/downlink MU-MIMO with four spatial streams in 2.4, 5, and 6 GHz*
- Uplink/downlink OFDMA
- Target Wake Time (TWT)
- BSS coloring
- Maximal Ratio Combining (MRC)
- 802.11ax beamforming
- 20, 40, 80, and 160 MHz channels (5/6 GHz radio)
- 20, 40, 80, 80+80 MHz contiguous (limited to 4x4:2SS) channels (5 GHz radio)
- 20 MHz channels (2.4 GHz radio)
- PHY data rates up to 7.8 Gbps (4x4 160 MHz on 6 GHz, 4x4 80 MHz on 5 GHz, and 4x4 20 MHz on 2.4 GHz)
- Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
- 802.11 DFS
- CSD support
- WPA3 support

Antennas

-  8x N-type antenna ports
-  1x TNC GNSS antenna port
-  Certified for use with antenna gains up to 13 dBi (2.4 GHz) and 19 dBi (5 GHz).
-  Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios.
-  Supports Self-Identifiable Antennas (SIA)

Interfaces

- 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)/M12 X-code autosensing PoE+ in (802.3at/bt), UPOE in
- 1x SFP (copper) 100M/1000M/10G Multigigabit Ethernet /M12 X-code
OR 1x SFP (fiber) 1G/10G
- Management console port (RJ-45)
- Multicolor system LED
- DC power input (micro-fit/M12 A-code)
- Reset button
Note: PG 13.5 glands or M12 adapters shall be used with Ethernet and power interfaces to maintain IP67 rating.

Dimensions (W x L x H)

- 29.2 x 26.7 x 7.1 cm

Weight

- 4.2 kg

Input power requirements

- 802.3at (PoE+), 802.3bt (PoE++), Cisco Universal PoE (Cisco UPOE ®)
- DC power source: 24 to 48 VDC (maximum voltage range: 18 to 60 VDC)
- Cisco power AC-DC power adapter, IW-PWRADPT-MFIT4PN=
- Cisco power injector, IW-PWRINJ-60RGD5GE=

Power draw

Note: Power required at the power source equipment (PSE) will depend on the cable length and other environmental issues.

Surge

-  DC power input
  ◦ EN50121-4, ± 2 kV (line-earth) and ± 1 kV (line-line)
  ◦ AREMA, ± 1 kV (line-earth) and ± 1 kV (line-line)
  ◦ CISPR35, ± 0.5 kV (line-earth)
-  Surge protection to ± 2 kV on Ethernet ports
-  Surge protection to ± 1 kV on SFP copper port with shielded cable

Environmental

-  Nonoperating (storage) temperature: -40° to +85°C
-  Nonoperating (storage) altitude test: +25˚C (77˚F), 17,000 ft.
-  Operating temperature: -40° to +65°C with solar load and still air
-  Extended operating temperature (DC powered): -58° to +158°F (-50° to +70°C) without solar loading, still air, and cold start limited to -40°C
-  Operating type test: +85°C for 16 hours
-  Operating humidity: 0% to 100% (condensing)
-  Operating altitude: 15,000 ft. (4,500 m)
-  Wind resistance: Up to 160 mph (257 km/h) sustained winds

Environmental ratings

- EN/IEC 60529 (IP66 and IP67)

System memory

- 2048 MB DRAM
- 1024 MB flash
