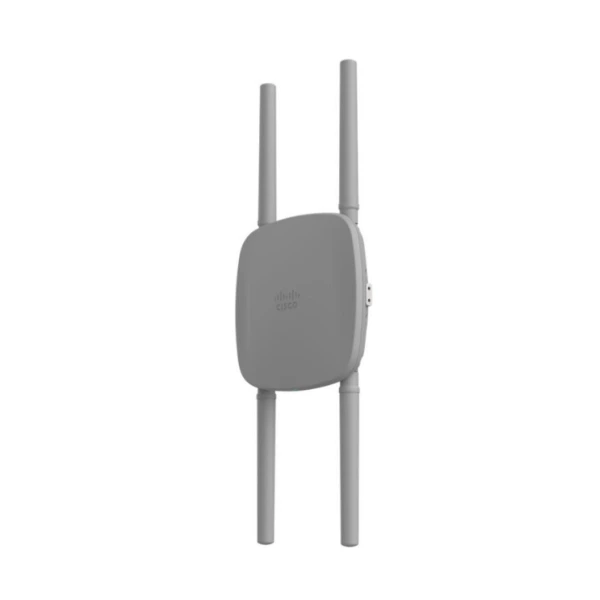

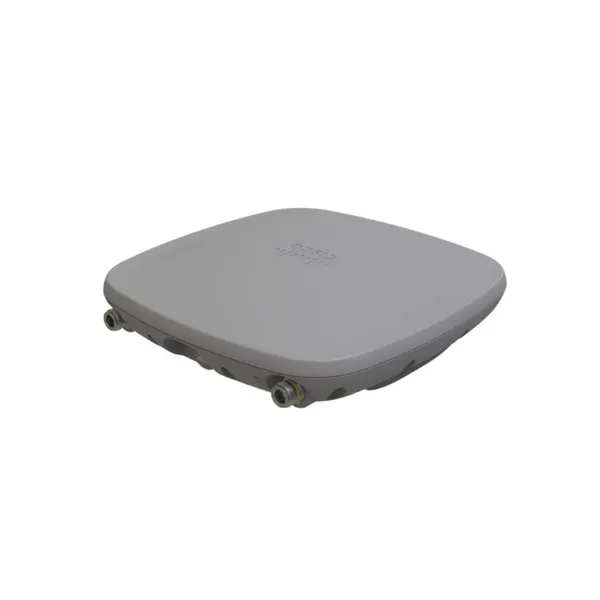

Cisco CW9163E-ROW – Bộ phát Wifi

Model

CW9163E-ROW

Software

-  Cisco IOS ® XE Software Release 17.13.1 or later

Supported wireless controllers

-  Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)

802.11n version 2.0 (and related) capabilities

-  2x2 MIMO with two spatial streams
-  Maximal Ratio Combining (MRC)
-  802.11n and 802.11a/g
-  20- and 40-MHz channels
-  PHY data rates up to 750 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
-  Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
-  802.11 Dynamic Frequency Selection (DFS)
-  Cyclic Shift Diversity (CSD) support

802.11ac

-  2x2 downlink MU-MIMO with two spatial streams
-  MRC
-  802.11ac beamforming
-  20-, 40-, 80-, and 160-MHz channels
-  PHY data rates up to 1.7 Gbps (2x2 80+80 MHz on 5 GHz)
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  802.11 DFS
-  CSD support
-  Wi-Fi Protected Access (WPA) 3 support

802.11ax

-  1024-QAM
-  2x2 uplink/downlink MU-MIMO with four spatial streams (2.4 GHz, 5 GHz, and 6 GHz)
-  Uplink/downlink OFDMA
-  TWT
-  BSS coloring
-  MRC
-  802.11ax beamforming
-  20-, 40-, 80-, and 160-MHz channels (6 GHz)
-  20-, 40-, 80-, and 80+80-MHz channels (5 GHz)
-  20-MHz channels (2.4 GHz)
-  PHY data rates up to 3.9 Gbps (2x2 160 MHz on 6 GHz, 2x2 80 MHz on 5 GHz, and 2x2 20 MHz on 2.4 GHz)
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  802.11 DFS
-  CSD support
-  WPA3 support

Antennas

CW-ANT-O1-NS-00 Omnidirectional Dipole Self-Identifying Antenna with N-Type Connector
-  2.4 GHz: Peak gain 4 dBi, omnidirectional in azimuth
-  5 GHz: Peak gain 8 dBi, omnidirectional in azimuth
-  6 GHz: Peak gain 8 dBi, omnidirectional in azimuth

Interfaces

-  1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45)
-  Management console port (RJ-45)
-  4x N-Type Wi-Fi antenna connectors
-  RP-SMA active GPS/GNSS antenna connector

Indicators

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

-  Access point (without mounting brackets): 245 x 245 x 63.5 mm

Weight

-  1.5 kg

Input power requirements

-  802.3at Power over Ethernet Plus (PoE+), 802.3af Power over Ethernet (PoE)
-  Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6

Environmental

-  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
-  Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m)
-  Operating temperature: -40° to 149°F (-40° to 65°C) without solar derating
-  Operating temperature: -40° to 131°F (-40° to 55°C) with solar derating
-  Operating humidity: 5% to 95% (noncondensing)
-  Operating altitude test: 40°C (104°F) at 9843 ft (3000 m)

System memory

-  2048 MB DRAM
-  1024 MB flash

Available transmit power settings

2.4 GHz
-  23 dBm (200 mW)
-  -4 dBm (0.39 mW)
5 GHz
-  23 dBm (200 mW)
-  -4 dBm (0.39 mW)
6 GHz
-  23 dBm (200 mW)
-  -4 dBm (0.39 mW)

Certifications

-  Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security
-  Bluetooth SIG: Bluetooth Low Energy (BLE)
