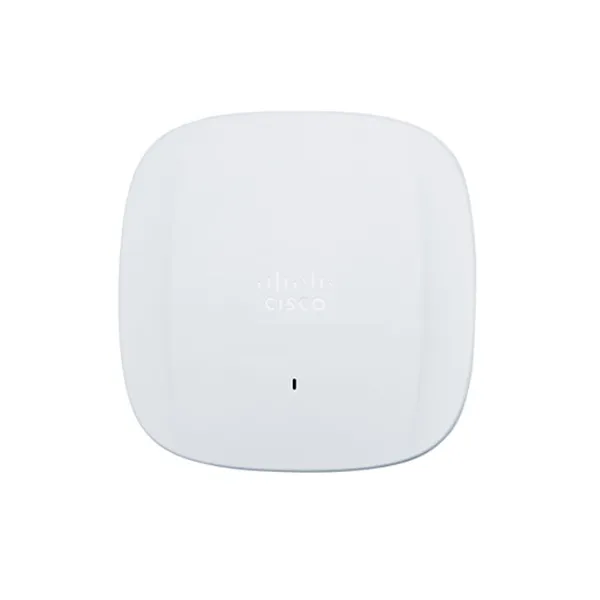

Cisco CW9162I-ROW – Bộ phát Wifi

Part numbers

 CW9162I-ROW (Rest Of World)

Software

 Cisco IOS XE Software Release 17.9.2/17.10.1 or later

Supported wireless controllers

 Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)

802.11n version 2.0 (and related) capabilities

 -  2x2 MIMO with two spatial streams
 -  Maximal Ratio Combining (MRC)
 -  802.11n and 802.11a/g
 -  20- and 40-MHz channels
 -  PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
 -  Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
 -  802.11 Dynamic Frequency Selection (DFS)
 -  Cyclic Shift Diversity (CSD) support

802.11ac

 -  2x2 downlink MU-MIMO with two spatial streams
-  MRC
-  802.11ac beamforming
-  20-, 40-, and 80-MHz channels
-  PHY data rates up to 866.7 Mbps (2x2 80 MHz on 5 GHz)
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  802.11 DFS
-  CSD support
-  Wi-Fi Protected Access (WPA) 3 support

802.11ax

-  2x2 uplink/downlink MU-MIMO with two spatial streams (6 GHz)
-  2x2 downlink MU-MIMO with two spatial streams (2.4 GHz and 5 GHz)
-  Uplink/downlink OFDMA
-  TWT
-  BSS coloring
-  MRC
-  802.11ax beamforming
-  20-, 40-, 80-, and 160-MHz channels (6 GHz)
-  20-, 40-, and 80-MHz channels (5 GHz)
-  20-MHz channels (2.4 GHz)
-  PHY data rates up to 3.9 Gbps (2x2 160 MHz on 6 GHz, 2x2 80 MHz on 5 GHz, and 2x2 20 MHz on 2.4 GHz)
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  802.11 DFS
-  CSD support
-  WPA3 support

Integrated antenna

-  2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
-  5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
-  6 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth

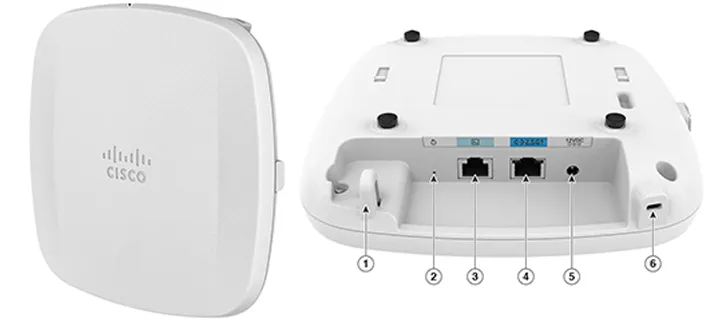

Interfaces

-  1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45) port
-  Management console port (RJ-45)
-  USB 2.0 at 4.5W

Indicators

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

-  Access point (without mounting brackets):
◦      7.8 x 7.8 x 1.7 in. (200 x 200 x 44.45 mm)

Weight

-  2.05 lb. (0.93 kg)

Input power requirements

-  802.3bt, Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+)
-  Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6
-  802.3af PoE (for 802.3af, see the matrix below for radio configuration)
-  DC power input (12V/ MA-PWR-30W)

Environmental

-  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
-  Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m)
-  Operating temperature: 32° to 122°F (0° to 50°C)
-  Operating humidity: 10% to 90% (noncondensing)
-  Operating altitude test: 40°C (104°F) at 9843 ft (3000 m)

System memory

-  2048 MB DRAM
-  1024 MB flash

Available transmit power settings

 2.4 GHz:

 -  20 dBm (100 mW)
-  -7 dBm (0.20 mW)

5 GHz:

-  20 dBm (100 mW)
-  -7 dBm (0.20 mW)

6 GHz:

-  20 dBm (100 mW)
-  -7 dBm (0.20 mW)

Compliance standards

-  Safety:
◦      IEC 60950-1 / IEC 62368-1 Ed.3
(with Ed.2 Deviation annex)

◦      EN 60950-1 / EN 62368-1 Ed.3
(with Ed.2 Deviation annex)

◦      UL 60950-1 / UL62368-1 3rd
(with Ed.2 Deviation annex)

◦      CAN/CSA-C22.2 No. 60950-1 / CAN/CSA-C22.2 No. 62368-1 3rd
(with Ed.2 Deviation annex)

◦      AS/NZS60950.1 / AS/NZS62368.1 Ed.3
(with Ed.2 Deviation annex)

◦      UL 2043

◦      Class III equipment

-  Emissions:
◦      CISPR 32 (rev. 2015) +AMD1:2019

◦      EN 55032:2015/A11:2020

◦      EN IEC 61000-3-2:2019/A1:2021

◦      EN61000-3-3:2013+A1:2019

◦      AS/NZS CISPR32: 2015+AMD1:2020

◦      47 CFR FCC Part 15B

◦      ICES-003 (Issue 7, Class B)

◦      VCCI-CISPR 32:2016

◦      CNS 13438:2006 (95)

◦      KS C 9832:2019

-  Immunity:
◦      EN 55035: 2017+A11:2020

◦      KS C 9835:2019

-  Emissions and immunity:
◦      EN 301 489-1 V2.2.3 (2019-11)

◦      EN 301 489-17 V3.2.4 (2020-09)

◦      QCVN 112:2017/BTTTT

◦      KS X 3124:2020

◦      KS X 3126:2020

◦      EN 61000-6-1: 2019

-  Radio:
◦      EN 300 328 (v2.2.2)

◦      EN 301 893 (v2.1.1)

◦      EN 303 687 (v0.0.14, draft)

◦      AS/NZS 4268 (rev. 2017)

◦      47 CFR FCC Part 15C, 15.247, 15.407

◦      RSP-100

◦      RSS-GEN

◦      RSS-247

◦      LP002

◦      Japan Std. 66, and Std. 71

-  RF safety:
◦      EN 50385:2017

◦      EN 62311:2020

◦      AS/NZS 2772.2 (rev. 2016)

◦      47 CFR Part 2.1091

◦      RSS-102

◦      IEEE standards:

◦      IEEE 802.3

◦      IEEE 802.3ab

◦      IEEE 802.3af/at/bt

◦      IEEE 802.11a/b/g/n/ac/ax

◦      IEEE 802.11h, 802.11d

-  Security:
◦      WPA2-Personal (802.11i)

◦      WPA2-Enterprise with 802.1X

◦      WPA3-Personal, WPA3-Enterprise

◦      WPA3-Enhanced Open (OWE)

◦      Advanced Encryption Standard (AES)

-  Extensible Authentication Protocol (EAP) types:
◦      EAP-Transport Layer Security (TLS)

◦      EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2

◦      Protected EAP (PEAP) v0 or EAP-MSCHAP v2

◦      EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)

◦      PEAP v1 or EAP-Generic Token Card (GTC)

◦      EAP-Subscriber Identity Module (SIM)
