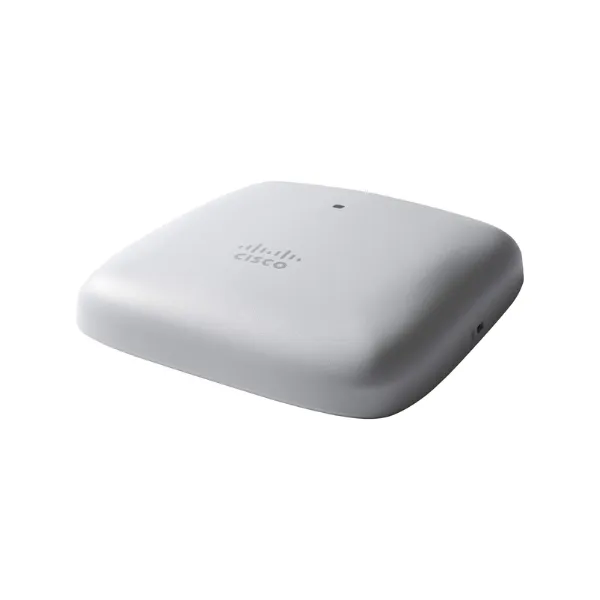

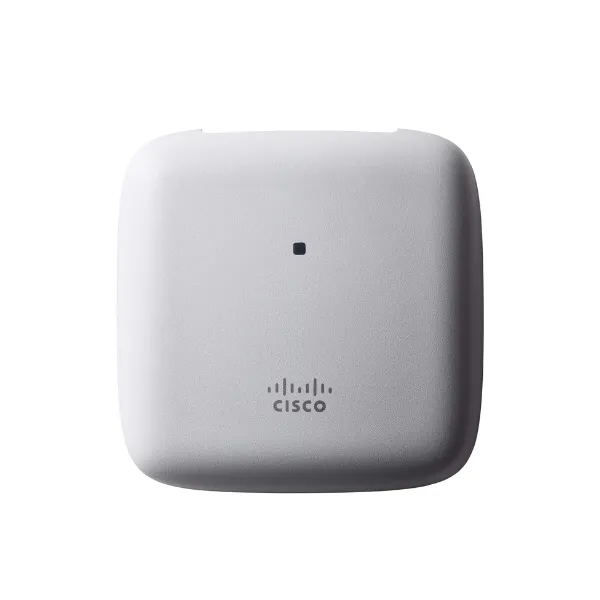

Cisco CBW240AC-E – Bộ phát Wifi

Model

CBW240AC-E

Authentication and security

-  Wi-Fi Protected Access 2 and 3 (WPA2 and WPA3)

-  802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)

-  802.11r and 802.11i

Maximum clients

-  Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point

Max # of Mesh Extenders

-  Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

802.11ac

-  2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps

-  20-, 40-, and 80-MHz channels

-  Dynamic Frequency Selection (DFS)

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)

802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)

Available transmit power settings

2.4 GHz

Up to 20 dBm

5 GHz

Up to 20 dBm

Integrated antennas

-  2.4 GHz, gain 2 dBi

-  5 GHz, gain 3 dBi

Interfaces

-  1x Gigabit Ethernet uplink (10/100/1000BASE-T autosensing), PoE

-  3x Gigabit Ethernet local ports (10/100/1000BASE-T), including one PoE out port:

◦      PoE out provides 802.3af (Class 0) when access point is powered by 802.3at, or no output when powered by 802.3af

-  One passive pass-through port, RJ-45 (back to bottom)

Indicators

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions
(W x L x H)

-  Access point (without mounting bracket): 3.5 x 5.5 x 1.25 in. (89 x 140 x 31.5 mm)

Weight

-  Access point without mounting bracket or any other accessories: 10 oz (280 g)

Environmental

-  Operating

◦      Temperature: 32° to 104°F (0° to 50°C)

◦      Humidity: 10% to 90% (noncondensing)

◦      Maximum altitude: 9843 ft (3000 m) at 40°C

-  Nonoperating (storage and transportation)

◦      Temperature: -22° to 158°F (-30° to 70°C)

◦      Humidity: 10% to 90% (noncondensing)

◦      Maximum altitude: 15,000 ft (4500 m) at 25°C

System

-  1 GB DRAM

-  256 MB flash

-  710-MHz quad-core processor

Powering options

-  802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended

-  Optional Cisco Business PoE injector (CB-PWRINJ-xx)

Power draw

-  8.5W (maximum, without PoE out)

Physical security

-  Torx security screw, included with the access point

-  Kensington lock slot to lock device to mounting bracket

Mounting

-  Bracket is included with the access point

Warranty

Cisco Business limited lifetime hardware warranty

Free software updates, no service contract required
