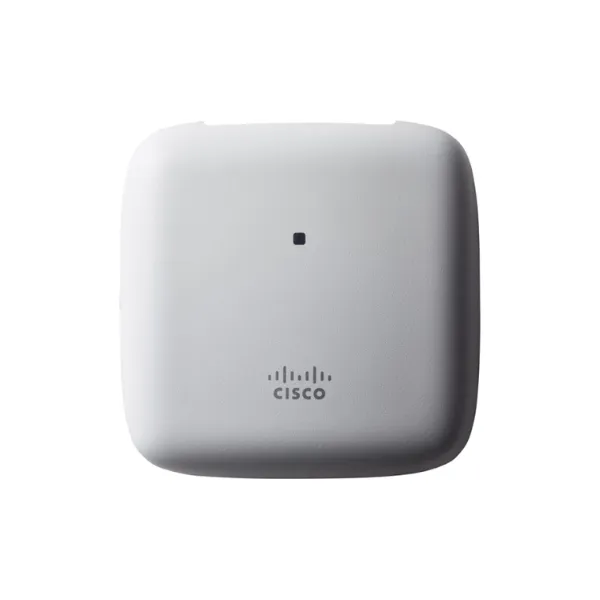

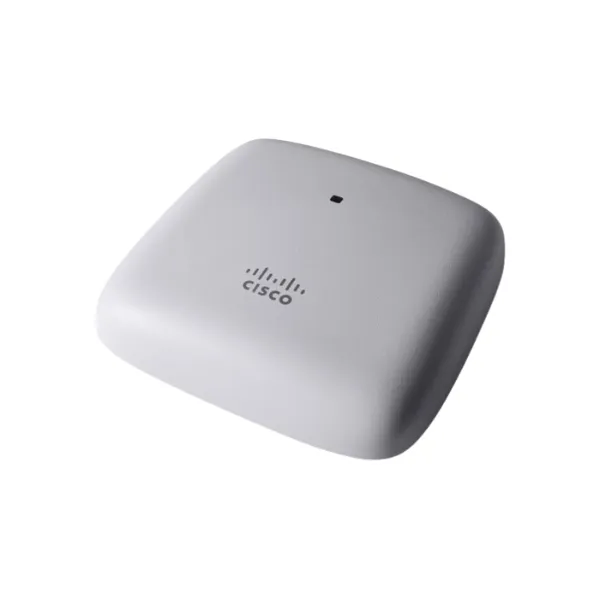

Cisco CBW140AC-E – Bộ phát Wifi

Model

CBW140AC-E

Authentication and security

-  Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release

-  802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)

-  Segmentation via VLANs (up to 16)

-  802.11r and 802.11i

-  Guest network can also authenticate against: Google and Facebook

Maximum clients

-  Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system

Maximum # of Access Points

-  50

-  Recommended up to 25

Max # of Mesh Extenders

-  Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

802.11ac

-  2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz

-  20-, 40-, and 80-MHz channels

-  Dynamic Frequency Selection (DFS)

Ethernet ports

-  Authentication with 802.1X or MAC filtered

-  Dynamic VLAN or per port

-  Traffic locally switched or tunneled back to Master AP

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)

802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)

Available transmit power settings

2.4 GHz

Up to 20 dBm

5 GHz

Up to 20 dBm

Integrated antennas

-  2.4 GHz, gain 2 dBi

-  5 GHz, gain 4 dBi

Interfaces

-  1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)

-  RJ-45 console port (not functional)

Indicators

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

-  Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm)

Weight

-  Access point without mounting bracket or any other accessories: 14 oz (400 g)

Environmental

-  Operating

◦      Temperature: 32° to 104°F (0° to 50°C)

◦      Humidity: 10% to 90% (noncondensing)

◦      Maximum altitude: 9843 ft (3000 m) at 40°C

-  Nonoperating (storage and transportation)

◦      Temperature: –22° to 158°F (-30° to 70°C)

◦      Humidity: 10% to 90% (noncondensing)

◦      Maximum altitude: 15,000 ft (4500 m) at 25°C

System

-  1 GB DRAM, 256 MB flash

-  710-MHz quad core processor

Powering options

-  802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended

-  Optional Cisco Business PoE injector

Power draw

-  8.3W (maximum, on PoE)

Mounting and physical security

Included with the access point:

-  Mounting bracket

-  Torx security screw

-  Ceiling rail mount clip

Warranty

Cisco Business limited lifetime hardware warranty

Free software updates, no service contract required
