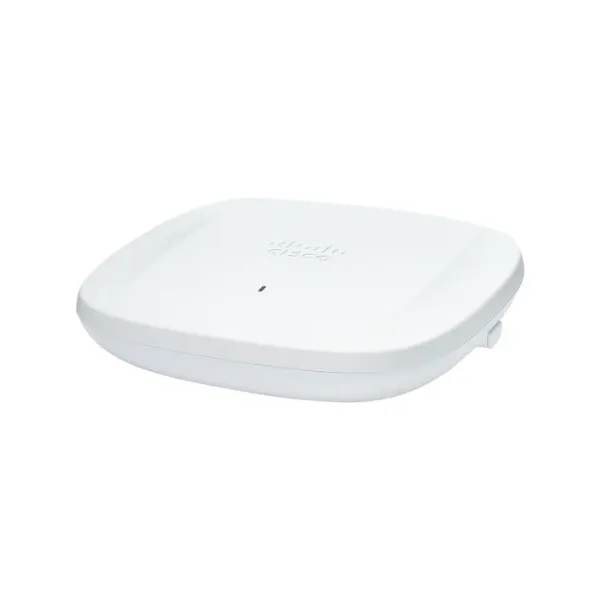

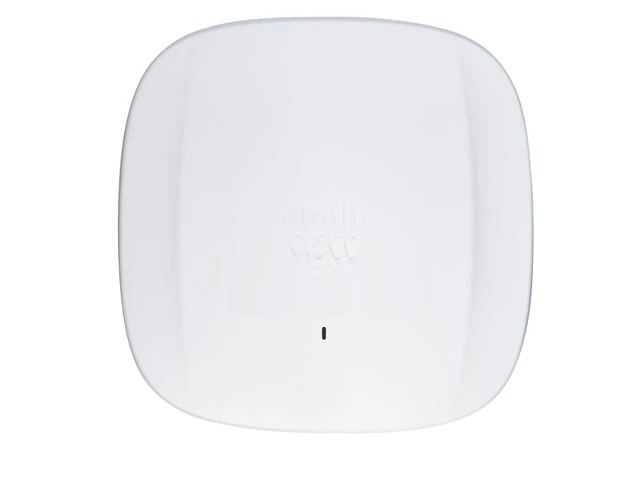

Cisco C9136I-ROW – Bộ phát Wifi

Model

C9136I-ROW

Software

●  Cisco IOS ^® XE Software Release 17.7.1 or later

Supported wireless LAN controllers

●  Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)

802.11n version 2.0 (and related) capabilities

●  4x4 MIMO with four spatial streams

●  Maximal Ratio Combining (MRC)

●  802.11n and 802.11a/g

●  20- and 40-MHz channels

●  PHY data rates up to 1.5 Gbps (40 MHz with 5-GHz and 20 MHz with 2.4-GHz)

●  Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic Shift Diversity (CSD) support

802.11ac

●  8x8 downlink MU-MIMO with eight spatial streams

●  MRC

●  802.11ac beamforming

●  20-, 40-, 80-, and 160-MHz channels

●  PHY data rates up to 3.4 Gbps (8x8 80 MHz or dual 4x4 80+80 MHz on 5-GHz)

●  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

●  802.11 DFS

●  Cyclic Shift Diversity (CSD) support

●  Wi-Fi Protected Access (WPA) 3 support

802.11ax

●  8x8 uplink/downlink MU-MIMO with eight spatial streams (5-GHz)

●  4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6-GHz)

●  Uplink/downlink OFDMA

●  TWT

●  BSS coloring

●  MRC

●  802.11ax beamforming

●  20-, 40-, 80-, and 160-MHz channels (6-GHz)

●  20-, 40-, 80-, 80+80-MHz (5-GHz)

●  20-MHz channels (2.4-GHz)

●  PHY data rates up to 10.2 Gbps (4x4 160 MHz on 6 GHz, 8x8 80 MHz on 5-GHz, and 4x4 20 MHz on 2.4-GHz)

●  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

●  802.11 DFS

●  CSD support

●  WPA3 support

Integrated antenna

●  2.4-GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth

●  5-GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth

●  6-GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth

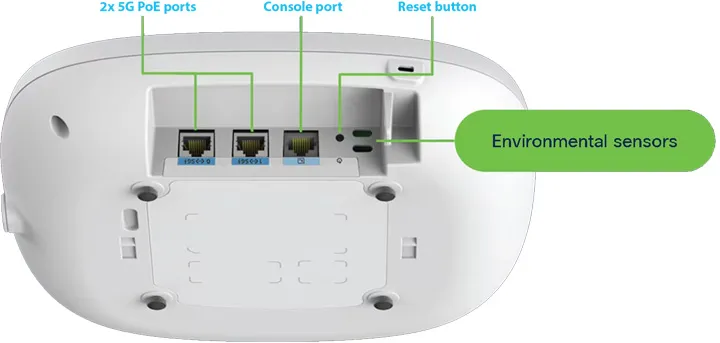

Interfaces

●  2x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)

●  Management console port (RJ-45)

●  USB 2.0 at 9W

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

●  Access point (without mounting brackets):

◦      9.9 x 9.9 x 2.2 in. (25.1 x 25.1 x 5.6 cm)

Weight

●  3.6 lb. (1.65 kg)

Input power requirements

●  802.3bt Cisco Universal PoE (Cisco UPOE ^®), 802.3at Power over Ethernet Plus (PoE+)

●  Cisco power injector, AIR-PWRINJ7=

●  802.3af PoE (only for configuration staging, all radios off)

Catalyst 9136I

PoE power consumption

2.4-GHz radio

5-GHz radio

6-GHz radio

Link speed

USB

Link Layer Discovery Protocol (LLDP)

802.3bt (UPOE)

4x4

8x8

4x4

2x 5G

Y (9W)

47.3W

802.3at (PoE+)

2x2

2x2

4x4

1x 2.5G

N

24.4W

802.3af (PoE)

–

–

–

1x 1G

N

13.95W

Note: Power required at the Power Source Equipment (PSE) will depend on the cable length and other environmental issues.

Environmental

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
●  Nonoperating (storage) altitude test: 25˚C (77°F) at 15,000 ft (4600 m)
●  Operating temperature: 32° to 122°F (0° to 50°C)
●  Operating humidity: 10% to 90% (noncondensing)
●  Operating altitude test: 40˚C (104°F) at 9843 ft (3000 m)
Note: When the ambient operating temperature exceeds 40°C (104°F), the access point will shift from 8x8 to 4x4 on the 5-GHz radio, and uplink Ethernet will downgrade to a single 1G; however, the USB interface will remain enabled.

System memory

●  2048 MB DRAM

●  1024 MB flash

Available transmit power settings

2.4 GHz

●  23 dBm (200 mW)

●  -4 dBm (0.39 mW)

5 GHz

●  26 dBm (400 mW)

●  -1 dBm (0.79 mW)

6 GHz

●  23 dBm (200 mW)

●  -4 dBm (0.39 mW)

Note: In countries where use of the 6 GHz band is not allowed or there is no current software support, the 6 GHz radio will be disabled. The radio may be enabled with future software, once the product is certified to operate in 6 GHz for that country.
