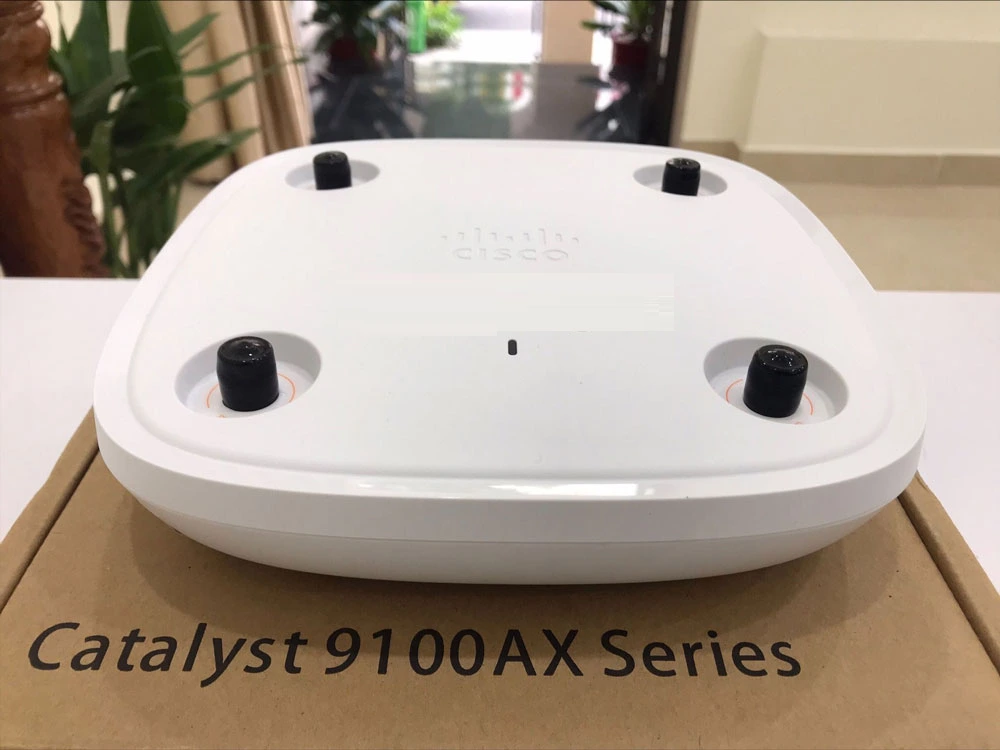

Cisco C9130AXE-STA-S – Bộ phát Wifi

Model

C9130AXE-STA-S

Description

-  Cisco Catalyst 9130AXE-STA Access Point: C9130 AP with C-ANT9104 Stadium antenna

Software

-  Cisco Unified Wireless Network Software Release 8.10 MR1 or later
-  Cisco IOS XE Software Release 17.1.1 or later

Supported wireless LAN controllers

-  Cisco Catalyst 9800 Series Wireless Controllers
-  Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities

-  4x4 MIMO with four spatial streams
-  Maximal Ratio Combining (MRC)
-  802.11n and 802.11a/g
-  20- and 40-MHz channels
-  PHY data rates up to 1.72 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
-  Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
-  802.11 Dynamic Frequency Selection (DFS)
-  Cyclic Shift Diversity (CSD) support

802.11ac

-  8x8 downlink MU-MIMO with eight spatial streams
-  MRC
-  802.11ac beamforming
-  20-, 40-, 80-, and 160-MHz channels
-  PHY data rates up to 4.8 Gbps (160 MHz with 5 GHz)
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  802.11 DFS
-  CSD support

802.11ax

-  8x8 uplink/downlink MU-MIMO with eight spatial streams
-  Uplink/downlink OFDMA
-  TWT
-  BSS coloring
-  MRC
-  802.11ax beamforming
-  20-, 40-, 80-, and 160-MHz channels
-  PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  802.11 DFS
-  CSD support

External antenna with smart antenna connector

-  The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz)
-  Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
-  Supports Self-Identifiable Antennas (SIA) on the smart antenna connector
-  Smart antenna connector is a compact multi-RF connector with 8-DART interface
-  Requires the AIR-CAB002-D8-R= 2 ft smart antenna connector when used with antennas with a RP-TNC connector
-  Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna

Interfaces

-  1 x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3az
-  Management console port (RJ-45)
-  USB 2.0 at 4.5W (enabled via future software)

Indicators

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

-  23.3 x 23.3 x 4.0 cm

Weight

-  1.71 kg

Input power requirements

-  802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE)
-  Cisco power injector, AIR-PWRINJ6=
-  802.3af PoE
-  Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Environmental

-  Nonoperating (storage) temperature: -30° to 70°C
-  Nonoperating (storage) altitude test: 25˚C, 4600 m
-  Operating temperature: -20° to 50°C
-  Operating humidity: 10% to 90% (noncondensing)
-  Operating altitude test: 40˚C, 3000 m

System memory

-  2048 MB DRAM
-  1024 MB flash
