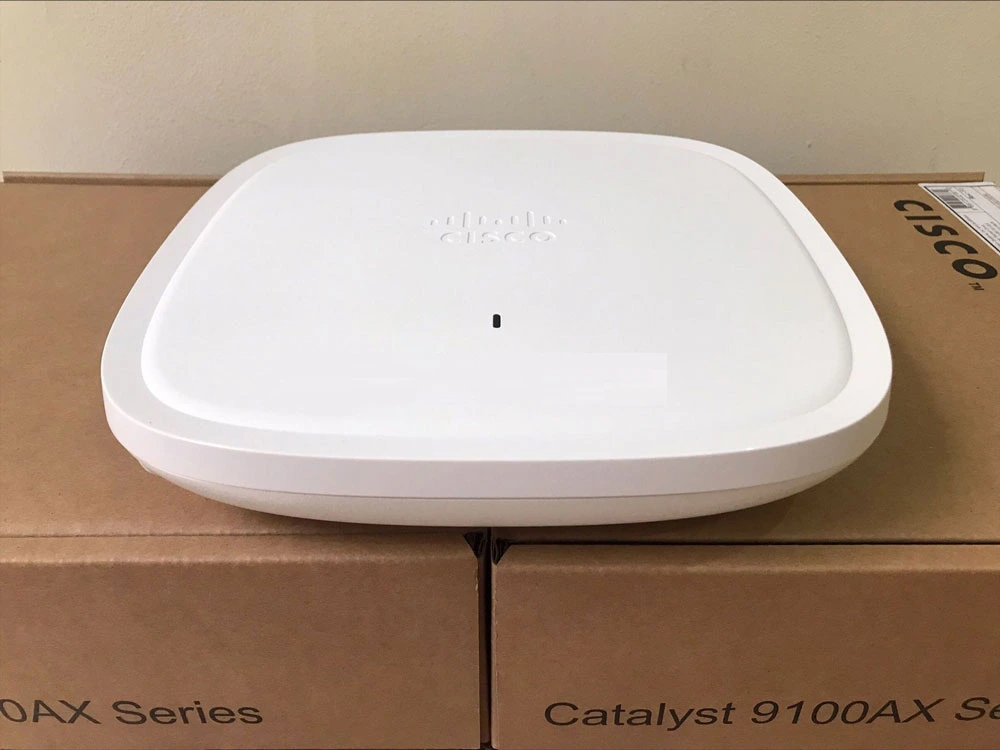

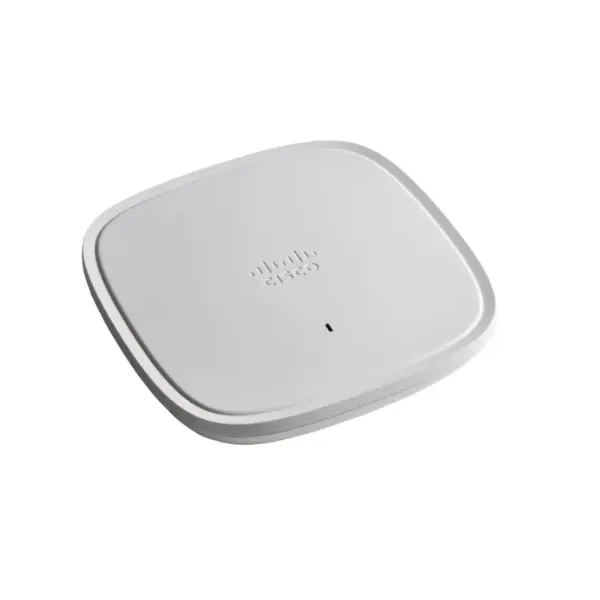

Cisco C9117AXI-S – Bộ phát Wifi

Model

C9117AXI-S

Description

-  Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, S Domain

Software

-  Cisco Unified Wireless Network Software Release 8.9 or later
-  Cisco IOS ® XE Software Release 16.11 or later

Supported wireless LAN controllers

-  Cisco Catalyst 9800 Series Wireless Controllers
-  Cisco 3500, 5520, and 8540 Series Wireless Controllers, and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities

-  8x8 MIMO with four spatial streams for 5-GHz band
-  4x4 MIMO with four spatial streams for 2.4-GHz band
-  Maximal Ratio Combining (MRC)
-  20- and 40-MHz channels
-  PHY data rates up to 600 Mbps (40 MHz with 5 GHz)
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  Cyclic Shift Diversity (CSD) support

802.11ac

-  8x8 downlink MU-MIMO with eight spatial streams
-  MRC
-  802.11ac beamforming
-  20-, 40-, 80, and 160-MHz channels
-  PHY data rates up to 3.5 Gbps at 5 GHz
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  CSD support

802.11ax

-  8x8 MIMO with eight spatial streams for 5-GHz band
-  4x4 MIMO with four spatial streams for 2.4-GHz band
-  Downlink OFDMA
-  TWT
-  MRC
-  802.11ax beamforming
-  20-, 40-, 80, and 160-MHz channels
-  PHY data rates up to 5 Gbps at 5 GHz
-  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
-  CSD support

Integrated antenna

-  2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
-  5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth

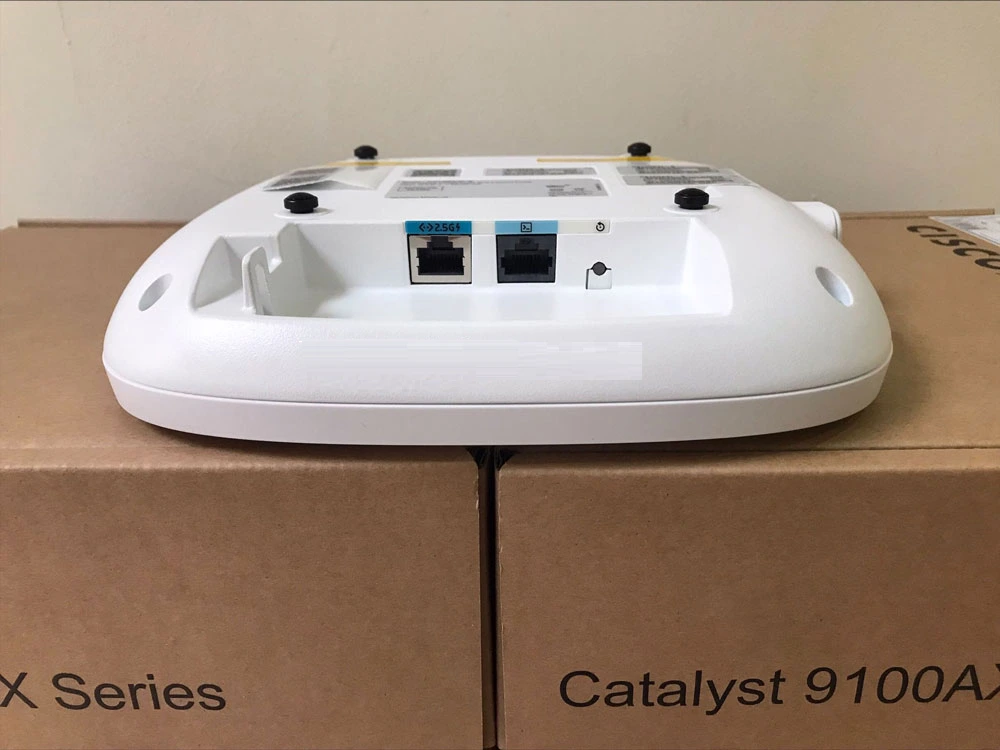

Interfaces

-  1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
-  Management console port (RJ-45)
-  USB 2.0 with up to 3.75W (enabled via future software)

Indicators

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

-  Access point (without mounting bracket and mounting features): 22 x 22 x 4.93 cm)
-  Access point (without mounting bracket): 22 x 22 x 5.56 cm

Weight

-  1.4 kg

Input power requirements

-  802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)
-  Cisco power injector, AIR-PWRINJ6=
-  802.3af PoE
-  Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)
Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 2.5 Gbps; in addition, the USB port will be off.

Environmental

-  Non operating (storage) temperature: -30° to 70°C
-  Non operating (storage) altitude test: 25˚C, 15,000 ft.
-  Operating temperature: 0° to 50°C
-  Operating humidity: 10% to 90% (noncondensing)
-  Operating altitude test: 40˚C, 9843 ft.

System memory

-  2048 MB DRAM
-  1024 MB flash
