Part Number |
C9115AXE-S |
Description
|

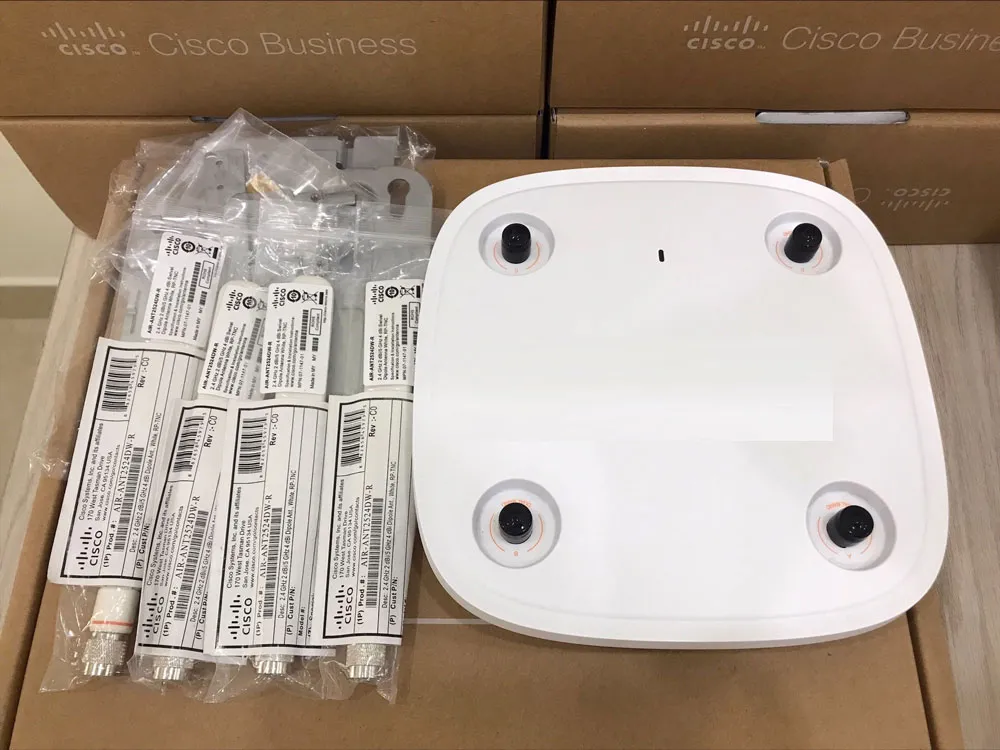

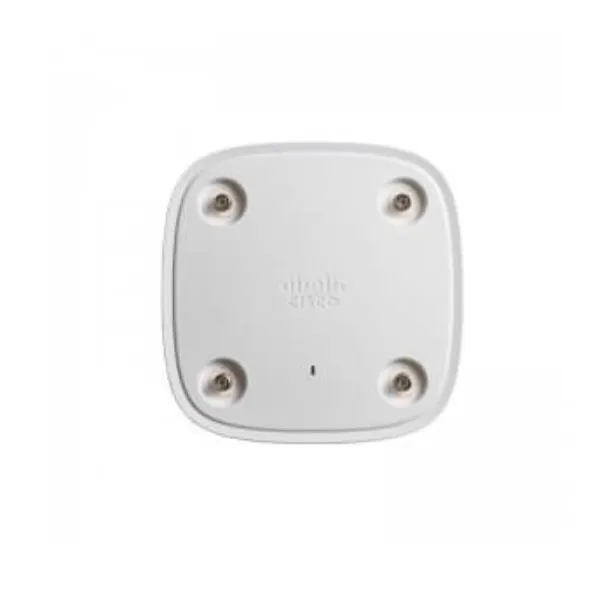

Cisco Catalyst 9115AX Access Point, External Antennas; Wi-Fi 6; 4x4:4 MIMO, S Domain
|
Software
|
Cisco Unified Wireless Network Software Release 8.9 or later
Cisco IOS ® XE Software Release 16.11 or later
|
Supported wireless LAN controllers
|
Cisco Catalyst 9800 Series Wireless Controllers
Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
|
802.11n version 2.0 (and related) capabilities
|
4x4 MIMO with four spatial streams
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
|
802.11ac
|
4x4 downlink MU-MIMO with four spatial streams
MRC
802.11ac beamforming
20-, 40-, 80-, and 160-MHz channels
PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS
CSD support
|
802.11ax
|
4x4 downlink MU-MIMO with four spatial streams
Uplink/downlink OFDMA
TWT
BSS coloring
MRC
802.11ax beamforming
20-, 40-, 80-, and 160-MHz channels
PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS
CSD support
|
Integrated antenna
|
2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth
5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
|
External antenna (sold separately)
|
Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
|
Interfaces
|
1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
Management console port (RJ-45)
USB 2.0 (enabled via future software)
|
Indicators
|
Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
|
Dimensions (WxLxH)
|
Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E: 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm)
|
Input power requirements
|
802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)
Cisco power injector, AIR-PWRINJ6=
802.3af PoE
Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)
Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.
|
Environmental
|
Cisco Catalyst 9115AXE
Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
Operating temperature: -4° to 122°F (-20° to 50°C)
Operating humidity: 10% to 90% (noncondensing)
Operating altitude test: 40˚C, 9843 ft.
Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.
|
System memory
|
2048 MB DRAM
1024 MB flash
|
Available transmit power settings
|
2.4 GHz
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
-1dBm (0.79mW)
-4dBm (0.39mW)
5 GHz
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
-1dBm (0.79mW)
-4dBm (0.39mW)
|
Frequency band and 20-MHz operating channels
|
S (S regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
● 5.745 to 5.825 GHz; 5 channels
|
