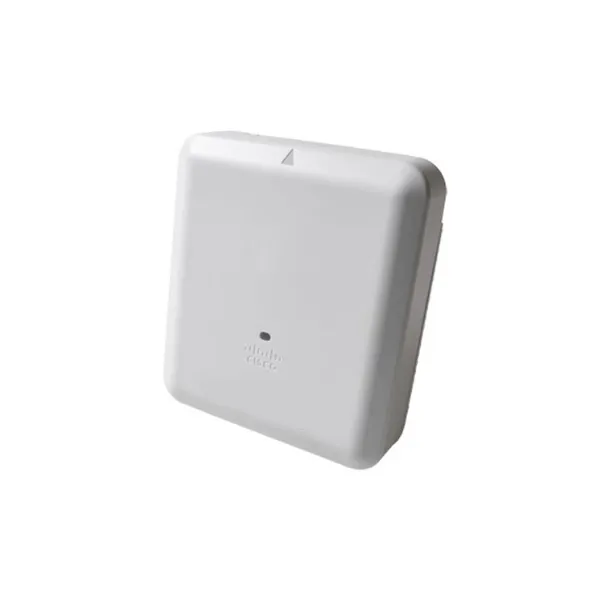

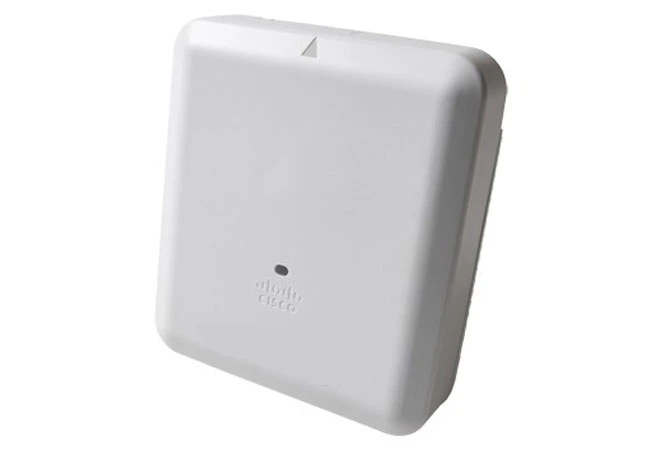

Cisco AIR-AP4800-S-K9 – Bộ phát Wifi

Part Number

AIR-AP4800-S-K9

Description

802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -S Domain

Software and supported wireless LAN controllers

-  Cisco Unified Wireless Network Software Release 8.7 or later

-  Cisco 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, Cisco 9800 series Wireless Controllers

-  Cisco IOS ® XE Software Release 16.9

-  Cisco Catalyst ® 3850 Series and 3650 Series Switches

802.11n version 2.0 (and related) capabilities

-  4x4 MIMO with three spatial streams

-  Maximal Ratio Combining (MRC)

-  802.11n and 802.11a/g beamforming

-  20- and 40-MHz channels

-  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

-  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

-  802.11 Dynamic Frequency Selection (DFS)

-  Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities

-  4x4 MIMO with three spatial streams

-  MRC

-  802.11ac beamforming

-  20-, 40-, and 80-MHz channels

-  PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

-  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

-  802.11 DFS

-  CSD support

802.11ac Wave 2 capabilities

-  4x4 MU-MIMO with three spatial streams

-  MRC

-  802.11ac beamforming

-  20-, 40-, 80, 160-MHz channels

-  PHY data rates up to 5.2 Gbps

-  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

-  802.11 DFS

-  CSD support

Wi-Fi Alliance certifications

-  Wi-Fi Certified a, b, g, n, ac

-  Wi-Fi Vantage

-  Wi-Fi Multimedia (WMM)

-  Passpoint

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)

-  2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth

-  5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°

Dedicated 5-GHz radio

-  5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth

Third dedicated radio

-  2.4 GHz and 5 GHz capable

-  Hyperlocation antenna array

BLE radio

-  2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth

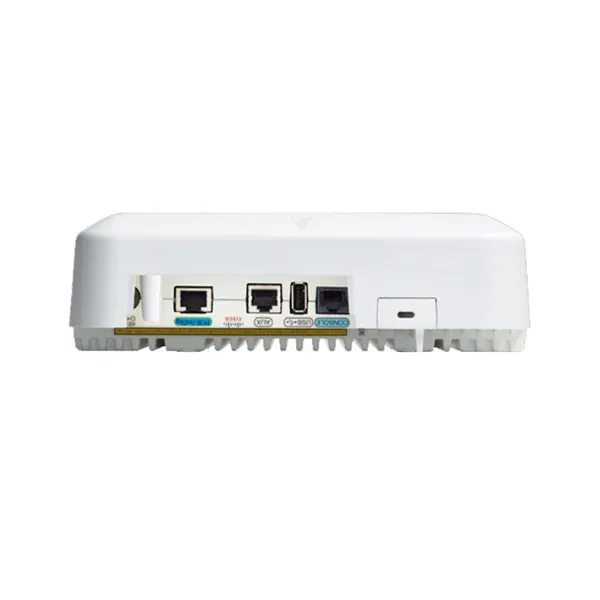

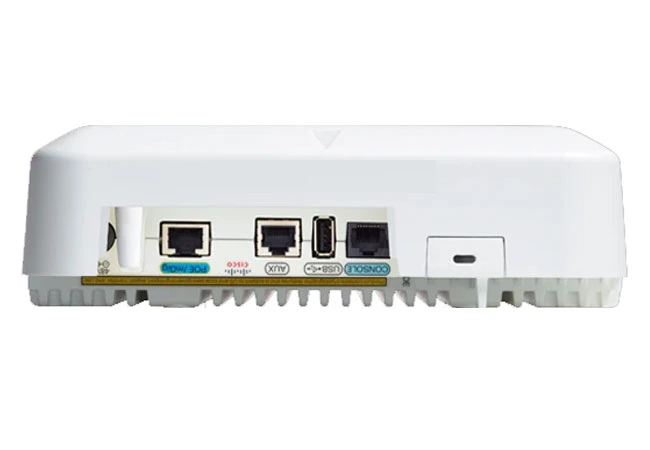

Interfaces

-  2 Ethernet ports

-  100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

-   Category 5e cabling

-   Higher-quality 10GBASE-T (Category 6/6a) cabling

-  100/1000BASE-T autosensing (RJ-45 AUX port)

-  Management console port (RJ-45)

Indicators

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

-  Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm)

Weight

-  5.6 lb (2.5 kg)

Input power requirements

-  802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE ®)

-  802.3at power injector (AIR-PWRINJ6=)

-  50W power supply (AIR-PWR-50=)

Power draw

-  30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support

-  31W at the PSE with full functionality

Environmental

-  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

-  Nonoperating (storage) altitude test: 25˚C, 15,000 ft

-  Operating temperature: 32° to 104°F (0° to 40°C)

-  Operating humidity: 10% to 90% percent (noncondensing)

-  Operating altitude test: 40˚C, 9843 ft. (noncondensing)

System memory

-  1024 MB DRAM

-  256 MB flash

Available transmit power settings

2.4 GHz

-  23 dBm (200 mW)

-  20 dBm (100 mW)

-  17 dBm (50 mW)

-  14 dBm (25 mW)

-  11 dBm (12.5 mW)

-  8 dBm (6.25 mW)

-  5 dBm (3.13 mW)

-  2 dBm (1.56 mW)

5 GHz

-  23 dBm (200 mW)

-  20 dBm (100 mW)

-  17 dBm (50 mW)

-  14 dBm (25 mW)

-  11 dBm (12.5 mW)

-  8 dBm (6.25 mW)

-  5 dBm (3.13 mW)

-  2 dBm (1.56 mW)

Frequency band and 20-MHz operating channels

S (S regulatory domain):

-  2.412 to 2.472 GHz; 13 channels

-  5.180 to 5.320 GHz; 8 channels

-  5.500 to 5.700 GHz;, 11 channels

-  5.745 to 5.825 GHz; 5 channels
